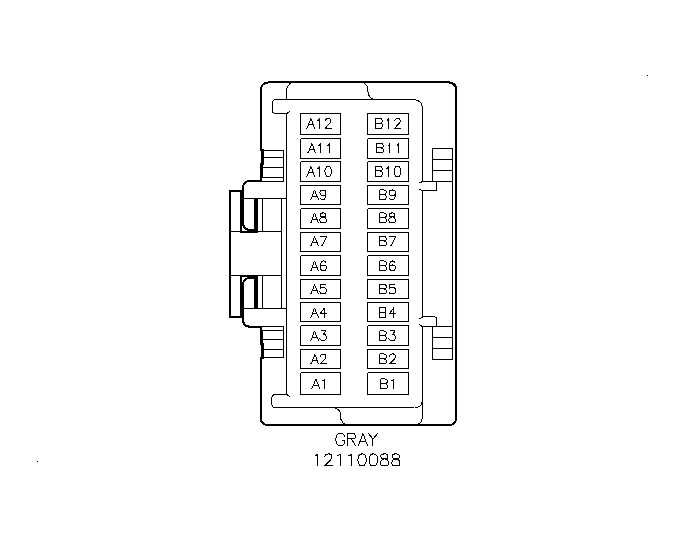

Body Control Module (BCM) Connector End View C2
Body Control Module (BCM) C2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A1 | L-GN | 867 | ABS Indicator Failure Control |
| A2 | L-BU | 1134 | Park Brake Switch Signal |
| A3 | D-BU | 1201 | Headlamp Low Beam Ground |
| A4 | WH | 1579 | Oil Life Reset Switch Signal |
| A5 | PU | 333 | Brake Fluid Level Sensor Signal |
| A6 | BN | 96 | Windshield Wiper Switch Pulse Delay Signal |
| A7 | L-BU | 832 | Traction Control Active Signal |
| A8 | PK | 94 | Rear Wiper Switch Signal |
| A9 | RD | 228 | Windshield Washer Pump Signal |
| A10 | PK | 339 | Ignition 1 Voltage |
| A11 | L-GN | 80 | Key In Ignition Switch Signal |
| A12 | BK/WH | 746 | Right Front Door Ajar Switch Signal |
| B1 | D-GN | 264 | Security Indicator Supply Voltage |
| B2 | GY/BK | 745 | Left Front Door Ajar Switch Signal |
| B3 | L-BU | 292 | Rear Defog Switch Signal |
| B4 | RD/BK | 744 | Rear Compartment Lid Ajar Switch |
| B5 | D-GN | 392 | Rear Window Washer Switch Signal |
| B6 | WH | 2192 | Traction Ready Indicator Control |
| B7 | BK/WH | 56 | Trunk/Liftgate Release Switch Signal |
| B8 | BK/WH | 99 | Windshield Washer Fluid Level Signal |
| B9 | YE | 743 | Accessory Voltage |
| B10 | BN | 9 | Park Lamp Supply Voltage |
| B11 | L-GN | 1478 | Coolant Level Switch Signal |
| B12 | -- | -- | Not Used |
