Installation Procedure

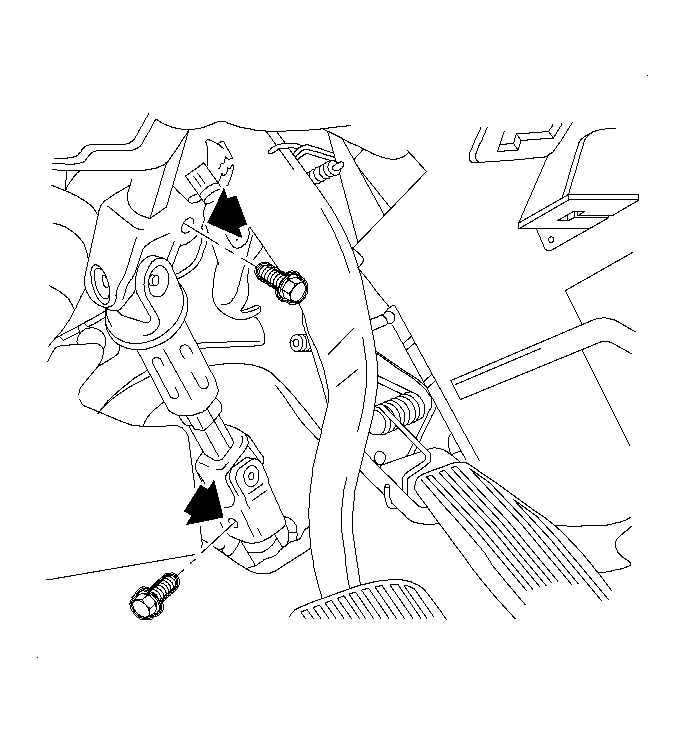

    Fig 1: Removing & Installing Intermediate Steering Shaft
    GM891784Courtesy of GENERAL MOTORS CORP.
  1. Connect the intermediate shaft to the steering column.
    2. NOTE: Refer to FASTENER NOTIC in Cautions and Notices.
  2. Install the intermediate shaft to steering column pinch bolt.

    Tighten:  Tighten the bolt to 30 N.m (22 lb ft).

  3. Connect the intermediate shaft to the steering gear.
  4. Install the intermediate shaft to steering gear pinch bolt.

    Tighten:  Tighten the bolt to 30 N.m (22 lb ft).
