Inline Harness Connector End Views

C102 Forward Lamp Harness to Right Headlamp Harness Connector End View

GM632357Courtesy of GENERAL MOTORS CORP.
GM646396Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326829
  • 6-Way F GT 150 Sealed Series (BK)
 Connector Part Information
  • 15326833
  • 6-Way M GT 150 Sealed Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 140 Battery Positive Voltage A OG 140 Battery Positive Voltage
B BN 9 Park Lamp Supply Voltage B BN 9 Park Lamp Supply Voltage
C D-BU 15 Right Turn Signal Lamps Supply Voltage C D-BU 15 Right Turn Signal Lamps Supply Voltage
D PK 1200 High Beam Switched Ground D PK 1200 High Beam Switched Ground
E L-BU 1201 Low Beam Switched Ground E L-BU 1201 Low Beam Switched Ground
F BK 150 Ground F BK 150 Ground
C103 Forward Lamp Harness to Left Headlamp Harness Connector End View

GM632357Courtesy of GENERAL MOTORS CORP.
GM646396Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326829
  • 6-Way F GT 150 Sealed Series (BK)
 Connector Part Information
  • 15326833
  • 6-Way M GT 150 Sealed Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 40 Battery Positive Voltage A OG 40 Battery Positive Voltage
B BN 9 Park Lamp Supply Voltage B BN 9 Park Lamp Supply Voltage
C L-BU 14 Left Turn Signal Lamps Supply Voltage C L-BU 14 Left Turn Signal Lamps Supply Voltage
D PK 1200 High Beam Switched Ground D PK 1200 High Beam Switched Ground
E L-BU 1201 Low Beam Switched Ground E L-BU 1201 Low Beam Switched Ground
F BK 150 Ground F BK 150 Ground
C150 Engine Harness to Injector Jumper (3.0L) Connector End View

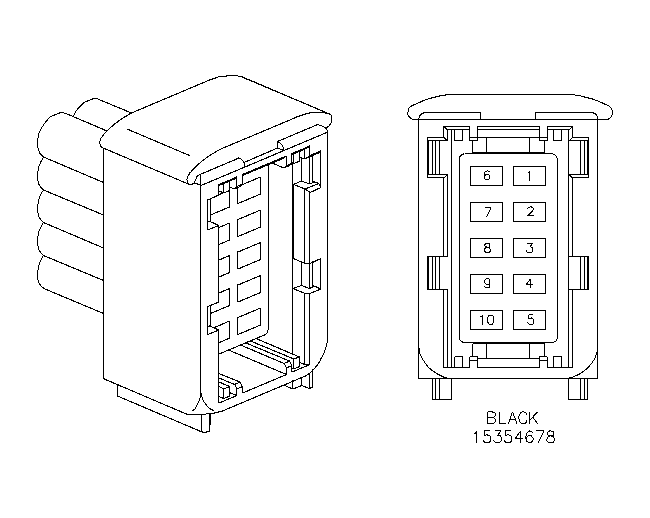

GM890552Courtesy of GENERAL MOTORS CORP.
 -
Connector Part Information
  • 15354678
  • 10-Way F (BK)
 Connector Part Information
  • 12186711
  • 10-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK 1744 Fuel Injector 1 Control 1 BK 1744 Fuel Injector 1 Control
2 GN/BK 1745 Fuel Injector 2 Control 2 GN/BK 1745 Fuel Injector 2 Control
3 PK/BK 1746 Fuel Injector 3 Control 3 PK/BK 1746 Fuel Injector 3 Control
4 BU/BK 844 Fuel Injector 4 Control 4 BU/BK 844 Fuel Injector 4 Control
5 BK/WH 845 Fuel Injector 5 Control 5 BK/WH 845 Fuel Injector 5 Control
6 YE/BK 846 Fuel Injector 6 Control 6 YE/BK 846 Fuel Injector 6 Control
7 - - Not Used 7 - - Not Used
8 OG 2640 Ignition 1 Voltage 8 OG 2640 Ignition 1 Voltage
C150 Inline Engine Harness to Injector Harness (2.2L) Connector End View

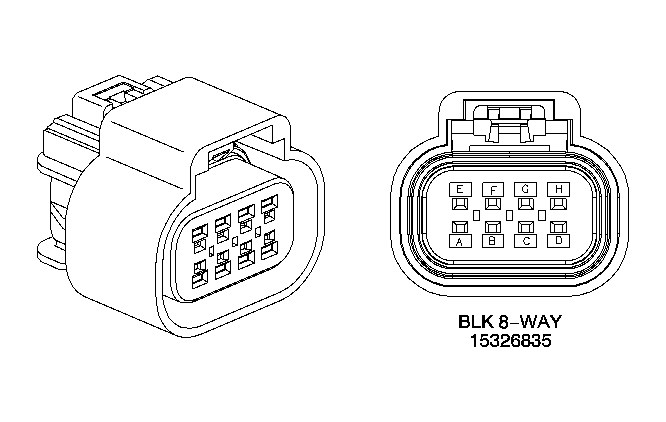

GM890330Courtesy of GENERAL MOTORS CORP.

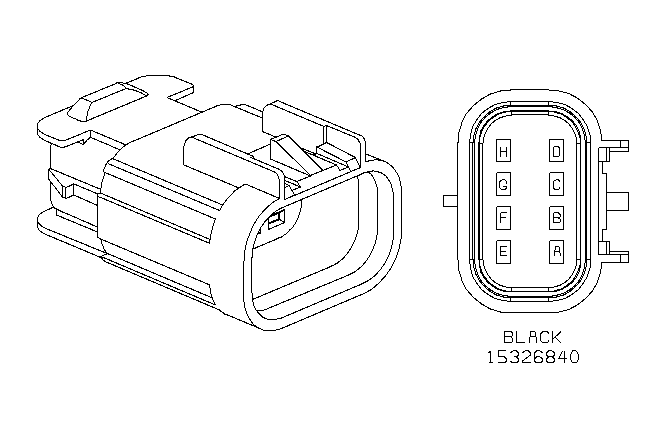

GM890333Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT 150 Series (BK)
 Connector Part Information
  • 15326840
  • 8-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 1744 Injector 1 Control A BK 1744 Injector 1 Control
B L-GN/BK 1745 Injector 2 Control B L-GN/BK 1745 Injector 2 Control
C PK/BK 1746 Injector 3 Control C PK/BK 1746 Injector 3 Control
D L-BU/BK 844 Injector 4 Control D L-BU/BK 844 Injector 4 Control
E PK 139 Ignition 1 Voltage E PK 139 Ignition 1 Voltage
F OG/BK 469 Low Reference F OG/BK 469 Low Reference
G GN 432 MAP Sensor Signal G L-GN 432 MAP Sensor Signal
H GY 2704 5 Volt Reference H GY 2704 5 Volt Reference
C198 Engine Harness to I/P Harness (3.0L Late Production) Connector End View

GM831372Courtesy of GENERAL MOTORS CORP.
GM831369Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326849
  • 12-Way F GT 150 Series (BK)
 Connector Part Information
  • 15326854
  • 12-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-BU 84 Cruise Control Set/Coast Switch Signal A1 D-BU 84 Cruise Control Set/Coast Switch Signal
B BK 2759 Low Reference A2 BK 2759 Low Reference
C L-BU 1162 APP Sensor 2 Signal A3 L-BU 1162 APP Sensor 2 Signal
D BN 86 Cruise Control Release Signal A4 BN 86 Cruise Control Release Signal
E BN 1271 Low Reference A5 BN 1271 Low Reference
F GY 397 Cruise Control On Switch Signal A6 GY 397 Cruise Control On Switch Signal
G D-BU 1161 APP Sensor 1 Signal A7 D-BU 1161 APP Sensor 1 Signal
H TN 1274 5 Volt Reference A8 TN 1274 5 Volt Reference
J WH/BK 1164 5 Volt Reference B1 WH/BK 1164 5 Volt Reference
K PU 1319 Engine/Radio Serial Data K-Line B2 PU 1319 Engine/Radio Serial Data K-Line
L GY 2709 5 Volt Reference B3 GY 2709 5 Volt Reference
M WH 1310 EVAP Canister Vent Solenoid Control B4 WH 1310 EVAP Canister Vent Solenoid Control
C199 Engine Harness to I/P Harness (2.2L) Connector End View

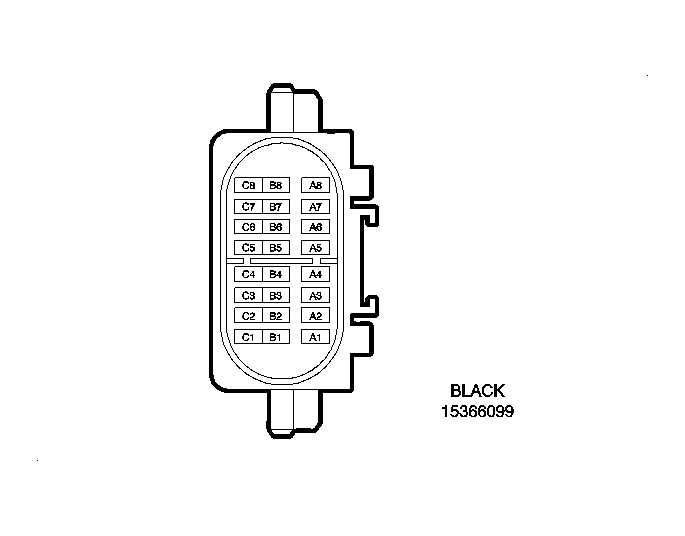

GM890608Courtesy of GENERAL MOTORS CORP.

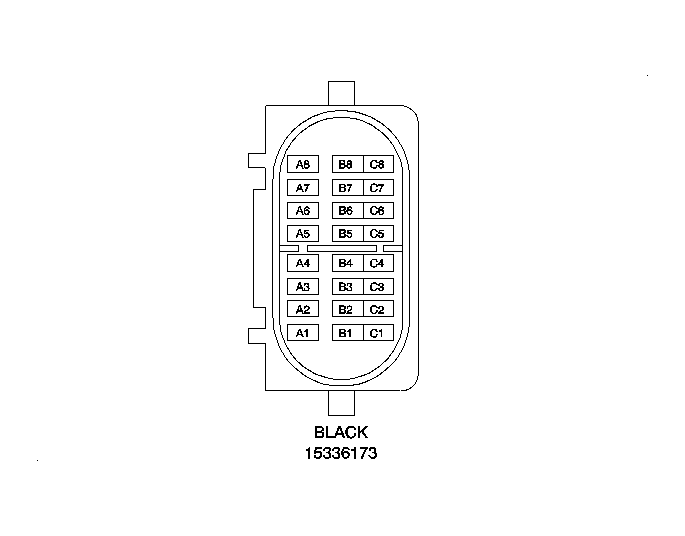

GM890503Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366099
  • 24-Way F GT 150/280 Series (BK)
 Connector Part Information
  • 15336173
  • 24-Way M GT 150/280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 BK/WH 451 Ground A1 BK/WH 451 Ground
A2 WH 776 Transmission Range Switch Signal P (A/T) A2 BN/WH 776 Transmission Range Switch Signal P (A/T)
BN/WH 379 CPP Switch Signal (M/T) PU 379 CPP Switch Signal (M/T)
A3 PU 30 Fuel Level Sensor Signal A3 PU 30 Fuel Level Sensor Signal
A4 YE 5 Crank Voltage (A/T) A4 YE 5 Crank Voltage (A/T)
PU 6 Starter Solenoid Crank Voltage (M/T) PU 6 Starter Solenoid Crank Voltage (M/T)
A5 WH 1310 EVAP Canister Vent Solenoid Control A5 WH 1310 EVAP Canister Vent Solenoid Control
A6 BK/WH 451 Ground A6 BK/WH 451 Ground
A7 D- GN/WH 817 Vehicle Speed Signal A7 D- GN/WH 817 Vehicle Speed Signal
A8 L-BU/BK 396 Cruise Control Engaged Signal A8 L-BU/BK 396 Cruise Control Engaged Signal
B1 D- GN 890 Fuel Tank Pressure Sensor Signal B1 D- GN 890 Fuel Tank Pressure Sensor Signal
B2 BK 2759 Low Reference B2 BK 2759 Low Reference
B3 GY 2709 5 Volt Reference B3 GY 2709 5 Volt Reference
B4 YE 343 Accessory Voltage B4 YE 343 Accessory Voltage
B5 PU 1807 Class 2 Serial Data B5 PU 1807 Class 2 Serial Data
B6 BN 882 Right Rear Wheel Speed Sensor Signal (w/ ABS) B6 BN 882 Right Rear Wheel Speed Sensor Signal (w/ ABS)
BN 872 Right Rear Wheel Speed Sensor Signal (w/o ABS) BN 872 Right Rear Wheel Speed Sensor Signal (w/o ABS)
B7 WH 883 Right Rear Wheel Speed Sensor Low Reference (w/ ABS) B7 WH 883 Right Rear Wheel Speed Sensor Low Reference (w/ ABS)
WH 833 Right Front Wheel Speed Sensor Low Reference (w/o ABS) WH 833 Right Front Wheel Speed Sensor Low Reference (w/o ABS)
B8 D- GN 83 Cruise Control Inhibit Signal B8 D- GN 83 Cruise Control Inhibit Signal
C1 YE 772 Transmission Range Switch Signal B (A/T) C1 YE 772 Transmission Range Switch Signal B (A/T)
WH 1909 Right Front Wheel Speed Sensor Signal (M/T) WH 1909 Right Front Wheel Speed Sensor Signal (M/T)
C2 L-BU 1788 Traction Control Switch Signal C2 L-BU 1788 Traction Control Switch Signal
C3 L-BU 1276 ABS Serial Data K-Line C3 L-BU 1276 ABS Serial Data K-Line
C4 PU 92 Windshield Wiper Motor High Speed C4 PU 92 Windshield Wiper Motor High Speed
C5 D- GN 95 Windshield Washer Switch Signal C5 D- GN 95 Windshield Washer Switch Signal
C6 BK 884 Left Rear Wheel Speed Sensor Signal C6 BK 884 Left Rear Wheel Speed Sensor Signal
C7 RD 885 Left Rear Wheel Speed Sensor Low Reference C7 RD 885 Left Rear Wheel Speed Sensor Low Reference
C8 PU 1807 Class 2 Serial Data C8 PU 1807 Class 2 Serial Data
C199 Engine Harness to I/P Harness (3.0L Early Production) Connector End View

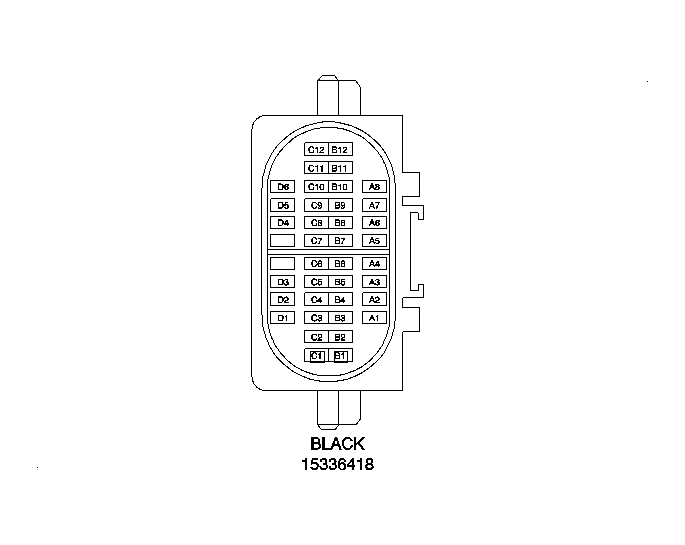

GM890544Courtesy of GENERAL MOTORS CORP.

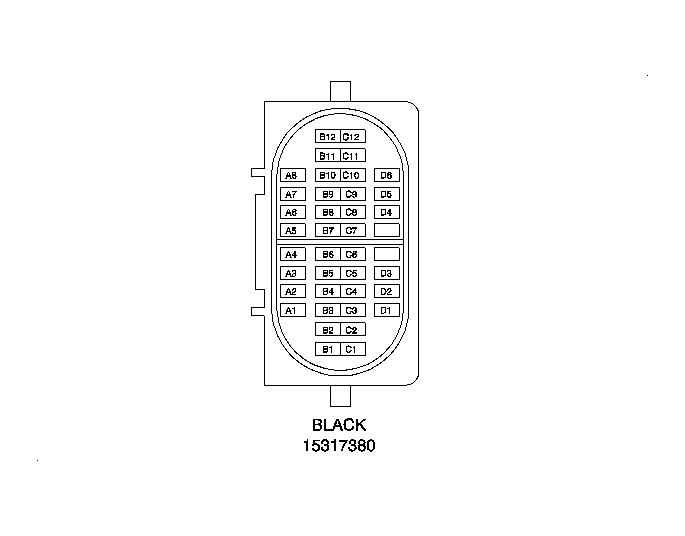

GM890159Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336418
  • 38-Way F GT 150/280 Series (BK)
 Connector Part Information
  • 15317380
  • 38-Way M GT 150/280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 GY/BK 87 Cruise Control Resume/Accel Switch Signal A1 GY/BK 87 Cruise Control Resume/Accel Switch Signal
A2 WH 776 Transmission Range Switch Signal P A2 WH 776 Transmission Range Switch Signal P
A3 PU 30 Fuel Level Sensor Signal A3 PU 30 Fuel Level Sensor Signal
A4 YE 5 Crank Voltage A4 YE 5 Crank Voltage
A5 PU 1319 Engine/Radio Serial Data K-Line A5 PU 1319 Engine/Radio Serial Data K-Line
A6 TN 2501 CAN Low A6 TN 2501 CAN Low
A7 TN/WH 2500 CAN High A7 TN/WH 2500 CAN High
A8 D- GN 890 Fuel Tank Pressure Sensor Signal A8 D- GN 890 Fuel Tank Pressure Sensor Signal
B1 BK 2759 Low Reference B1 BK 2759 Low Reference
B2 GY 2709 5 Volt Reference B2 GY 2709 5 Volt Reference
B3 BN 882 Right Rear Wheel Speed Sensor Signal B3 BN 882 Right Rear Wheel Speed Sensor Signal
B4 WH 883 Right Rear Wheel Speed Sensor Low Reference B4 WH 883 Right Rear Wheel Speed Sensor Low Reference
TN 833 Right Front Wheel Speed Sensor Low Reference
B5 D- BLU 84 Cruise Control Set/Coast Switch Signal B5 D- BLU 84 Cruise Control Set/Coast Switch Signal
B6 YE 343 Accessory Voltage B6 YE 343 Accessory Voltage
B7 - - Not Used B7 - - Not Used
B8 BK 2759 Low Reference B8 BK 2759 Low Reference
B9 L-BU 1162 APP Sensor 2 Signal B9 L-BU 1162 APP Sensor 2 Signal
B10 BN 86 Cruise Control Release Signal B10 BN 86 Cruise Control Release Signal
B11 BN 1271 Low Reference B11 BN 1271 Low Reference
B12 GY 397 Cruise Control On Switch Signal B12 GY 397 Cruise Control On Switch Signal
C1 D- BLU 1161 APP Sensor 1 Signal C1 D- BLU 1161 APP Sensor 1 Signal
C2 TN 1274 5 Volt Reference C2 TN 1274 5 Volt Reference
C3 WH/BK 1164 5 Volt Reference C3 WH/BK 1164 5 Volt Reference
C4 - - Not Used C4 - - Not Used
C5 PU 1319 Engine/Radio Serial Data K-Line C5 PU 1319 Engine/Radio Serial Data K-Line
C6 PU 92 Windshield Wiper Motor High Speed C6 PU 92 Windshield Wiper Motor High Speed
C7 D- GN 95 Windshield Washer Switch Signal C7 D- GN 95 Windshield Washer Switch Signal
C8 GY 2709 5 Volt Reference C8 GY 2709 5 Volt Reference
C9 L-BU 1788 Traction Control Switch Signal C9 L-BU 1788 Traction Control Switch Signal
C10 WH 2192 Traction Ready Indicator Control C10 WH 2192 Traction Ready Indicator Control
C11 L-GN 867 ABS Indicator Failure Control C11 L-GN 867 ABS Indicator Failure Control
C12 L-BU 832 Traction Control Active Signal C12 L-BU 832 Traction Control Active Signal
D1 L-BU 1276 ABS Serial Data K-Line D1 L-BU 1276 ABS Serial Data K-Line
D2 BK 884 Left Rear Wheel Speed Sensor Signal D2 BK 884 Left Rear Wheel Speed Sensor Signal
D3 RD 885 Left Rear Wheel Speed Sensor Low Reference D3 RD 885 Left Rear Wheel Speed Sensor Low Reference
D4-D5 - - Not Used D4-D5 - - Not Used
D6 WH 1310 EVAP Canister Vent Solenoid Control D6 WH 1310 EVAP Canister Vent Solenoid Control
D7 BK/WH 451 Ground D7 BK/WH 451 Ground
D8 YE 772 Transmission Range Switch Signal B D8 YE 772 Transmission Range Switch Signal B
C199 Engine Harness to I/P Harness (3.0L Late Production) Connector End View

GM847310Courtesy of GENERAL MOTORS CORP.
GM586335Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366099
  • 24-Way F GT 150/280 Series (BK)
 Connector Part Information
  • 15336173
  • 24-Way M GT 150/280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 GY/BK 87 Cruise Control Resume/Accel Switch Signal A1 GY/BK 87 Cruise Control Resume/Accel Switch Signal
A2 WH 776 Transmission Range Switch Signal P A2 WH 776 Transmission Range Switch Signal P
A3 PU 30 Fuel Level Sensor Signal A3 PU 30 Fuel Level Sensor Signal
A4 YE 5 Crank Voltage A4 YE 5 Crank Voltage
A5 PU 1319 Engine/Radio Serial Data K-Line A5 PU 1319 Engine/Radio Serial Data K-Line
A6 TN 2501 CAN Low A6 TN 2501 CAN Low
A7 TN/WH 2500 CAN High A7 TN/WH 2500 CAN High
A8 D- GN 890 Fuel Tank Pressure Sensor Signal A8 D- GN 890 Fuel Tank Pressure Sensor Signal
B1 BK 2759 Low Reference B1 BK 2759 Low Reference
B2 WH 883 Right Rear Wheel Speed Sensor Low Reference B2 WH 883 Right Rear Wheel Speed Sensor Low Reference
B3 BN 882 Right Rear Wheel Speed Sensor Signal B3 BN 882 Right Rear Wheel Speed Sensor Signal
B4 PU 92 Windshield Wiper Motor High Speed B4 PU 92 Windshield Wiper Motor High Speed
-
B5 YE 343 Accessory Voltage B5 YE 343 Accessory Voltage
B6 L-BU 1788 Traction Control Switch Signal B6 L-BU 1788 Traction Control Switch Signal
B7 WH 2192 Traction Ready Indicator Control B7 WH 2192 Traction Ready Indicator Control
B8 GY 2709 5 Volt Reference B8 GY 2709 5 Volt Reference
C1 BK/WH 451 Ground C1 BK/WH 451 Ground
C2 L-GN 867 ABS Indicator Failure Control (w/ ABS) C2 L-GN 867 ABS Indicator Failure Control (w/ ABS)
C3 L-BU 832 Traction Control Active Signal (w/ ABS) C3 L-BU 832 Traction Control Active Signal (w/ ABS)
C4 L-BU 1276 ABS Serial Data K-Line (w/ ABS) C4 L-BU 1276 ABS Serial Data K-Line (w/ ABS)
C5 D-GN 95 Windshield Washer Switch Signal C5 D-GN 95 Windshield Washer Switch Signal
C6 OG 885 Left Rear Wheel Speed Sensor Low Reference (w/ ABS) C6 OG 885 Left Rear Wheel Speed Sensor Low Reference (w/ ABS)
C7 TN 884 Windshield Washer Switch Signal (w/ ABS) C7 TN 884 Windshield Washer Switch Signal (w/ ABS)
C8 YE 772 Transmission Range Switch Signal B C8 YE 772 Transmission Range Switch Signal B
C200 Body Harness to Headliner- Front Connector End View

GM890004Courtesy of GENERAL MOTORS CORP.

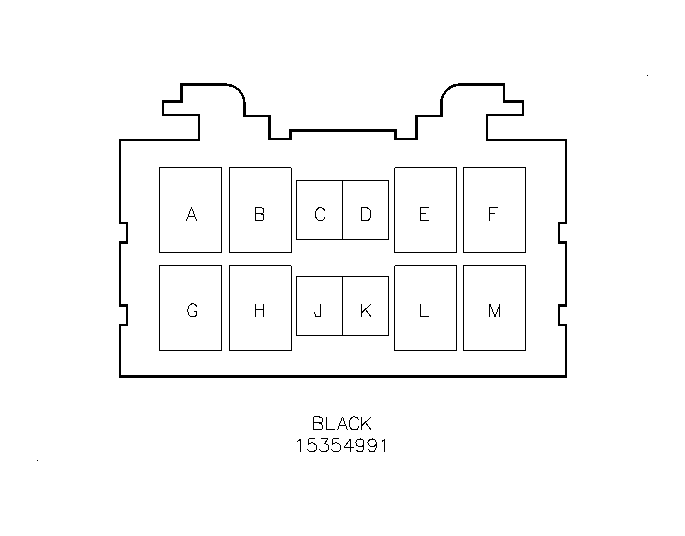

GM890554Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336888
  • 12-Way F GT 150/280 Series (BK)
 Connector Part Information
  • 15354991
  • 12 Way M GT 150/280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage A OG 1732 Courtesy Lamps Supply Voltage
B OG 1732 Courtesy Lamps Supply Voltage B OG 1732 Courtesy Lamps Supply Voltage
C L-BU 20 Stop Lamp Switch Signal C L-BU 20 Stop Lamp Switch Signal
OG 1732 Courtesy Lamps Supply Voltage (Wagon) OG 1732 Courtesy Lamps Supply Voltage (Wagon)
D YE 143 Accessory Voltage (Sedan) D YE 143 Accessory Voltage (Sedan)
E RD 402 Battery Positive Voltage E RD 402 Battery Positive Voltage
F WH 156 Courtesy Lamp Low Control F WH 156 Courtesy Lamp Low Control
G - - Not Used G - - Not Used
H BK 450 Ground H BK 450 Ground
J-M - - Not Used J-M - - Not Used
C201 Body Harness to Audio Amplifier Harness Connector End View

GM887588Courtesy of GENERAL MOTORS CORP.

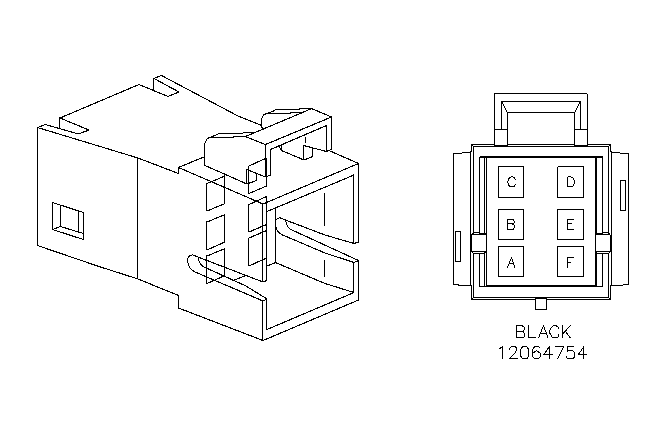

GM887593Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BK)
 Connector Part Information
  • 12064754
  • 6-Way M Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLU 346 Subwoofer Speaker Output (+) A BLU 346 Subwoofer Speaker Output (+)
B GN 1794 Subwoofer Speaker Output (-) B GN 1794 Subwoofer Speaker Output (-)
C OG 1340 Battery Positive Voltage C OG 1340 Battery Positive Voltage
D BK 450 Ground D BK 450 Ground
E-F - - Not Used E-F - - Not Used
C204 Body Harness to I/P (RH) Harness (w/ UE1) Connector End View

GM655774Courtesy of GENERAL MOTORS CORP.
GM655773Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15317325
  • 22-Way F GT 150/280 Series (L-GY)
 Connector Part Information
  • 15317322
  • 22-Way M GT 150/280 Series (L-GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 WH 156 Courtesy Lamp Low Control A1 WH 156 Courtesy Lamp Low Control
A2 D-GN/WH 368 Remote Radio Right Audio Signal A2 D-GN/WH 368 Remote Radio Right Audio Signal
A3 BARE 814 Drain Wire A3 BARE 814 Drain Wire
A4 BK/WH 746 Right Front Door Ajar Switch Signal A4 BK/WH 746 Right Front Door Ajar Switch Signal
BK/WH 746 Right Front Door Ajar Switch Signal - BK/WH 746 Right Front Door Ajar Switch Signal
A5 RD/BK 744 Rear Compartment Lid Ajar Switch A5 RD/BK 744 Rear Compartment Lid Ajar Switch
A6 GY 382 Trunk Release Enable Relay Switch Supply Voltage A6 GY 382 Trunk Release Enable Relay Switch Supply Voltage
A7 BK/WH 746 Right Front Door Ajar Switch Signal A7 BK/WH 746 Right Front Door Ajar Switch Signal
A8 OG 1732 Courtesy Lamps Supply Voltage A8 OG 1732 Courtesy Lamps Supply Voltage
A9 BN/WH 367 Remote Radio Left Audio Signal A9 BN/WH 367 Remote Radio Left Audio Signal
A10 YE/BK 693 Cellular Telephone Mute Signal A10 YE/BK 693 Cellular Telephone Mute Signal
A11 BK/WH 372 Remote Radio Audio Output (-) A11 BK/WH 372 Remote Radio Audio Output (-)
B1 - - Not Used B1 - - Not Used
B2 D-BU 1363 Seat Belt Switch - Left - Low Reference B2 D-BU 1363 Seat Belt Switch - Left - Low Reference
B3 BK/WH 238 Seat Belt Switch - Left B3 BK/WH 238 Seat Belt Switch - Left
B4 OG 1732 Courtesy Lamps Supply Voltage B4 OG 1732 Courtesy Lamps Supply Voltage
OG 1732 Courtesy Lamps Supply Voltage - OG 1732 Courtesy Lamps Supply Voltage
B5 D-GN 117 Right Front Speaker Output (-) B5 D-GN 117 Right Front Speaker Output (-)
B6 L-GN 200 Right Front Speaker Output (+) B6 L-GN 200 Right Front Speaker Output (+)
B7 PU 1807 Class 2 Serial Data B7 PU 1807 Class 2 Serial Data
PU 1807 Class 2 Serial Data Class 2 Serial Data
B8 D-BU 46 Right Rear Speaker Output (+) B8 D-BU 46 Right Rear Speaker Output (+)
B9 BK 650 Ground B9 BK 650 Ground
B10 OG 1340 Battery Positive Voltage B10 OG 1340 Battery Positive Voltage
B11 L-BU 115 Right Rear Speaker Output (-) B11 L-BU 115 Right Rear Speaker Output (-)
C204 Body Harness to I/P (RH) Harness (w/o UE1) Connector End View

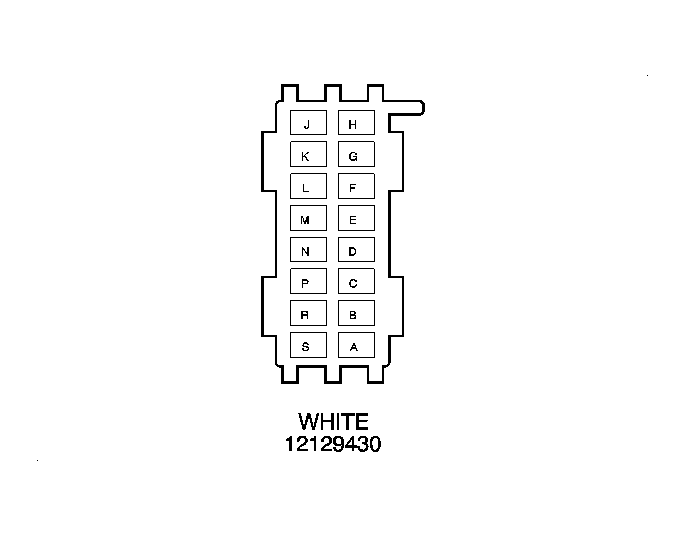

GM886674Courtesy of GENERAL MOTORS CORP.

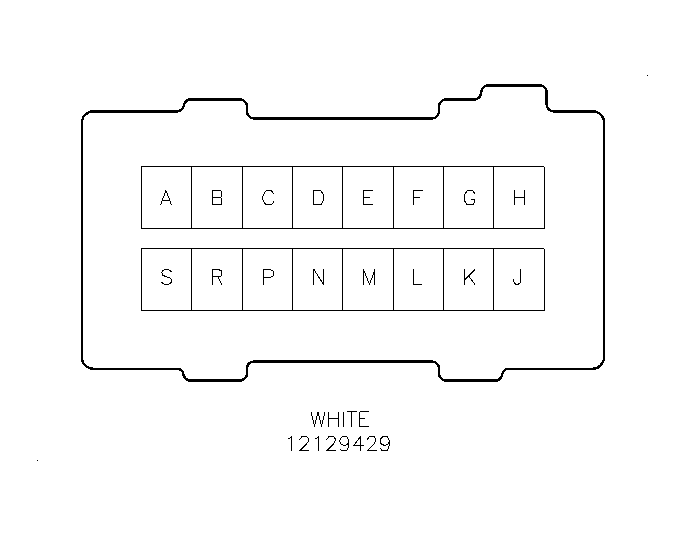

GM887960Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129430
  • 16-Way F GT 150/280 Series (WH)
 Connector Part Information
  • 12129429
  • 16-Way M GT 150/280 Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D- BLU 46 Right Rear Speaker Output (+) A D- BLU 46 Right Rear Speaker Output (+)
B L-BU 115 Right Rear Speaker Output (-) B L-BU 115 Right Rear Speaker Output (-)
C L-GN 200 Right Front Speaker Output (+) C L-GN 200 Right Front Speaker Output (+)
D D- GN 117 Right Front Speaker Output (-) D D- GN 117 Right Front Speaker Output (-)
E BK/WH 238 Seat Belt Switch - Left E BK/WH 238 Seat Belt Switch - Left
F D- BLU 1363 Seat Belt Switch - Left - Low Reference F D- BLU 1363 Seat Belt Switch - Left - Low Reference
G OG 1732 Courtesy Lamps Supply Voltage G OG 1732 Courtesy Lamps Supply Voltage
H OG 1732 Courtesy Lamps Supply Voltage H - - Courtesy Lamps Supply Voltage
J WH 156 Courtesy Lamp Low Control J WH 156 Courtesy Lamp Low Control
K RD/WH 744 Rear Compartment Lid Ajar Switch K RD/BK 744 Rear Compartment Lid Ajar Switch
L BK/WH 746 Right Front Door Ajar Switch Signal L BK/WH 746 Right Front Door Ajar Switch Signal
M BK/WH 746 Right Front Door Ajar Switch Signal M BK/WH 746 Right Front Door Ajar Switch Signal
N GY 382 Trunk Release Enable Relay Switch Supply Voltage N GY 382 Trunk Release Enable Relay Switch Supply Voltage
P-S - - Not Used P-S - - Not Used
C205 I/P Harness to HVAC Jumper (w/ C68) Connector End View

GM890004Courtesy of GENERAL MOTORS CORP.
GM890548Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336205
  • 12-Way F GT 150/280 Series (BK)
 Connector Part Information
  • 15336209
  • 12-Way M GT 150/280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 268 Ignition 3 Voltage A OG/TN YE Ignition 3 Voltage
B TN 683 Rear Defog Indicator Supply Voltage B OG/YE TN Rear Defog Indicator Supply Voltage
C BK 550 Ground c BK BK Ground
D YE 61 Low Reference D L-GN/YE YE Low Reference
E L-BU/BK 590 Sunload Sensor Signal E BN/L-BU L-BU/BK Sunload Sensor Signal
F BK 550 Ground F BK BK Ground
G GY 8 Instrument Panel Lamp Supply Voltage G GY GY Instrument Panel Lamp Supply Voltage
H BN 641 Ignition 3 Voltage H BN BN Ignition 3 Voltage
J PU 1807 Class 2 Serial Data J L-BU/PU PU Class 2 Serial Data
K PU 1807 Class 2 Serial Data K TN/PU PU Class 2 Serial Data
L OG 1640 Battery Positive Voltage L OG OG Battery Positive Voltage
M BK 476 Low Reference M BK 476 Low Reference
BK 476 Low Reference
C205 I/P Harness to HVAC Jumper (w/o C68) Connector End View

GM890004Courtesy of GENERAL MOTORS CORP.
GM890548Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336888
  • 12-Way F GT 150/280 Series (BK)
 Connector Part Information
  • 15336891
  • 12-Way M GT 150/280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 52 Blower Motor High Control A OG 52 Blower Motor High Control
B OG 52 Blower Motor High Control B OG 52 Blower Motor High Control
C BK 550 Ground c BK 550 Ground
D L-GN 66 A/C Request Signal D L-GN 66 A/C Request Signal
E YE 268 Ignition 3 Voltage E YE 268 Ignition 3 Voltage
F BK 550 Ground F BK 550 Ground
G GY 8 Instrument Panel Lamp Supply Voltage G GY 8 Instrument Panel Lamp Supply Voltage
H BN 641 Ignition 3 Voltage H BN 641 Ignition 3 Voltage
J L-BU 292 Rear Defog Switch Signal J L-BU 292 Rear Defog Switch Signal
K TN 683 Rear Defog Indicator Supply Voltage K TN 683 Rear Defog Indicator Supply Voltage
L - - Not Used L - - Not Used
C207 Body Harness to I/P Harness Connector End View

GM890004Courtesy of GENERAL MOTORS CORP.

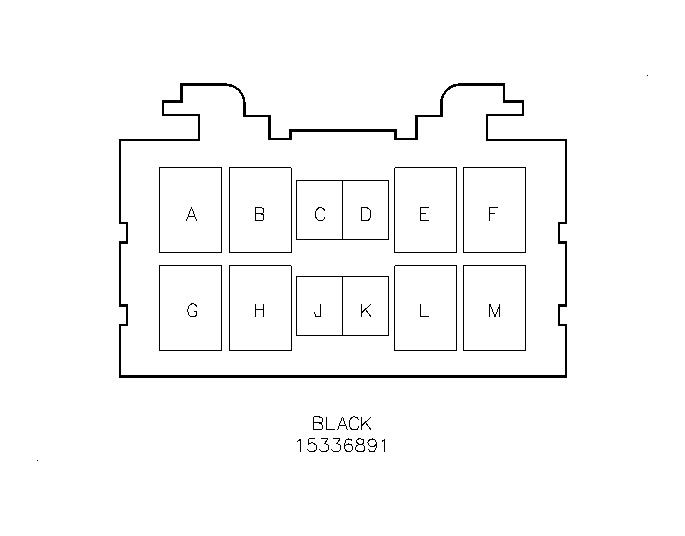

GM890548Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336888
  • 12-Way F GT 150/280 Series (BK)
 Connector Part Information
  • 15336891
  • 12-Way M GT 150/280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GY 2709 5 Volt Reference A GY 2709 5 Volt Reference
B TN 201 Left Front Speaker Output (+) B TN 201 Left Front Speaker Output (+)
C D- GN 890 Fuel Tank Pressure Sensor Signal C D- GN 890 Fuel Tank Pressure Sensor Signal
D BK 884 Left Rear Wheel Speed Sensor Signal D BK 884 Left Rear Wheel Speed Sensor Signal
E YE 182 Heated Seat Control Module Inhibit Signal E YE 182 Heated Seat Control Module Inhibit Signal
F WH 883 Right Rear Wheel Speed Sensor Low Reference F WH 883 Right Rear Wheel Speed Sensor Low Reference
G GY 118 Left Front Speaker Output (-) G GY 118 Left Front Speaker Output (-)
H BN 882 Right Rear Wheel Speed Sensor Signal H BN 882 Right Rear Wheel Speed Sensor Signal
J RD 885 Left Rear Wheel Speed Sensor Low Reference J RD 885 Left Rear Wheel Speed Sensor Low Reference
K PK 1501 Driver Heated Seat High/Low Signal K PK 1501 Driver Heated Seat High/Low Signal
L BN 199 Left Rear Speaker Output (+) L BN 199 Left Rear Speaker Output (+)
M YE 116 Left Rear Speaker Output (-) M YE 116 Left Rear Speaker Output (-)
C215 Inflatable Restraint I/P Module to I/P Harness Connector End View

GM886671Courtesy of GENERAL MOTORS CORP.
GM889854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077921

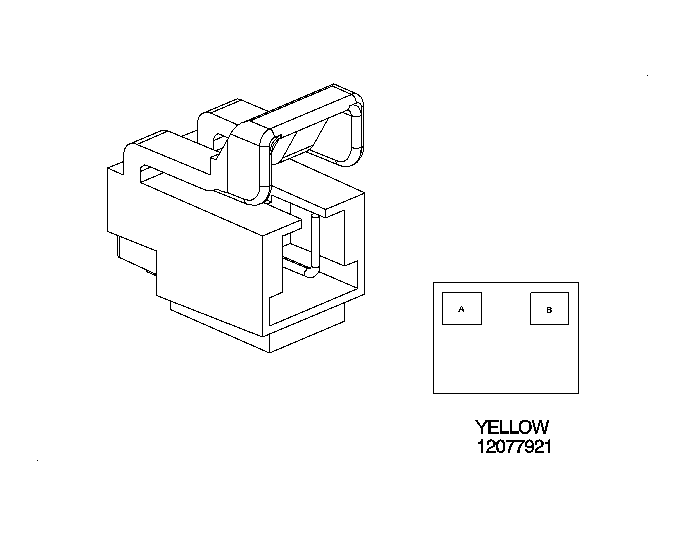

  • 2-Way F Metri-Pack 280 Series (YE)
 Connector Part Information
  • 12186799

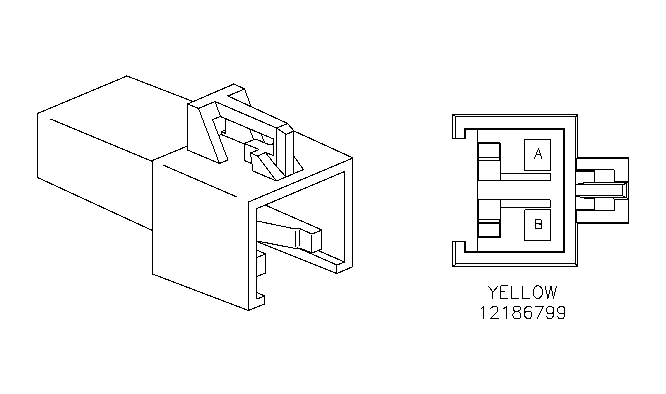

  • 2-Way M Metri-Pack 280 Series (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WH/BK 1403 I/P Module - High Control A WH/BK 1403 I/P Module - High Control
B D- GN/WH 1404 I/P Module - Low Control B D- GN/WH 1404 I/P Module - Low Control
C220 I/P Harness to Audio Amplifier Harness Connector End View

GM73156Courtesy of GENERAL MOTORS CORP.
GM770798Courtesy of GENERAL MOTORS CORP.
Connector Part Information

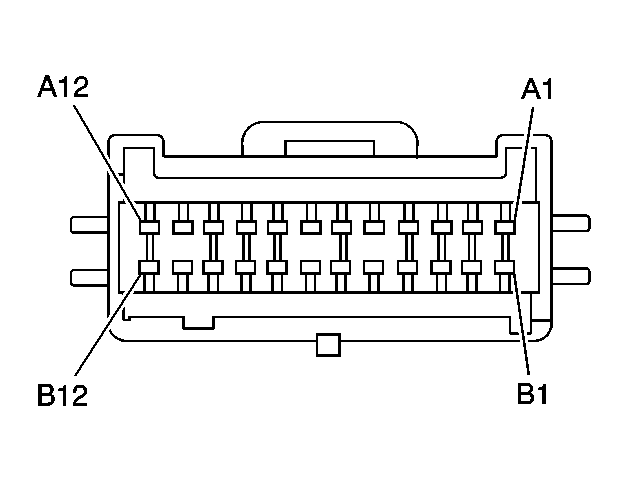

  • 12110088
  • 24-Way F Micro-Pack 100 (GY)
 Connector Part Information
  • 15305213
  • 24-Way M Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1-A7 - - Not Used A1-A7 - - Not Used
A8 BN 199 Left Rear Speaker Output (+) A8 BN 199 Left Rear Speaker Output (+)
A9 YE 116 Left Rear Speaker Output (-) A9 YE 116 Left Rear Speaker Output (-)
A10 GN 117 Right Front Speaker Output (-) A10 GN 117 Right Front Speaker Output (-)
A11 GN 200 Right Front Speaker Output (+) A11 GN 200 Right Front Speaker Output (+)
A12 BK 550 Ground A12 BK 550 Ground
B1 OG 440 Battery Positive Voltage B1 OG 440 Battery Positive Voltage
B2 YE 43 Accessory Voltage B2 YE 43 Accessory Voltage
B3 OG 2140 Battery Positive Voltage B3 OG 2140 Battery Positive Voltage
B4 GY 8 Instrument Panel Lamp Supply Voltage B4 GY 8 Instrument Panel Lamp Supply Voltage
B5-B7 - - Not Used B5-B7 - - Not Used
B8 TN 201 Left Front Speaker Output (+) B8 TN 201 Left Front Speaker Output (+)
B9 GY 118 Left Front Speaker Output (-) B9 GY 118 Left Front Speaker Output (-)
B10 BLU 115 Right Rear Speaker Output (-) B10 BLU 115 Right Rear Speaker Output (-)
B11 BLU 46 Right Rear Speaker Output (+) B11 BLU 46 Right Rear Speaker Output (+)
B12 BN 9 Park Lamp Supply Voltage B12 BN 9 Park Lamp Supply Voltage
C301 I/P to Console Jumper Connector End View

GM62456Courtesy of GENERAL MOTORS CORP.
GM39689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BK)
 Connector Part Information
  • 12064754
  • 6-Way M Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A GY 8 Not Used
B OG 2240 Battery Positive Voltage B OG 2240 Battery Positive Voltage
C BK 350 Ground C BK 350 Ground
BK 550 Ground BK 550 Ground
D OG 1740 Battery Positive Voltage D OG 1740 Battery Positive Voltage
E-F - - Not Used E-F - - Not Used
C305 Body Harness to Driver Seat Connector End View

GM890162Courtesy of GENERAL MOTORS CORP.
GM890162Courtesy of GENERAL MOTORS CORP.
Connector Part Information

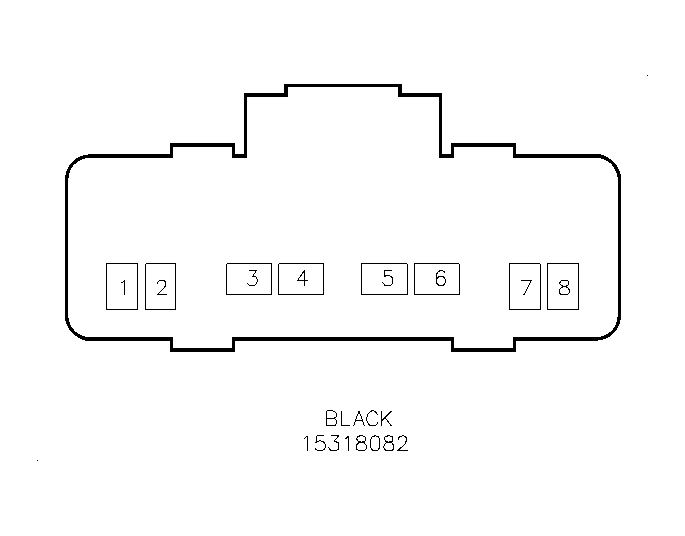

  • 15318082
  • 8 Way F (BK)
 Connector Part Information
  • 15397088
  • 8-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PK 1501 Driver Heated Seat High/Low Signal 1 PK 1501 Driver Heated Seat High/Low Signal
2 YE 182 Heated Seat Control Module Inhibit Signal 2 YE 182 Heated Seat Control Module Inhibit Signal
3 BN 141 Ignition 3 Voltage 3 BN 141 Ignition 3 Voltage
4 BK 450 Ground 4 BK 450 Ground
5 OG 640 Battery Positive Voltage 5 OG 640 Battery Positive Voltage
6 BK 450 Ground 6 BK 450 Ground
7 D- BLU 1363 Seat Belt Switch - Left - Low Reference 7 D- BLU 1363 Seat Belt Switch - Left - Low Reference
8 BK/WH 238 Seat Belt Switch - Left 8 BK/WH 238 Seat Belt Switch - Left
C306 Body Harness to Front Passenger Seat Connector End View

GM890162Courtesy of GENERAL MOTORS CORP.
GM890162Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15318082
  • 8 Way F (BK)
 Connector Part Information
  • 15397088
  • 8-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PK/BK 1503 Passenger Heated Seat High/Low Signal 1 PK/BK 1503 Passenger Heated Seat High/Low Signal
2 L-GN 559 Heated Seat Control Module Inhibit Signal 2 L-GN 559 Heated Seat Control Module Inhibit Signal
3 BN 141 Ignition 3 Voltage 3 BN 141 Ignition 3 Voltage
4 BK 450 Ground 4 BK 450 Ground
5-8 - - Not Used 5-8 - - Not Used
C406 Body Harness to Fuel Tank Connector End View

GM646400Courtesy of GENERAL MOTORS CORP.
GM684916Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT 150 Series (BK)
 Connector Part Information
  • 15326840
  • 8-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GY 120 Fuel Pump Supply Voltage A GY 120 Fuel Pump Supply Voltage
B BK 650 Ground B BK 650 Ground
C BK 2759 Low Reference C BK 2759 Low Reference
D - - Not Used D - - Not Used
E D- GN 890 Fuel Tank Pressure Sensor Signal E D- GN 890 Fuel Tank Pressure Sensor Signal
F GY 2709 5 Volt Reference F GY 2709 5 Volt Reference
G BK 2759 Low Reference G BK 2759 Low Reference
H PU 30 Fuel Level Sensor Signal H PU 30 Fuel Level Sensor Signal
C407 Body Harness to EVAP Solenoid Jumper Connector End View

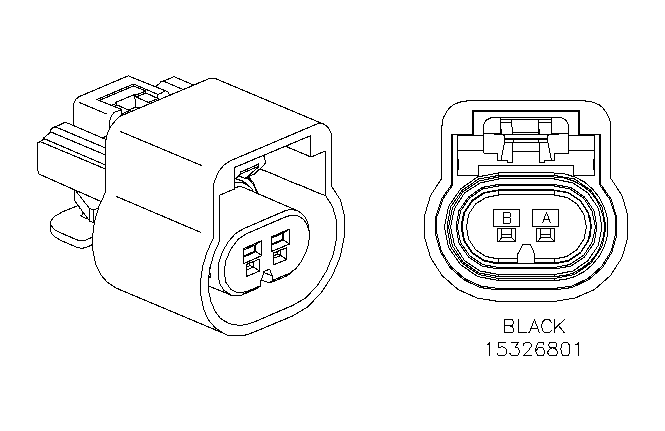

GM890276Courtesy of GENERAL MOTORS CORP.

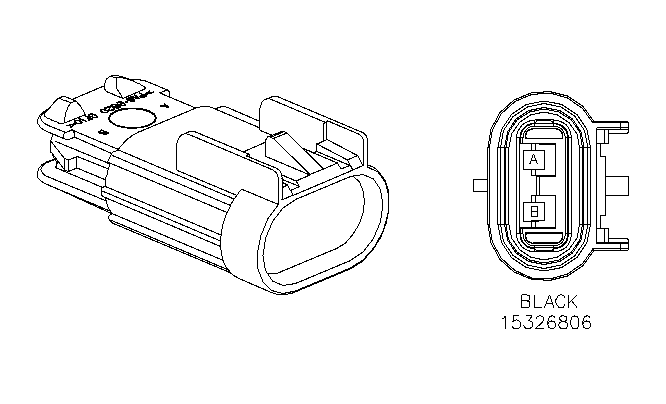

GM890283Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326801
  • 2-Way F GT 150 Series (BK)
 Connector Part Information
  • 15326806
  • 2-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 2740 Battery Positive Voltage A OG 2740 Battery Positive Voltage
B WH 1310 EVAP Canister Vent Solenoid Control B WH 1310 EVAP Canister Vent Solenoid Control
C408 Headliner to Body Harness- Rear Connector End View

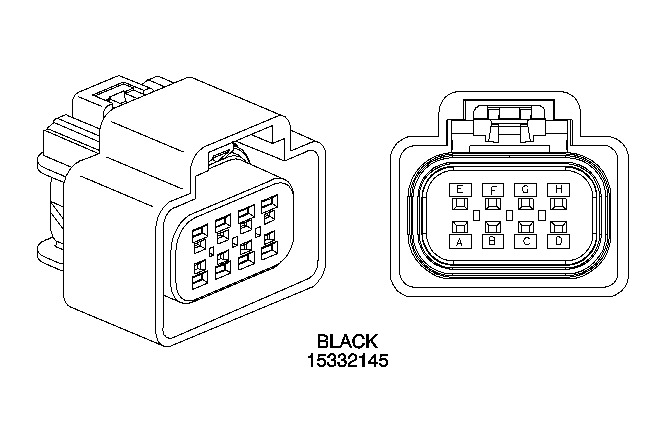

GM890345Courtesy of GENERAL MOTORS CORP.

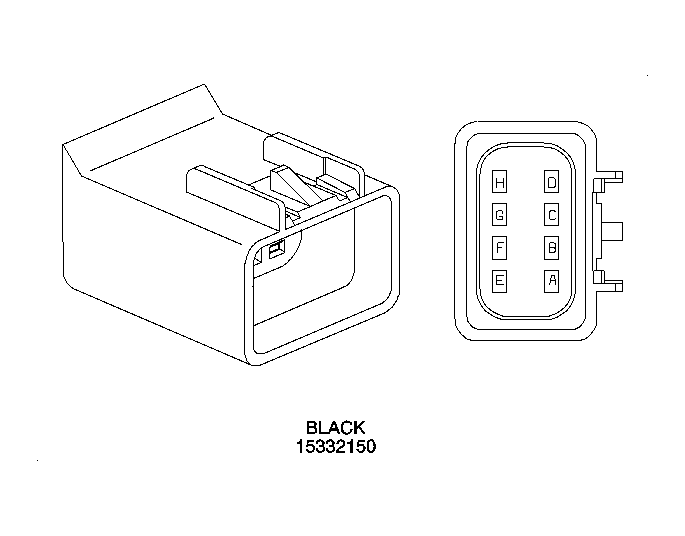

GM890347Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336888
  • 12-Way F GT 150/280 Series (BK)
 Connector Part Information
  • 15336891
  • 12-Way M GT 150/280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-GN/WH 368 Right Audio Signal A D-GN/WH 368 Right Audio Signal
B -- 814 Drain Wire B Bare 814 Drain Wire
C BK/WH 372 Audio Common C BK/WH 372 Audio Common
D BN/WH 367 Left Audio Signal D BN/WH 367 Left Audio Signal
E D-BU 601 Data Clock Signal E D-BU 601 Data Clock Signal
F BK 650 Ground F BK 650 Ground
G OG 1340 Battery Positive Voltage G OG 1340 Battery Positive Voltage
H PU 1807 Class 2 Serial Data H PU 1807 Class 2 Serial Data
C409 Rear Wheel Speed Sensors to Body Harness Connector End View

GM888009Courtesy of GENERAL MOTORS CORP.

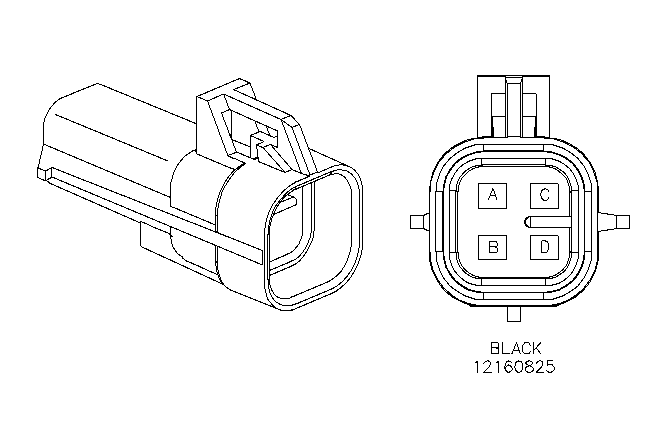

GM884636Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160482

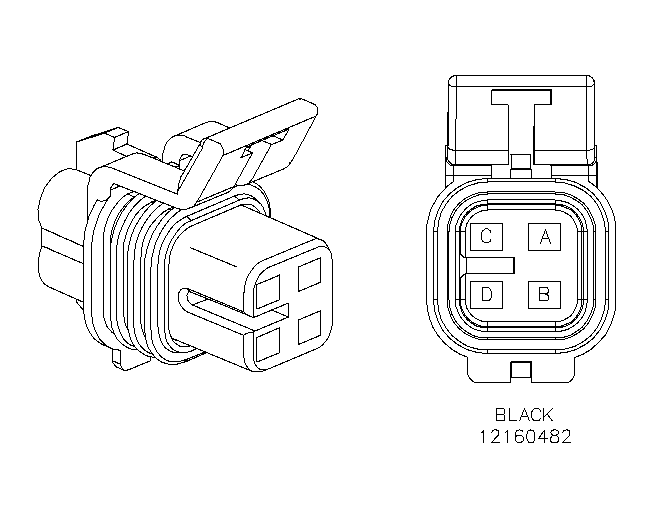

  • 4-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12160825
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 884 Left Rear Wheel Speed Sensor A BK 884 Left Body to I/P Inline
B BN 882 Right Rear Wheel Speed Sensor B BN 882 Left Body to I/P Inline
C WH 883 Right Rear Wheel Speed Sensor C WH 883 Left Body to I/P Inline
D RD 885 Left Rear Wheel Speed Sensor D RD 885 Left Body to I/P Inline
C493 Liftgate to Body Harness (Wagon) Connector End View

GM884626Courtesy of GENERAL MOTORS CORP.
GM887475Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886

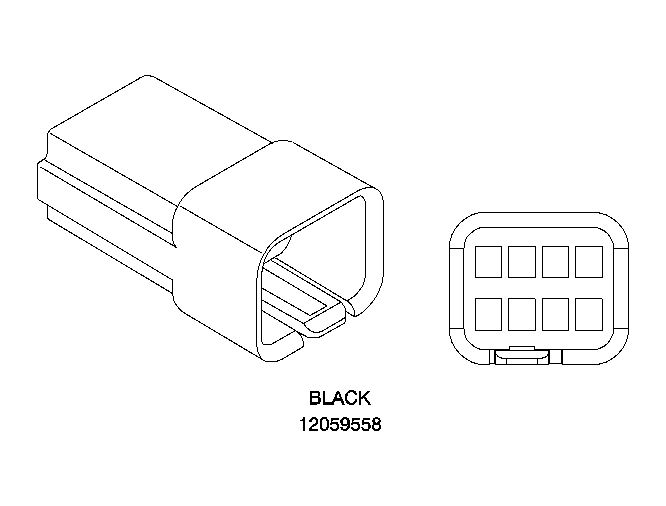

  • 8-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12089526
  • 8-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WH 393 Rear Window Wiper Motor Control A WH 393 Rear Window Wiper Motor Control
B YE 143 Accessory Voltage B YE 143 Accessory Voltage
C BK 650 Ground C BK 650 Ground
D GY 382 Trunk Release Enable Relay Switch Supply Voltage D GY 382 Trunk Release Enable Relay Switch Supply Voltage
E RD/BK 744 Rear Compartment Lid Ajar Switch Signal E RD/BK 744 Rear Compartment Lid Ajar Switch Signal
F L-BU 20 Stop Lamp Supply Voltage F L-BU 20 Stop Lamp Supply Voltage
G BK 305 Trunk Key Switch Signal G BK 305 Trunk Key Switch Signal
H OG 340 Battery Positive Voltage H OG 340 Battery Positive Voltage
C495 Liftgate/Defogger Harness to Body Harness (Wagon) Connector End View

GM886766Courtesy of GENERAL MOTORS CORP.

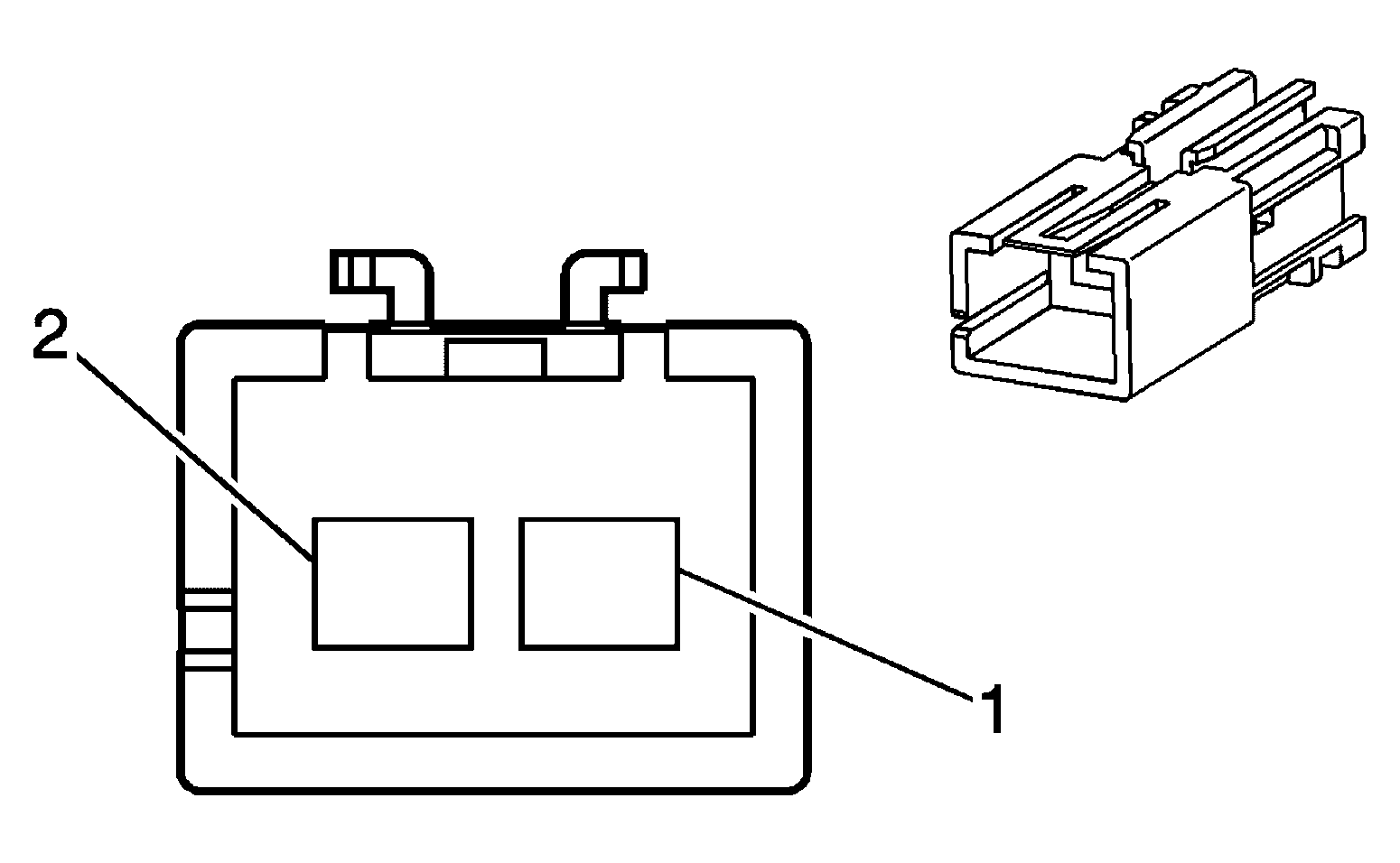

GM886459Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15318080
  • 2-Way F Metri-pack 280 Series (BK)
 Connector Part Information
  • 15336392
  • 2-Way M Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN 9 Park Lamp Supply Voltage 1 BN 9 Park Lamp Supply Voltage
2 PU 293 Rear Defog Element Supply Voltage 2 PU 293 Rear Defog Element Supply Voltage
C498 Body Harness to Right Tail Lamp Harness (Sedan) Connector End View

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-pack 150 Series (GY)
 Connector Part Information
  • 12064763
  • 6-Way M Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage A BN 9 Park Lamp Supply Voltage
B L-BU 20 Stop Lamp Supply Voltage B L-BU 20 Stop Lamp Supply Voltage
C D-BU 15 Right Turn Signal Lamps Supply Voltage C D-BU 15 Right Turn Signal Lamps Supply Voltage
D BK 650 Ground D BK 650 Ground
E L-GRN 24 Backup Lamp Supply Voltage E L-GRN 24 Backup Lamp Supply Voltage
F - - Not Used F - - Not Used
C499 Body Harness to Left Tail Lamp Harness (Sedan) Connector End View

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-pack 150 Series (GY)
 Connector Part Information
  • 12064763
  • 6-Way M Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage A BN 9 Park Lamp Supply Voltage
B L-BU 20 Stop Lamp Supply Voltage B L-BU 20 Stop Lamp Supply Voltage
C D-BU 14 Left Turn Signal Lamps Supply Voltage C D-BU 14 Left Turn Signal Lamps Supply Voltage
D BK 650 Ground D BK 650 Ground
E L-GRN 24 Backup Lamp Supply Voltage E L-GRN 24 Backup Lamp Supply Voltage
F - - Not Used F - - Not Used
C505 Body Harness to Driver Door Harness Connector End View

GM890330Courtesy of GENERAL MOTORS CORP.
GM890333Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT150 Series (BK)
 Connector Part Information
  • 15326840
  • 8-Way M GT150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-GN 89 Driver Mirror Motor Down Control A L-GN 89 Driver Mirror Motor Down Control
B WH 81 Driver Mirror Motor Right Control B WH 81 Driver Mirror Motor Right Control
C OG/BK 781 Driver Door Lock Switch Unlock Signal C RD/BK 780 Driver Door Lock Switch Unlock Signal
D RD/BK 780 Driver Door Lock Switch Lock Signal D OG/BK 781 Driver Door Lock Switch Lock Signal
E OG 340 Battery Positive Voltage E OG 340 Battery Positive Voltage
F L-BU 82 Driver Mirror Motor Left Control F L-BU 82 Driver Mirror Motor Left Control
G L-BU 82 Driver Mirror Motor Left Control G L-BU 82 Driver Mirror Motor Left Control
H - - Not Used H - - Not Used
C507 Body Harness to Driver Door Connector End View

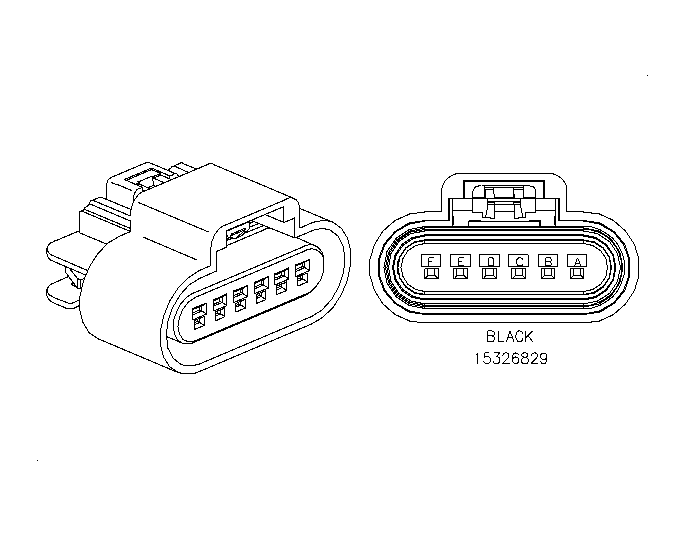

GM890302Courtesy of GENERAL MOTORS CORP.
GM890311Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326829
  • 6-Way F GT 150 Series (BK)
 Connector Part Information
  • 15326833

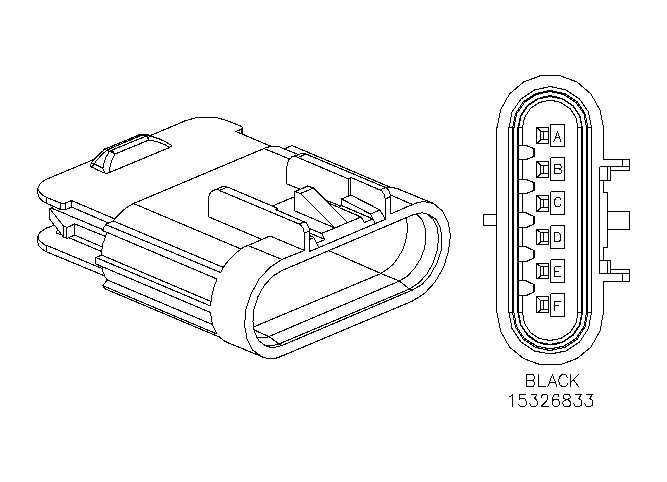

  • 6-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GY 118 Left Front Speaker Output (-) A GY 118 Left Front Speaker Output (-)
B TN 201 Left Front Speaker Output (+) B TN 201 Left Front Speaker Output (+)
C BK 550 Ground C BK 550 Ground
D OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage D OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
E BK 550 Ground E BK 550 Ground
F YE 743 Accessory Voltage F YE 743 Accessory Voltage
C600 Body Harness to Front Passenger Door Harness Connector End View

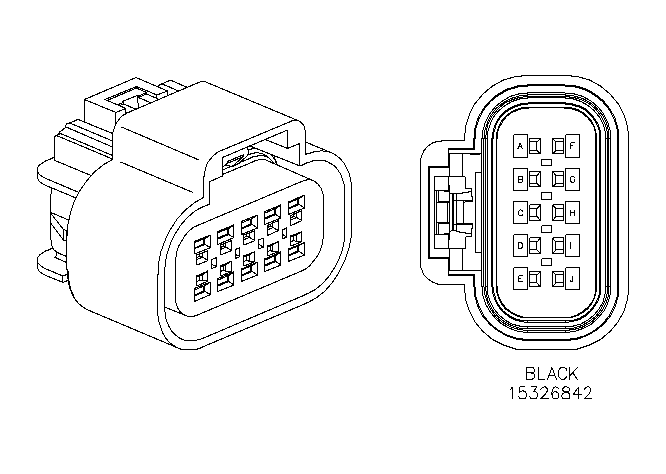

GM890336Courtesy of GENERAL MOTORS CORP.
GM886788Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326842
  • 10-Way F GT 150 Series (BK)
 Connector Part Information
  • 15326847

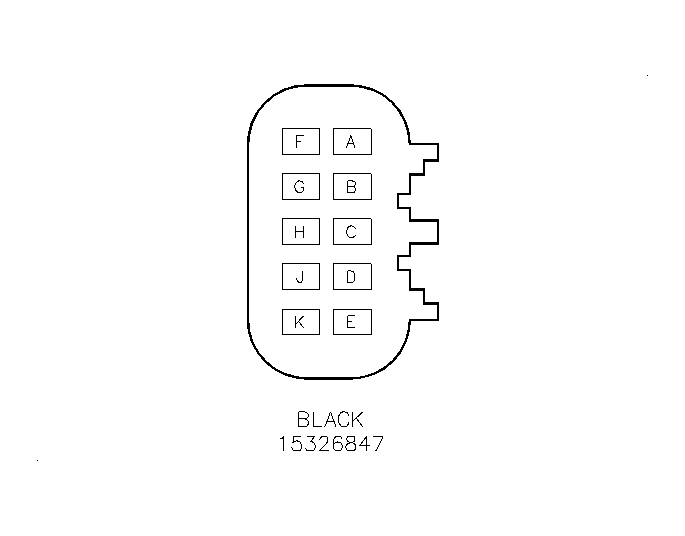

  • 10-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D- GN 117 Right Front Speaker Output (-) A D- GN 117 Right Front Speaker Output (-)
B L-GN 200 Right Front Speaker Output (+) B L-GN 200 Right Front Speaker Output (+)
C BK 450 Ground C BK 450 Ground
D OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage D OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
E L-GN 89 Mirror Motor Down Control E L-GN 89 Mirror Motor Down Control
F WH 81 Driver Mirror Motor Right Control F WH 81 Driver Mirror Motor Right Control
G RD/BK 780 Driver Door Lock Switch Lock Signal G RD/BK 780 Driver Door Lock Switch Lock Signal
H OG/BK 781 Driver Door Lock Switch Unlock Signal H OG/BK 781 Driver Door Lock Switch Unlock Signal
J OG 340 Battery Positive Voltage J OG 340 Battery Positive Voltage
K L-BU 82 Driver Mirror Motor Left Control K L-BU 82 Driver Mirror Motor Left Control
C700 Body Harness to LR Door Harness Connector End View

GM886428Courtesy of GENERAL MOTORS CORP.
GM889998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15318248
  • 15 Way F (BK)
 Connector Part Information
  • 15305570
  • 15-Way M (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1-2 -- -- Not Used 1-2 -- -- Not Used
3 GY 295 Door Lock Actuator Lock Control 3 GY 295 Door Lock Actuator Lock Control
4 PU 169 Power Window Master Switch Left Rear Down Signal 4 PU 169 Power Window Master Switch Left Rear Down Signal
5 D-GN 168 Power Window Master Switch Left Rear Up Signal 5 D-GN 168 Power Window Master Switch Left Rear Up Signal
6 TN 294 Door Lock Actuator Unlock Control 6 TN 294 Door Lock Actuator Unlock Control
7-9 -- -- Not Used 7-9 -- -- Not Used
10 D-BU 1307 Power Window Master Switch Lockout Control 10 D-BU 1307 Power Window Master Switch Lockout Control
11 L-BU/BK 747 Left Rear Door Ajar Switch Signal 11 L-BU/BK 747 Left Rear Door Ajar Switch Signal
12 YE 116 Left Rear Speaker Output (-) 12 YE 116 Left Rear Speaker Output (-)
13 WH 199 Left Rear Speaker Output (+) 13 WH 199 Left Rear Speaker Output (+)
14 -- -- Not Used 14 -- -- Not Used
15 OG 1732 Courtesy Lamps Supply Voltage 15 OG 1732 Courtesy Lamps Supply Voltage
C800 Inline Body to RR Door Harness Connector End View

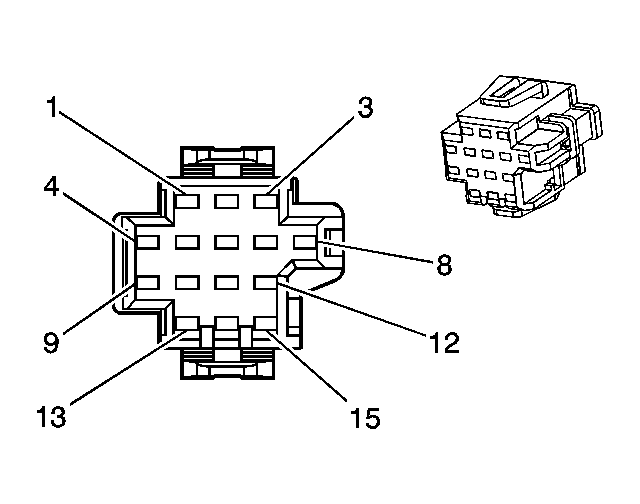

GM886428Courtesy of GENERAL MOTORS CORP.

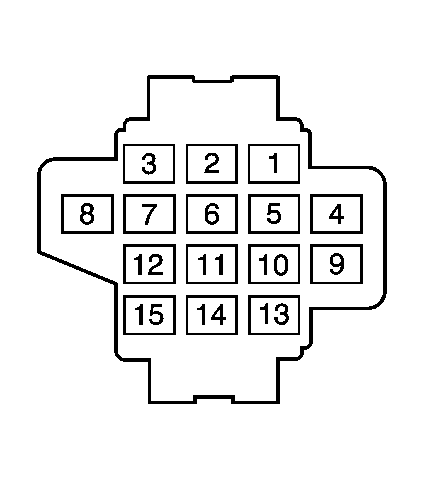

GM889998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15318248
  • 15 Way F (BK)
 Connector Part Information
  • 15305570
  • 15-Way M Black
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1-2 -- -- Not Used 1-2 -- -- Not Used
3 GY 295 Door Lock Actuator Lock Control 3 GY 295 Door Lock Actuator Lock Control
4 PU 171 Power Window Master Switch Right Rear Down Signal 4 PU 171 Power Window Master Switch Right Rear Down Signal
5 L-GN 170 Power Window Master Switch Right Rear Up Signal 5 L-GN 170 Power Window Master Switch Right Rear Up Signal
6 TN 294 Door Lock Actuator Unlock Control 6 TN 294 Door Lock Actuator Unlock Control
7-9 -- -- Not Used 7-9 -- -- Not Used
10 D-BU 1307 Power Window Master Switch Lockout Control 10 D-BU 1307 Power Window Master Switch Lockout Control
11 L-GN/BK 748 Right Rear Door Ajar Switch Signal 11 L-GN/BK 748 Right Rear Door Ajar Switch Signal
12 L-BU 115 Right Rear Speaker Output (-) 12 L-BU 115 Right Rear Speaker Output (-)
13 D-BU 46 Right Rear Speaker Output (+) 13 D-BU 46 Right Rear Speaker Output (+)
14 -- -- Not Used 14 -- -- Not Used
15 OG 1732 Courtesy Lamps SuPUy Voltage 15 OG 1732 Courtesy Lamps SuPUy Voltage
scientia non olet · About LEMON Manuals
