Disassembled Views

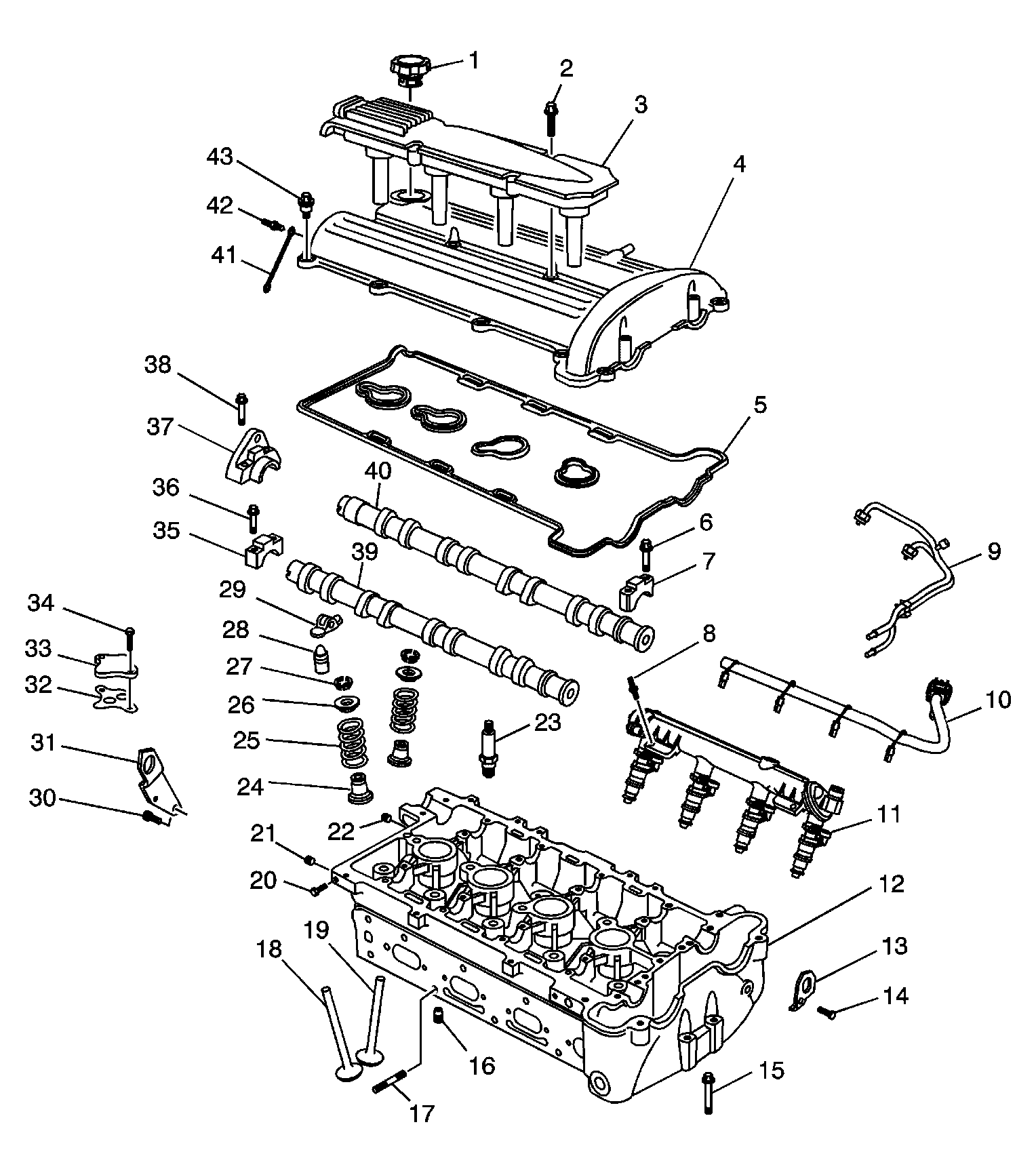

Fig 1: Cylinder Head and Components
GM898885Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Oil Fill Cap
2 Ignition Module and Coil Housing Assembly Bolt
3 Ignition Module and Coil Housing Assembly
4 Camshaft Cover
5 Camshaft Cover Gasket
6 Camshaft Bearing Cap Bolt
7 Camshaft Bearing Cap
8 Fuel Rail Assembly Bolt
9 Fuel Line Assembly
10 Injector Wiring Harness
11 Fuel Rail Assembly (with Fuel Injectors)
12 Cylinder Head
13 Front Engine Lift Bracket
14 Engine Lift Bracket Bolt
15 Cylinder Head Bolt
16 Oil Flow Check Valve
17 Exhaust Manifold Stud
18 Exhaust Valve
19 Intake Valve
20 Camshaft Cover Grounding Strap Bolt
21 Cylinder Head Oil Passage Plug
22 Cylinder Head Oil Passage Plug
23 Spark Plug
24 Valve Stem Seal
25 Valve Spring
26 Valve Spring Retainer
27 Valve Keys
28 Hydraulic Lash Adjuster
29 Roller Finger Follower
30 Rear Engine Lift Bracket Bolt
31 Rear Engine Lift Bracket
32 EGR Port Cover Gasket
33 EGR Port Cover
34 EGR Port Cover Bolt
35 Camshaft Bearing Cap
36 Camshaft Bearing Cap Bolt
37 Camshaft Bearing Cap
38 Camshaft Bearing Cap Bolt
39 Exhaust Camshaft
40 Intake Camshaft
41 Camshaft Cover Grounding Strap
42 Camshaft Cover Grounding Strap Bolt
43 Camshaft Cover Bolt

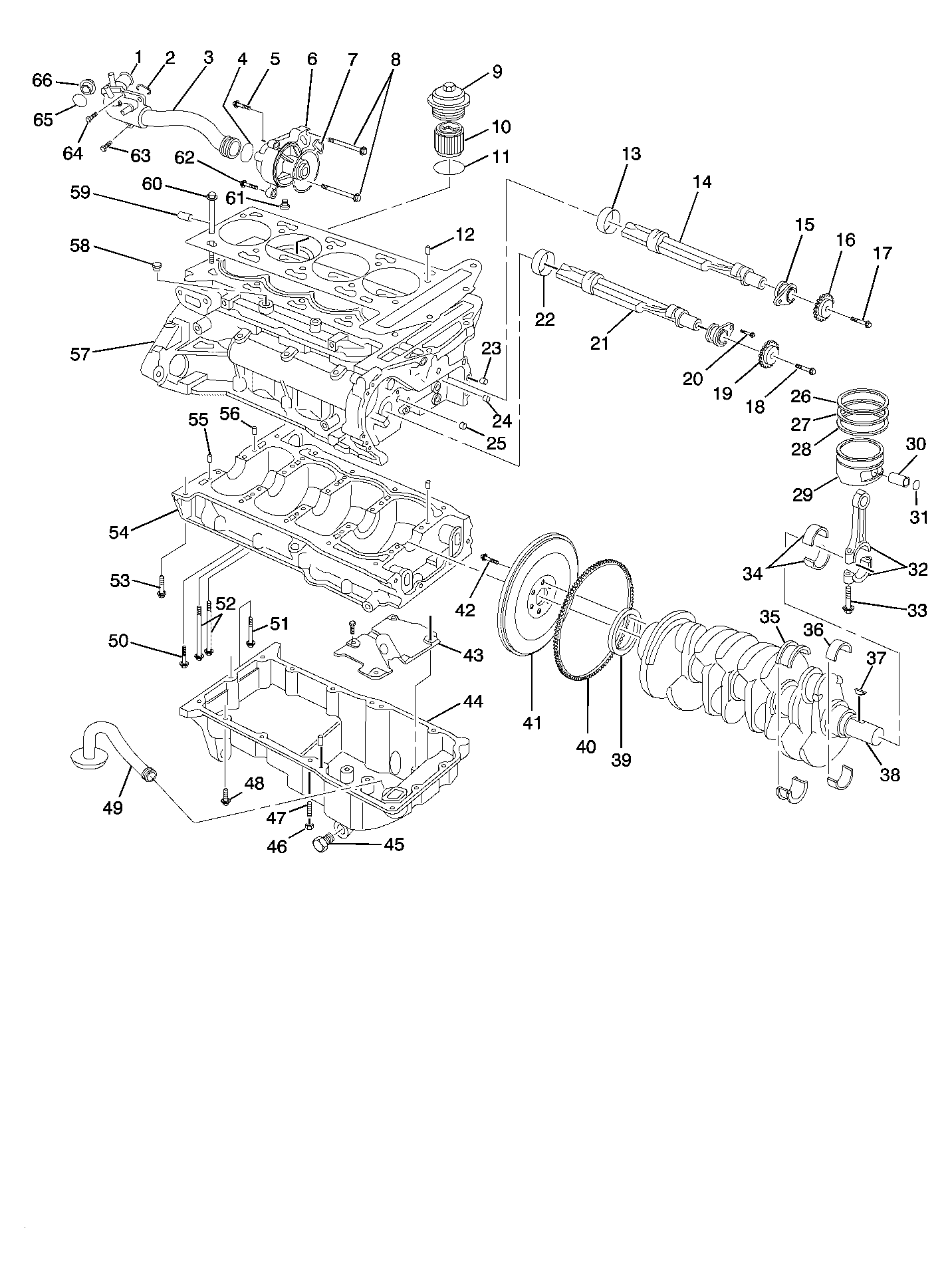

Fig 2: Engine Block and Components
GM894923Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Thermostat Housing
2 Thermostat Housing to Engine Block Seal
3 Water Transfer Pipe
4 Water Transfer Pipe to Water Pump Seal
5 Water Pump Bolt
6 Water Pump
7 Water Pump to Engine Block Seal
8 Water Pump Bolt
9 Oil Filter Cap
10 Oil Filter
11 Oil Filter to Engine Block Seal
12 Cylinder Head Alignment Pin
13 Intake Balance Shaft Rear Bearing
14 Intake Balance Shaft
15 Intake Balance Shaft Bearing Carrier
16 Intake Balance Shaft Drive Sprocket
17 Intake Balance Shaft Drive Sprocket Bolt
18 Exhaust Balance Shaft Drive Sprocket Bolt
19 Exhaust Balance Shaft Drive Sprocket
20 Exhaust Balance Shaft Bearing Carrier Bolt
21 Exhaust Balance Shaft
22 Exhaust Balance Shaft Rear Bearing Engine
23 Front Cover Alignment Pin
24 Engine Oil Passage Plug
25 Engine Oil Passage Plug
26 Top Compression Piston Ring
27 Second Compression Piston Ring
28 Piston Oil Ring Assembly
29 Piston
30 Piston Pin
31 Piston Pin Retainer
32 Connecting Rod
33 Connecting Rod Cap Bolt
34 Connecting Rod Bearing
35 Crankshaft Thrust Bearing
36 Crankshaft Bearing
37 Crankshaft Damper Alignment Key
38 Crankshaft
39 Crankshaft Rear Seal
40 Starter Ring Gear
41 Flywheel
42 Flywheel to Crankshaft Bolt
43 Engine Oil Pan Baffle
44 Engine Oil Pan
45 Pan Drain Plug
46 Engine Oil Pan Nut
47 Engine Oil Pan Stud
48 Engine Oil Pan Bolt
49 Engine Oil Pickup
50 Lower Crankcase to Engine Block Bolt
51 Lower Crankcase to Engine Block Bolt
52 Crankshaft Bearing Bolt
53 Lower Crankcase to Engine Block Bolt
54 Lower Crankcase
55 Lower Crankcase Alignment Pin
56 Lower Crankcase Alignment Pin
57 Engine Block
58 Water Jacket Plug
59 Engine Block to Transmission Alignment Pin
60 Cylinder Head to Engine Block Bolt
61 Water Jacket Drain Plug
62 Water Pump to Engine Block Bolt
63 Thermostat Housing to Engine Block Bolt
64 Thermostat Housing to Engine Block Bolt
65 Thermostat Gasket
66 Thermostat

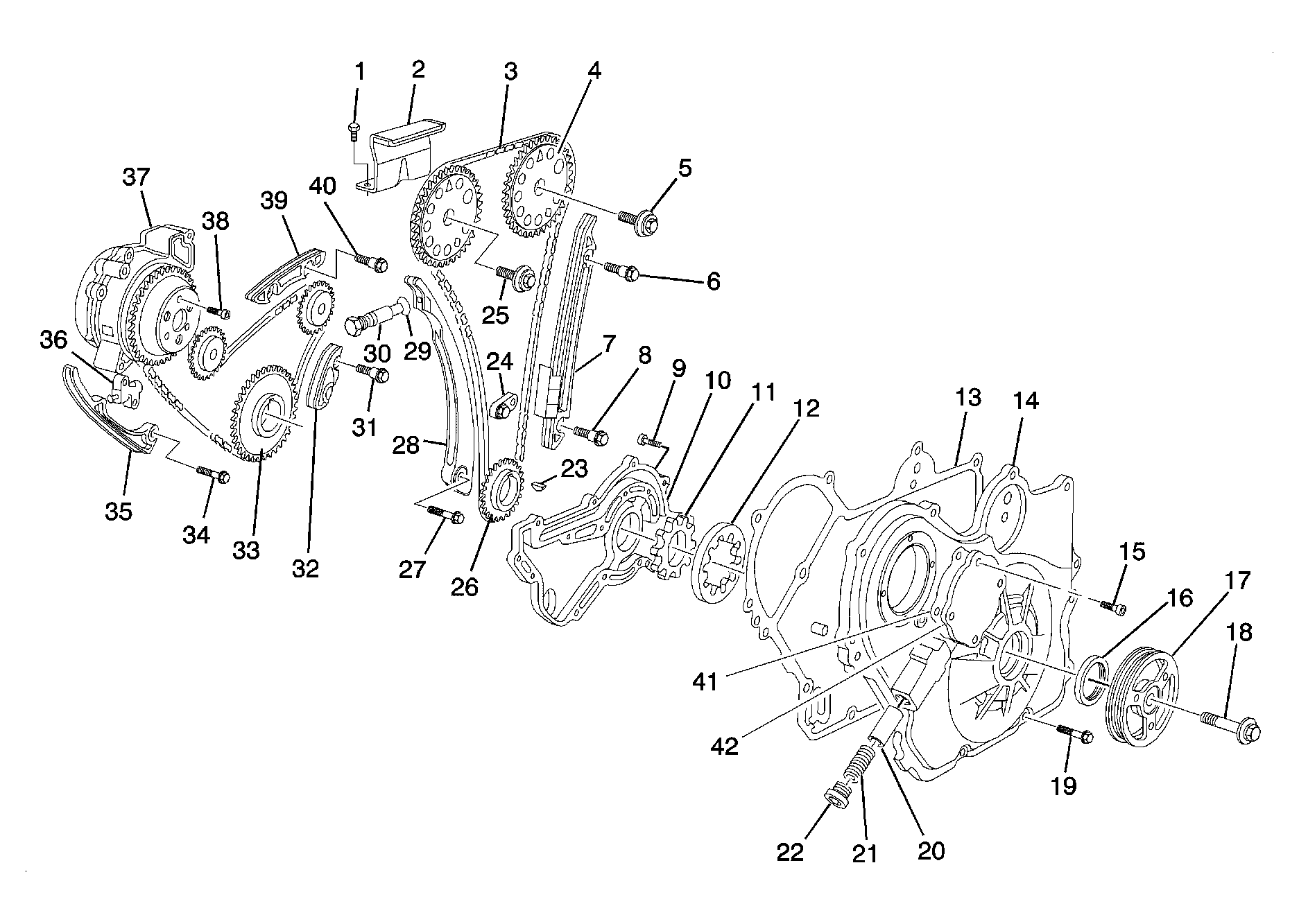

Fig 3: Timing Chain and Components
GM898887Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Upper Timing Chain Guide Bolt
2 Upper Timing Chain Guide
3 Timing Chain
4 Intake Camshaft Sprocket
5 Intake Camshaft Sprocket to Camshaft Bolt
6 Fixed Timing Chain Guide Bolt
7 Fixed Timing Chain Guide
8 Fixed Timing Chain Guide Bolt
9 Oil Pump Cover Bolt
10 Oil Pump Cover
11 Oil Pump Inner Gerotor
12 Oil Pump Outer Gerotor
13 Engine Front Cover Gasket
14 Engine Front Cover
15 Engine Front Cover Access Plate Bolt
16 Front Crankshaft Seal
17 Crankshaft Damper
18 Crankshaft Damper Bolt
19 Engine Front Cover Bolt
20 Oil Pressure Relief Valve Plunger
21 Oil Pressure Relieve Valve Spring
22 Oil Pressure Relief Valve Plug
23 Crankshaft Sprocket Alignment Key
24 Timing Chain Oil Nozzle
25 Exhaust Camshaft Sprocket to Camshaft Bolt
26 Timing Chain Drive Sprocket
27 Adjustable Timing Chain Guide Bolt
28 Adjustable Timing Chain Guide
29 Timing Chain Tensioner Seal
30 Timing Chain Tensioner
31 Drive Chain Guide Bolt
32 Balance Shaft Drive Chain Guide
33 Balance Shaft Drive Sprocket
34 Adjustable Balance Shaft Drive Chain Guide Bolt
35 Adjustable Balance Shaft Drive Chain Guide
36 Balance Shaft Drive Chain Tensioner Assembly
37 Water Pump
38 Water Pump Drive Sprocket Bolt
39 Balance Shaft Drive Chain Guide
40 Balance Shaft Drive Chain Guide Bolt
41 Engine Front Cover Access Plate Seal
42 Engine Front Cover Access Plate

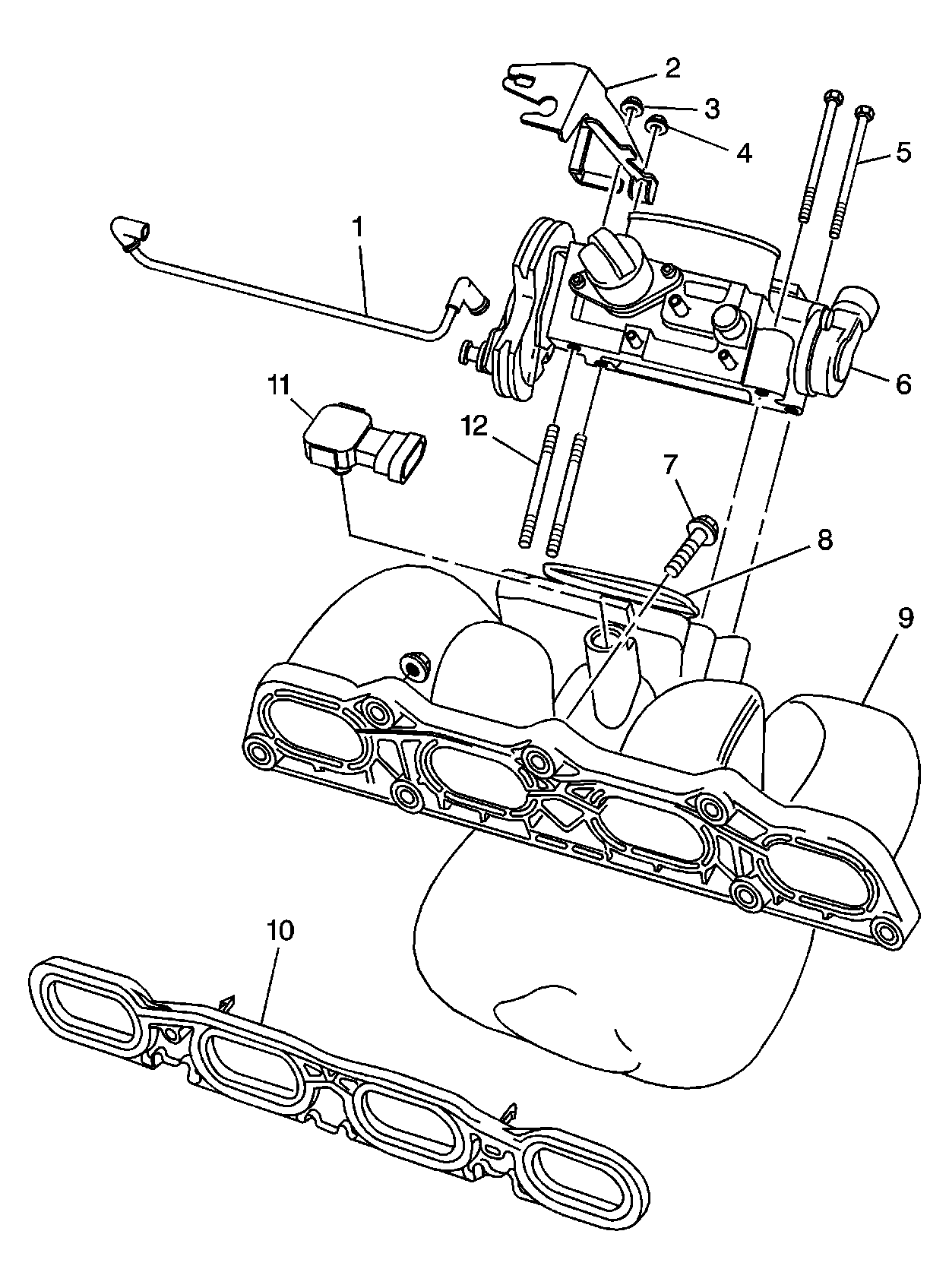

Fig 4: Intake Manifold and Components
GM412099Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pressure Regulator Vacuum Line
2 Accelerator Control Cable Bracket
3 Throttle Body Nut
4 Throttle Body Nut
5 Throttle Body Bolt
6 Throttle Body
7 Intake Manifold Bolt
8 Throttle Body Seal
9 Intake Manifold
10 Intake Manifold Gasket
11 Map Sensor
12 Throttle Body Stud

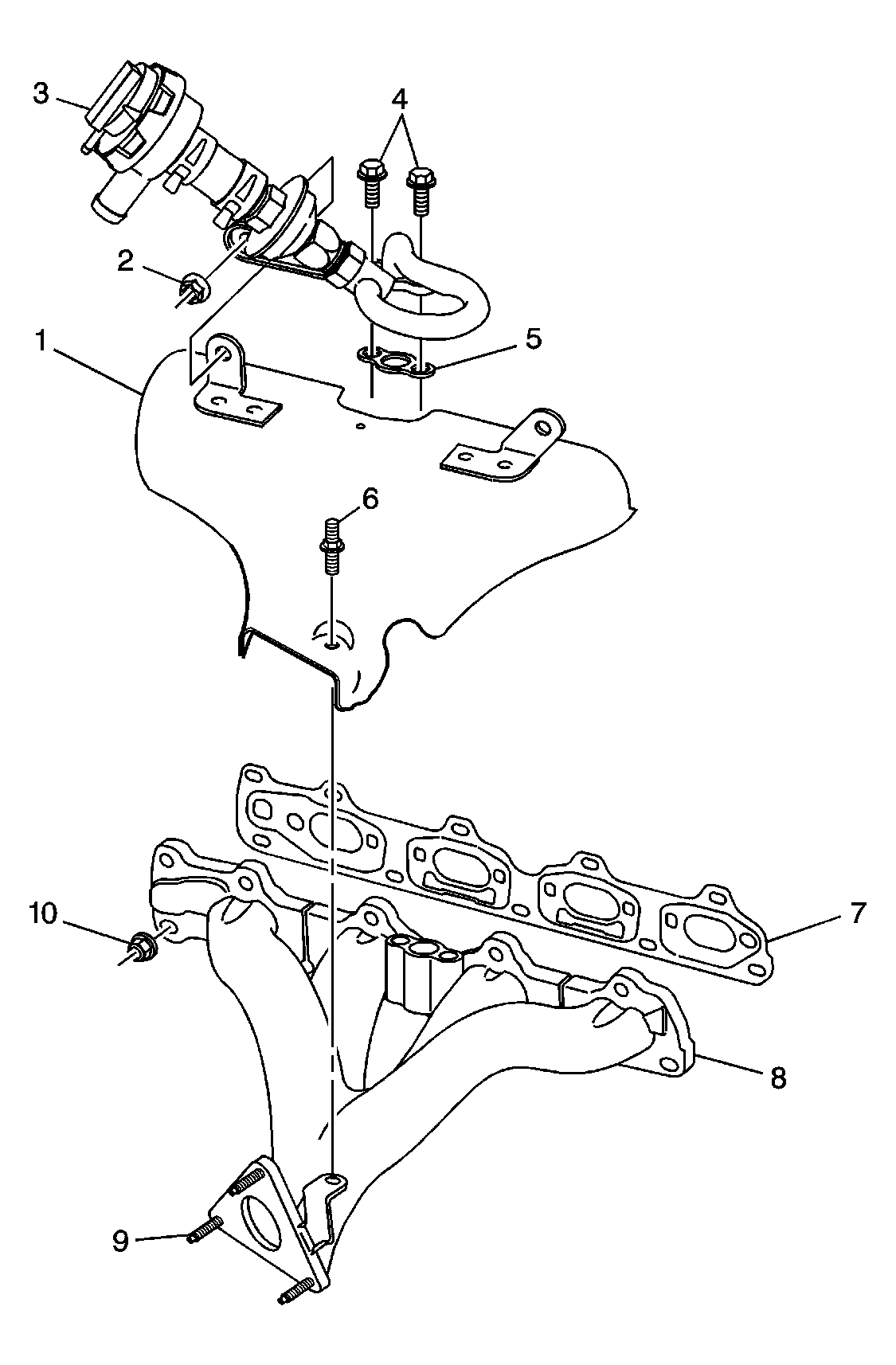

Fig 5: Exhaust Manifold and Components
GM675355Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exhaust Manifold Heat Shield
2 Air Pipe Nut
3 Air Pipe
4 Air Pipe Bolt
5 Air Pipe Gasket
6 Exhaust Manifold Heat Shield Stud
7 Exhaust Manifold Gasket
8 Exhaust Manifold
9 Exhaust Flex Decoupler Stud
10 Exhaust Manifold Nut

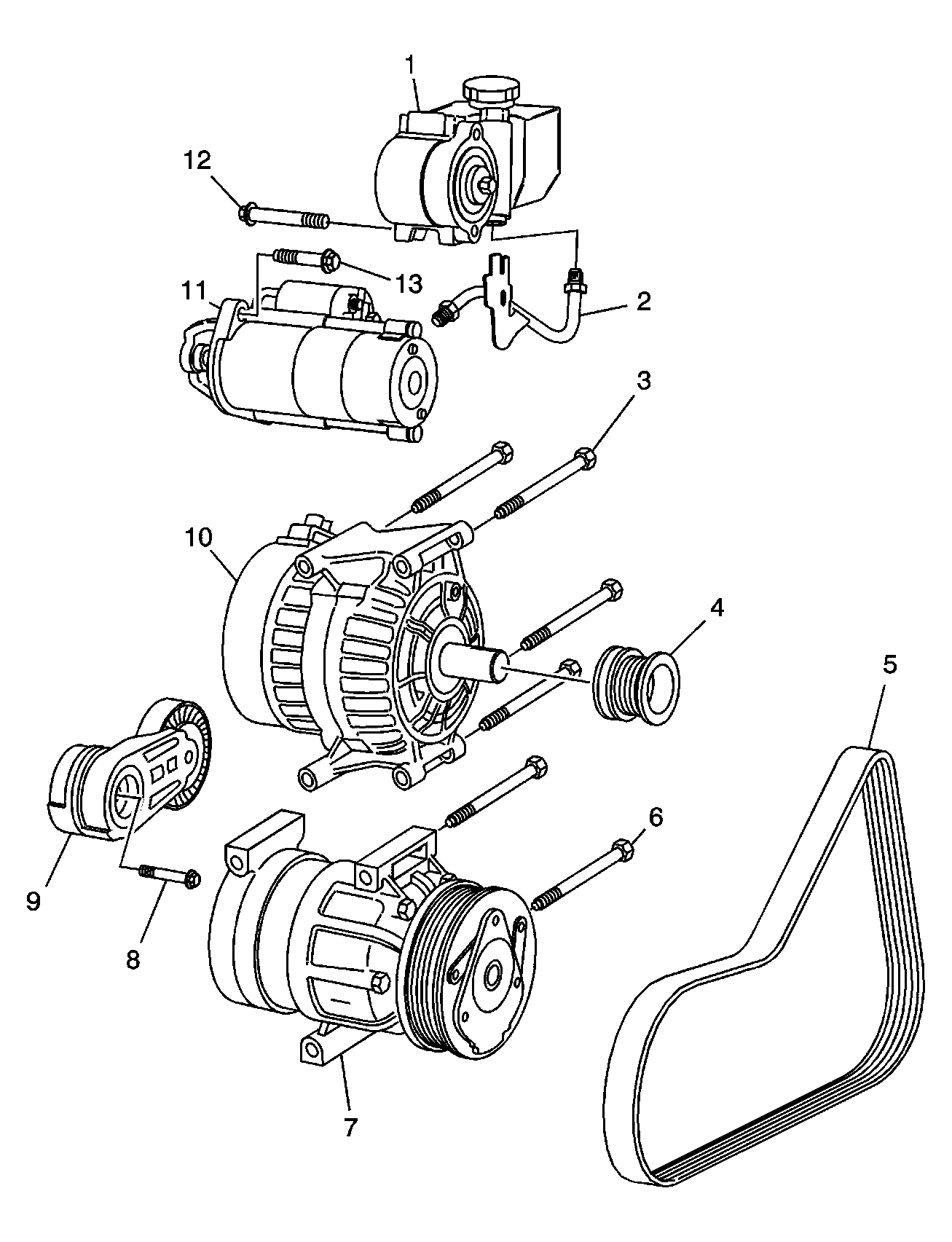

Fig 6: Accessory and Engine Drive Belt Components
GM894930Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Steering Pump
2 Power Steering Pressure Line
3 Generator Bolt
4 Generator Pulley
5 Accessory Drive Belt
6 Air Compressor Bolt
7 Air Conditioning Compressor
8 Accessory Drive Belt Tensioner Bolt
9 Accessory Drive Belt Tensioner
10 Generator Assembly
11 Starter Assembly
12 Power Steering Pump Bolt
13 Starter Assembly to Engine Block Bolt
