Shift Control Assembly: Removal

Remove the left front wheel.
Disconnect the shift cables from the transaxle. See Fig 1 .
Shift the transaxle into Neutral.
Remove the shifter guide bolt. See Fig 2 .
Remove the 5 shifter retaining bolts. See Fig 3 .
Remove the shifter assembly from the vehicle.

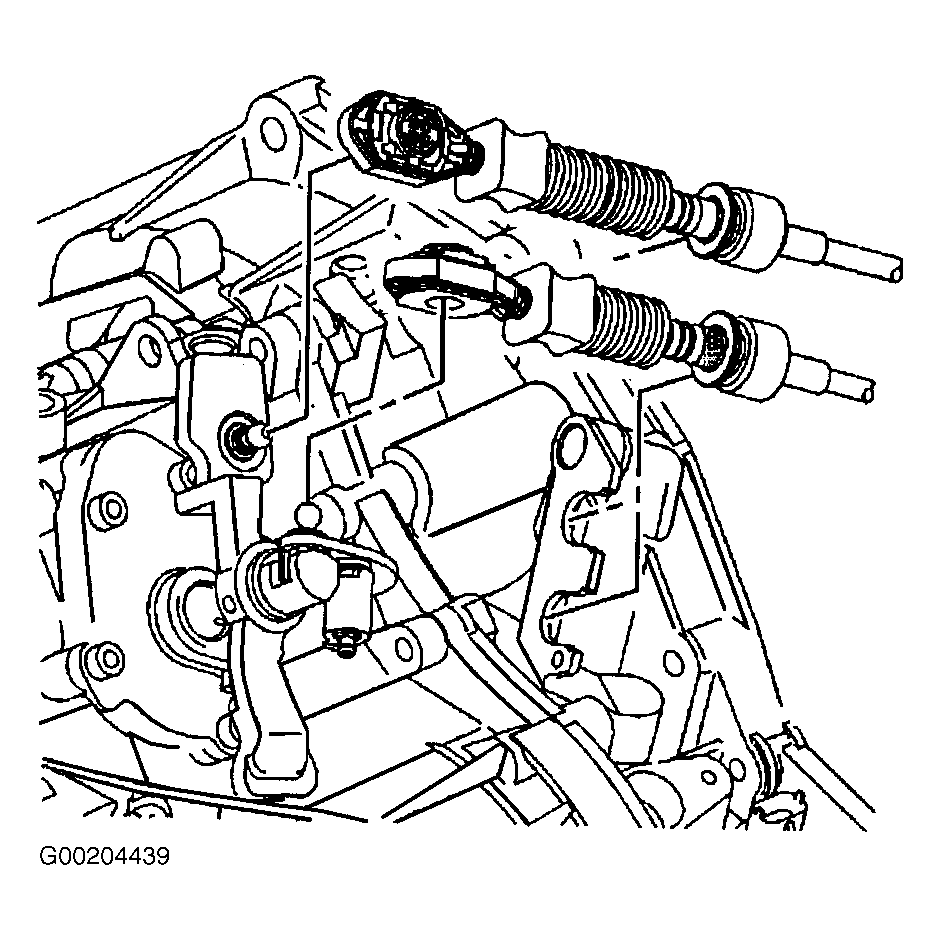

Fig 1: Disconnecting Shift Cables

G00204439

Courtesy of GENERAL MOTORS CORP.

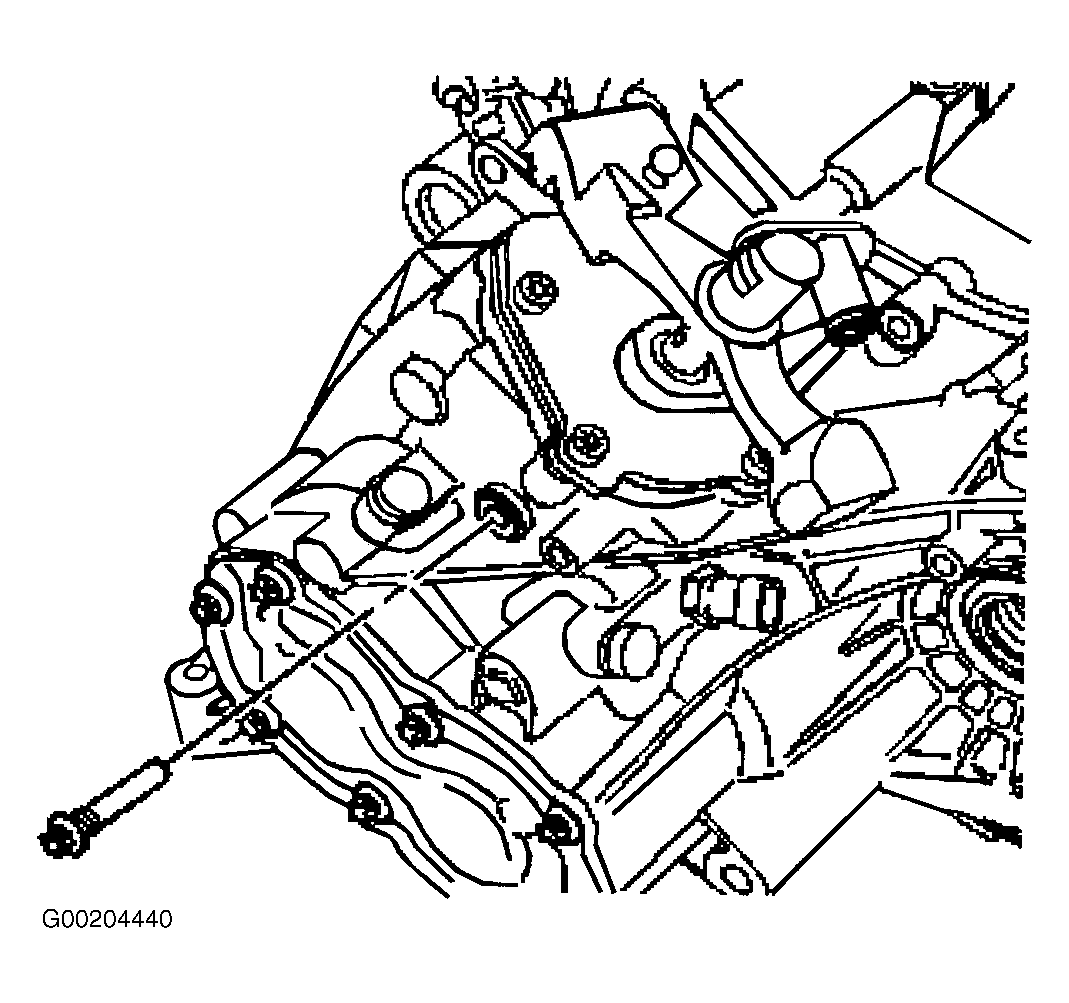

Fig 2: Removing Shifter Guide Bolt

G00204440

Courtesy of GENERAL MOTORS CORP.

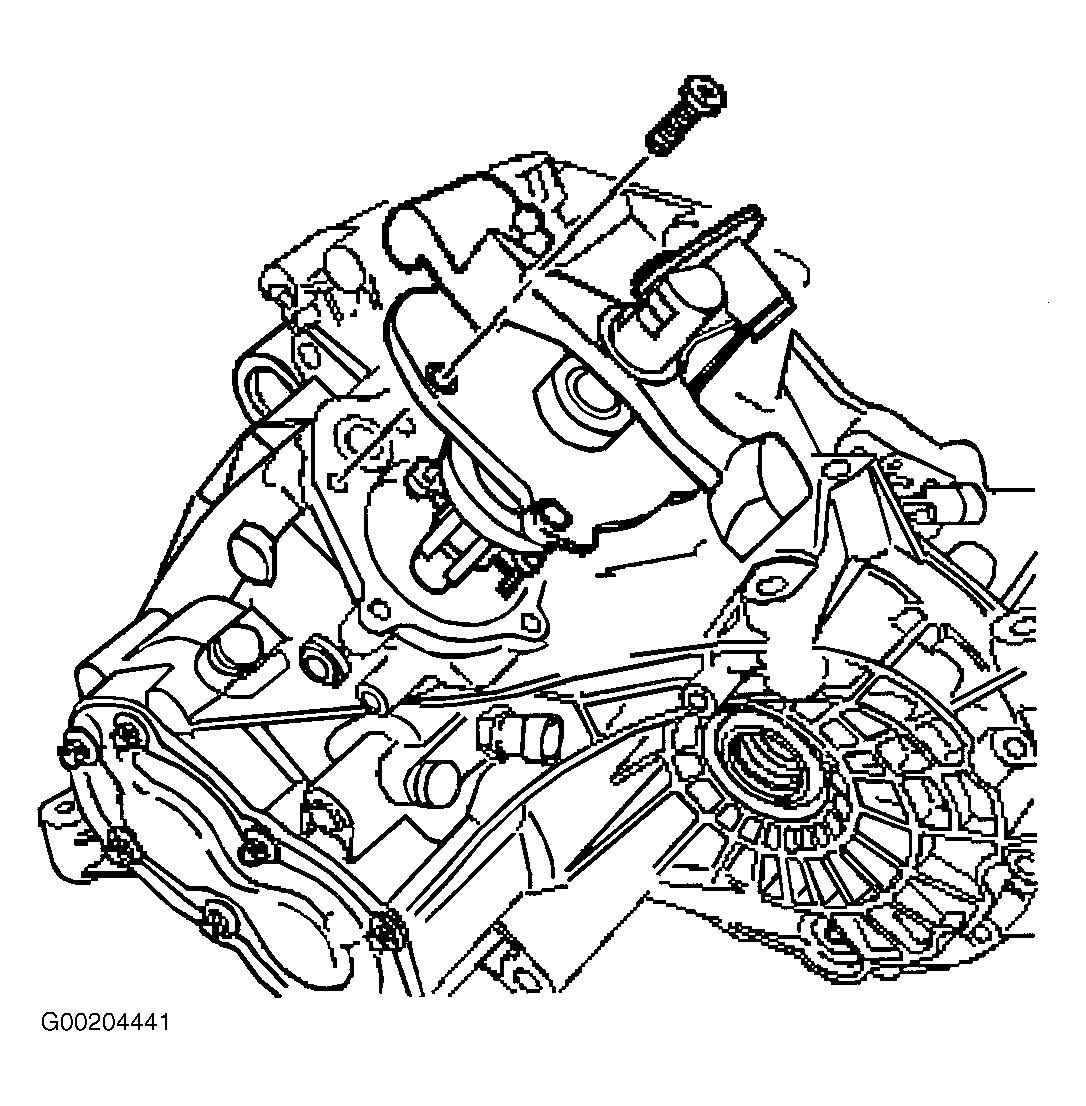

Fig 3: Removing Shifter Assembly

G00204441

Courtesy of GENERAL MOTORS CORP.
