Checking Fluid Levels

CAUTION: Inspect the fluid level only when the engine is off. Ensure the vehicle is level. The transaxle must be cold.
  1. Remove the left front wheel.
  2. Raise and support the vehicle.
  3. Remove the level check plug. See Fig 1 .
  4. Verify that the fluid is up to the opening.
  5. If no fluid is visible, add appropriate transaxle fluid until the level check opening begins to leak fluid. See RECOMMENDED FLUIDS  .
  6. Install the fluid level check plug. Tighten check plug to specification. See TORQUE SPECIFICATIONS  .
  7. Install the left front wheel.

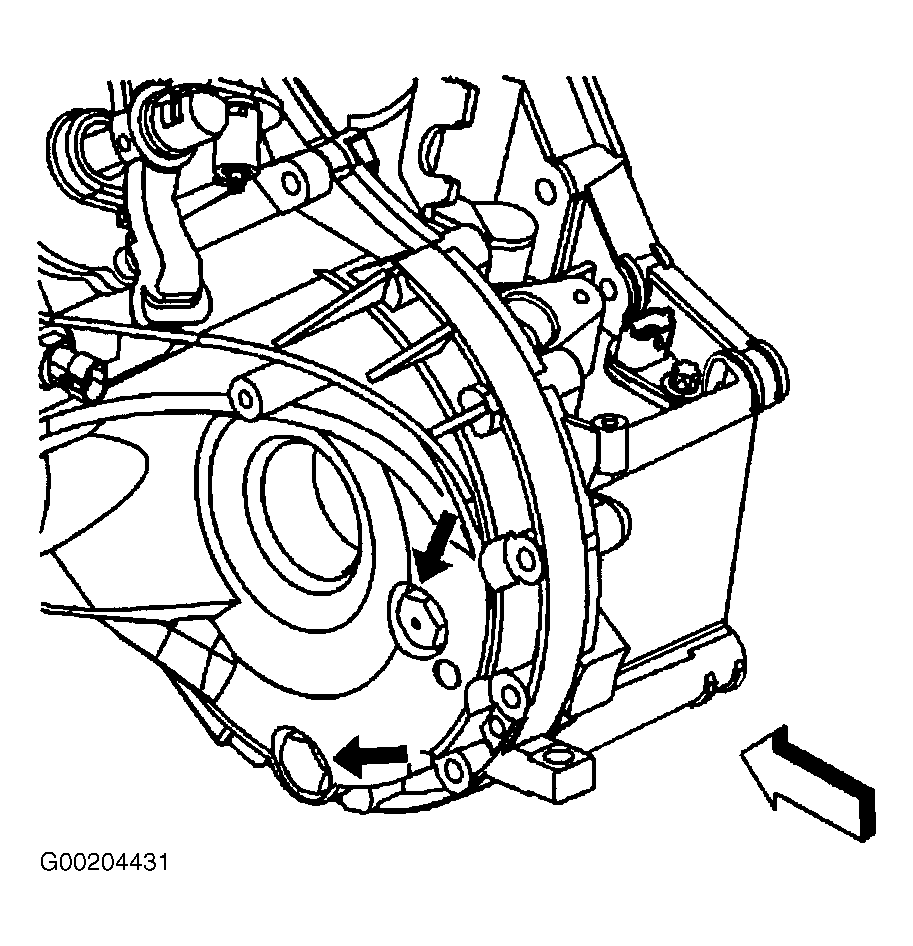

Fig 1: Locating Fluid Level Check Plug & Fill/Drain Plugs
G00204431Courtesy of GENERAL MOTORS CORP.
