Transmission Control Module Connector End View C2 (1 Of 2)

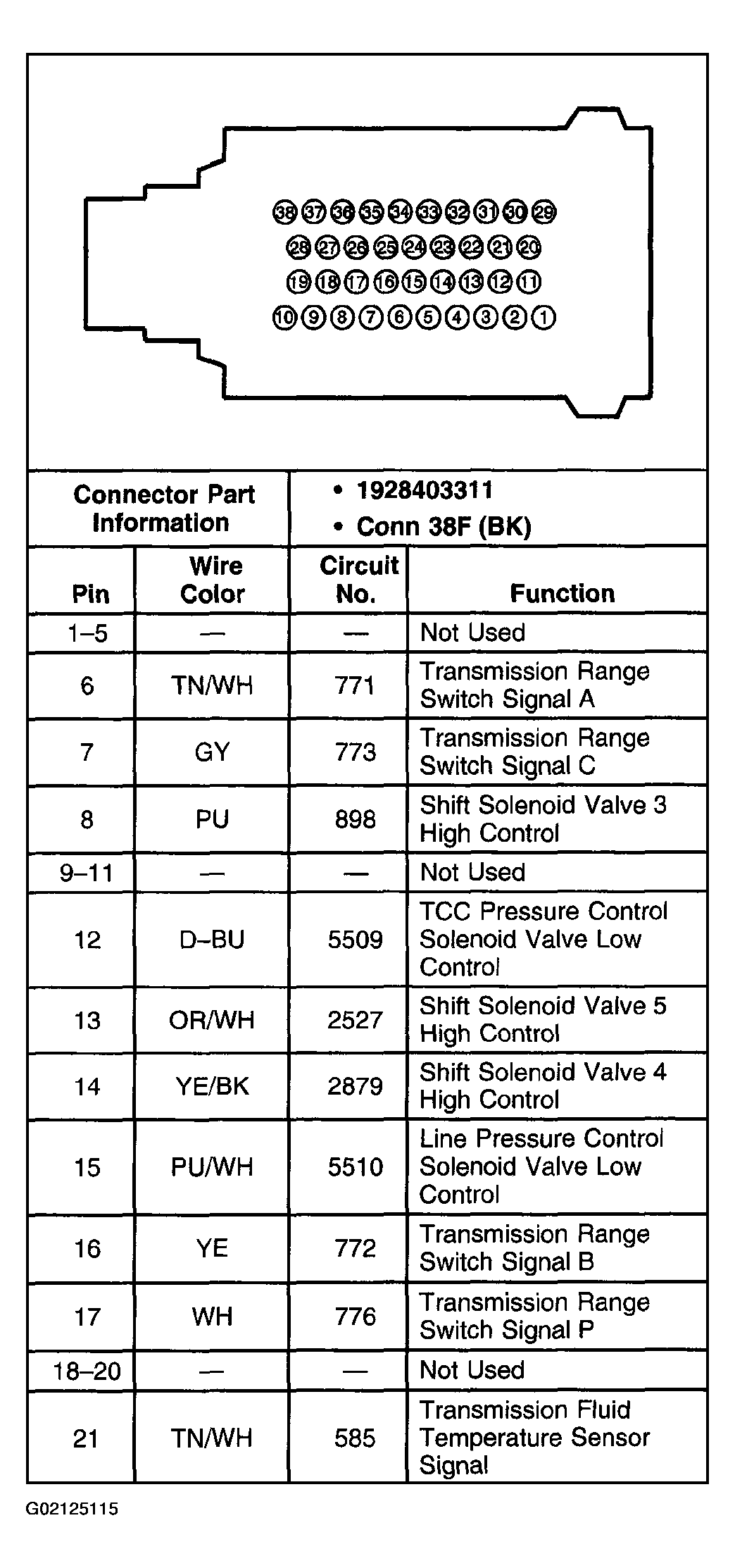

Fig 1: Transmission Control Module C2 (1 Of 2)

G02125115

Courtesy of GENERAL MOTORS CORP.
