Transmission Control Module Harness 64-Way Connector End View C1
Transmission Control Module Harness 64-Way Connector End View C1

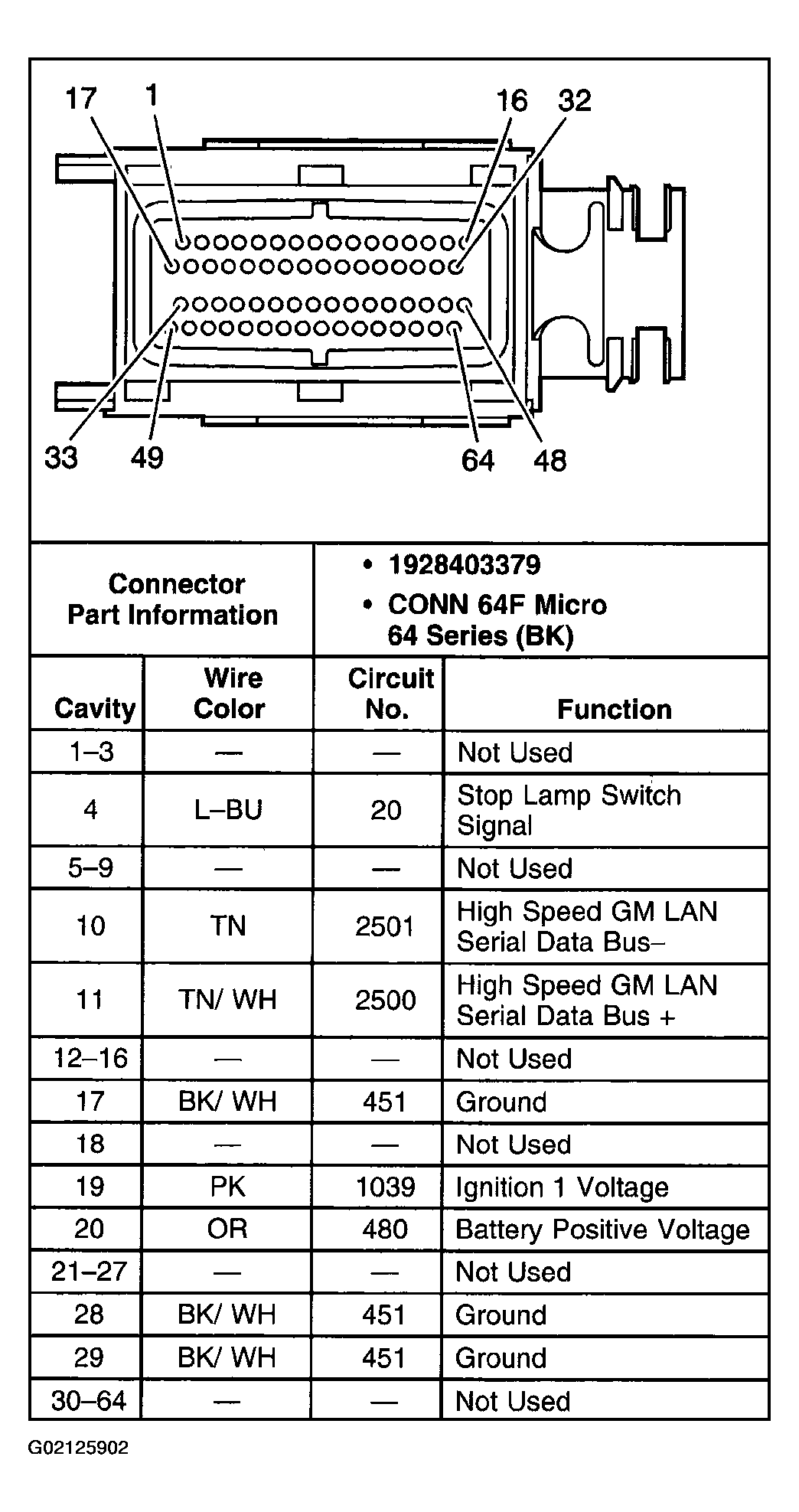

Fig 1: Transmission Control Module Harness 64-Way C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
