Transmission Control Module Connector End View C1

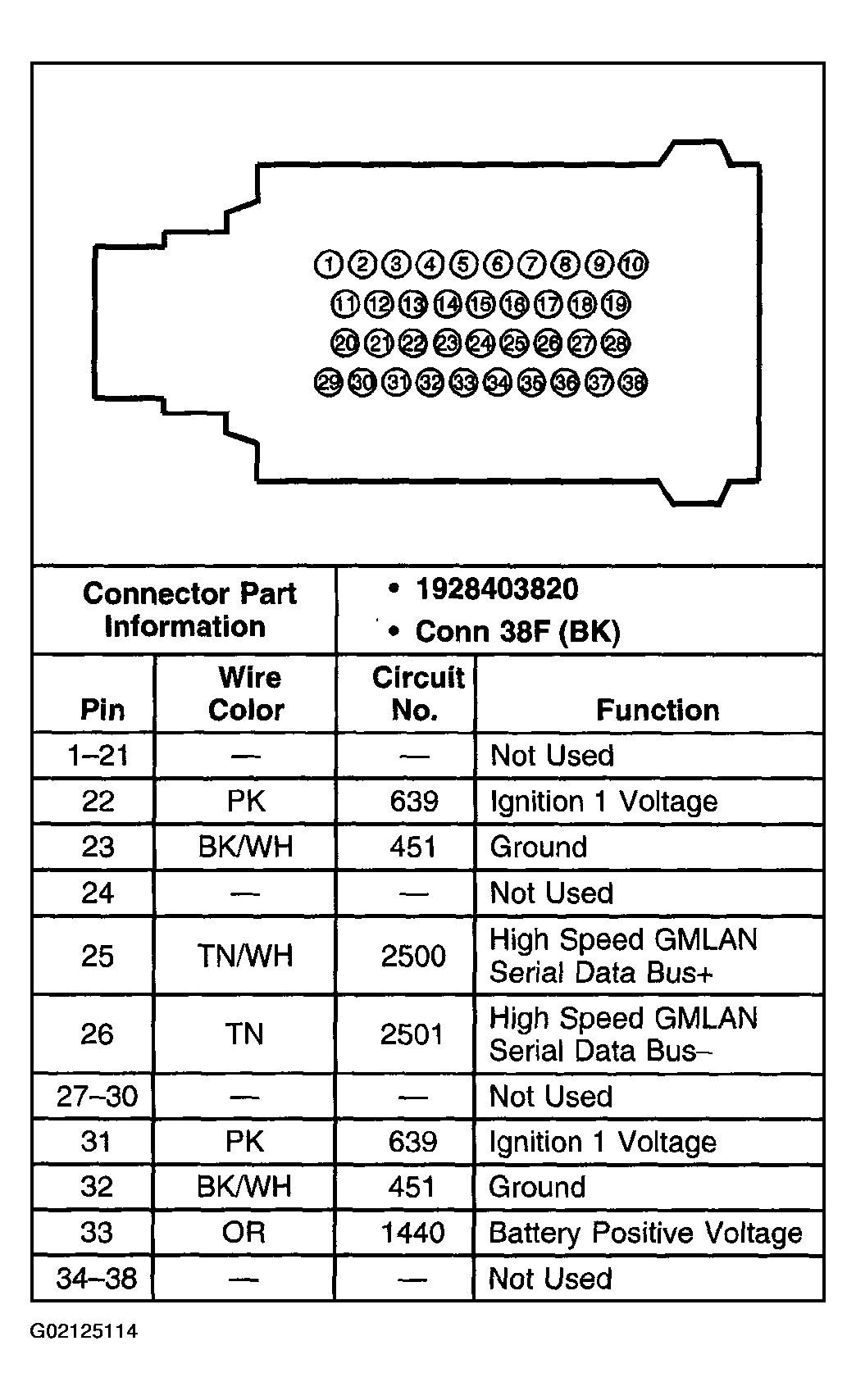

Fig 1: Transmission Control Module C1

G02125114

Courtesy of GENERAL MOTORS CORP.
