Engine Control Module Location

The ECM connector is located on the left side of the engine compartment.

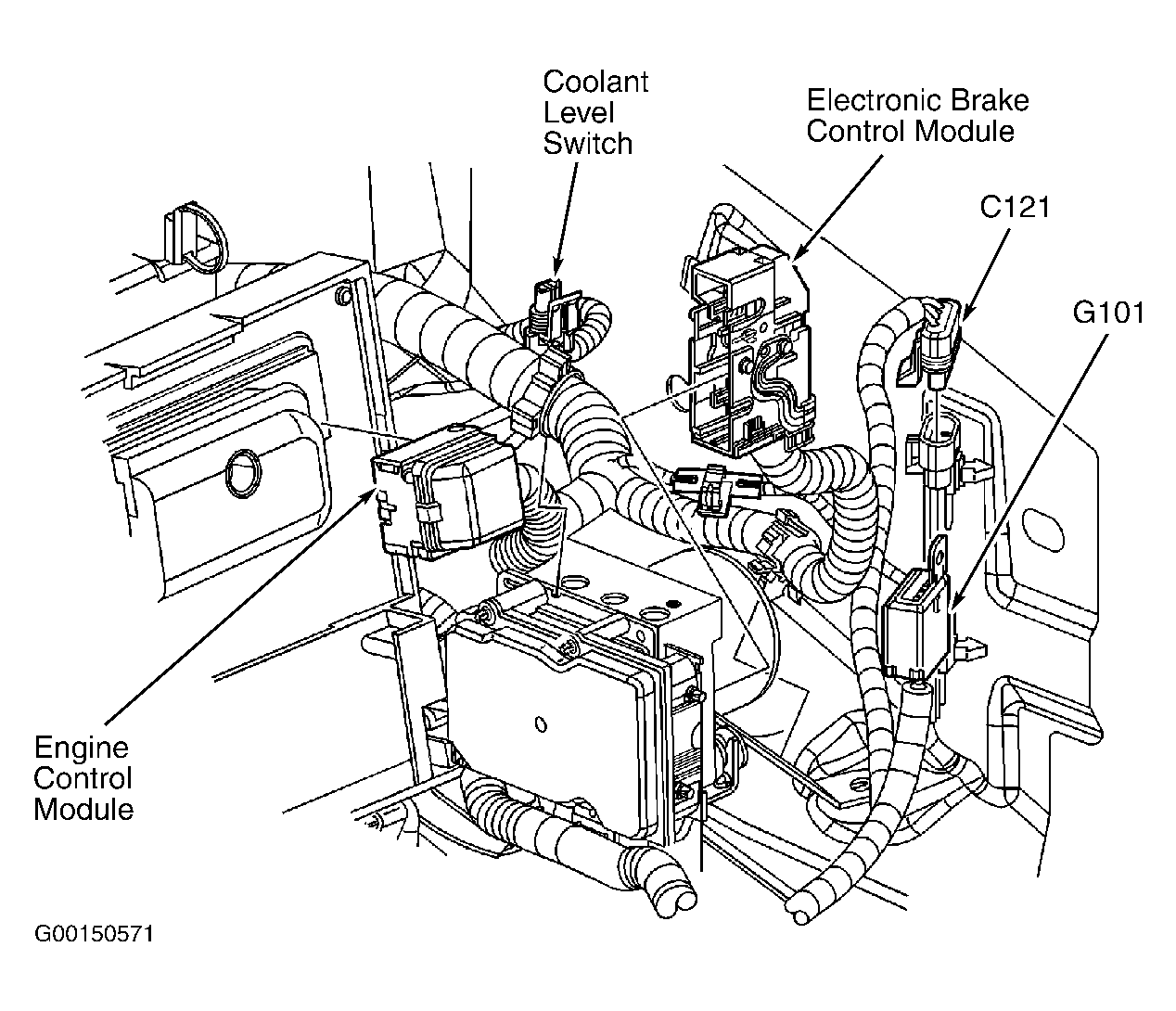

Fig 1: Locating ECM Connector

G00150571

Courtesy of GENERAL MOTORS CORP.
