HO2S Bank 2 Sensor 2 Connector End View

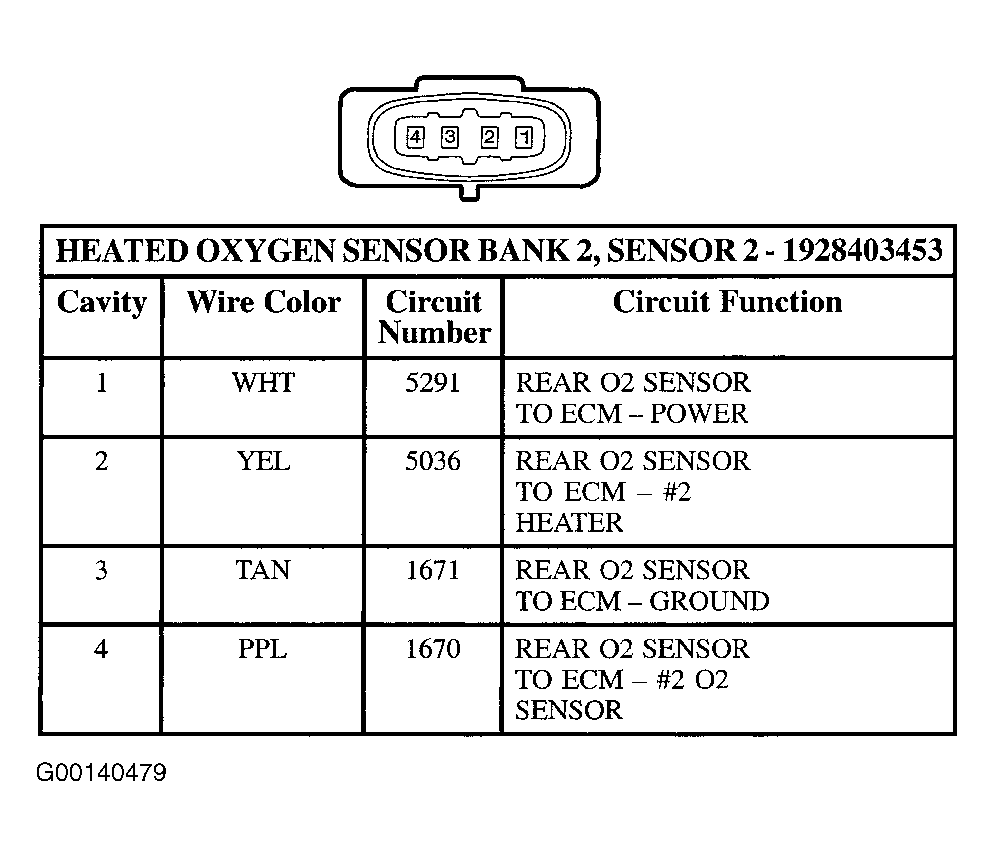

Fig 1: HO2S Bank 2 Sensor 2

G00140479

Courtesy of GENERAL MOTORS CORP.
