Diagnostic Aids

If the malfunction is intermittent check for poor connections at the suspect module. Wiggling harness wiring may help in locating the fault.

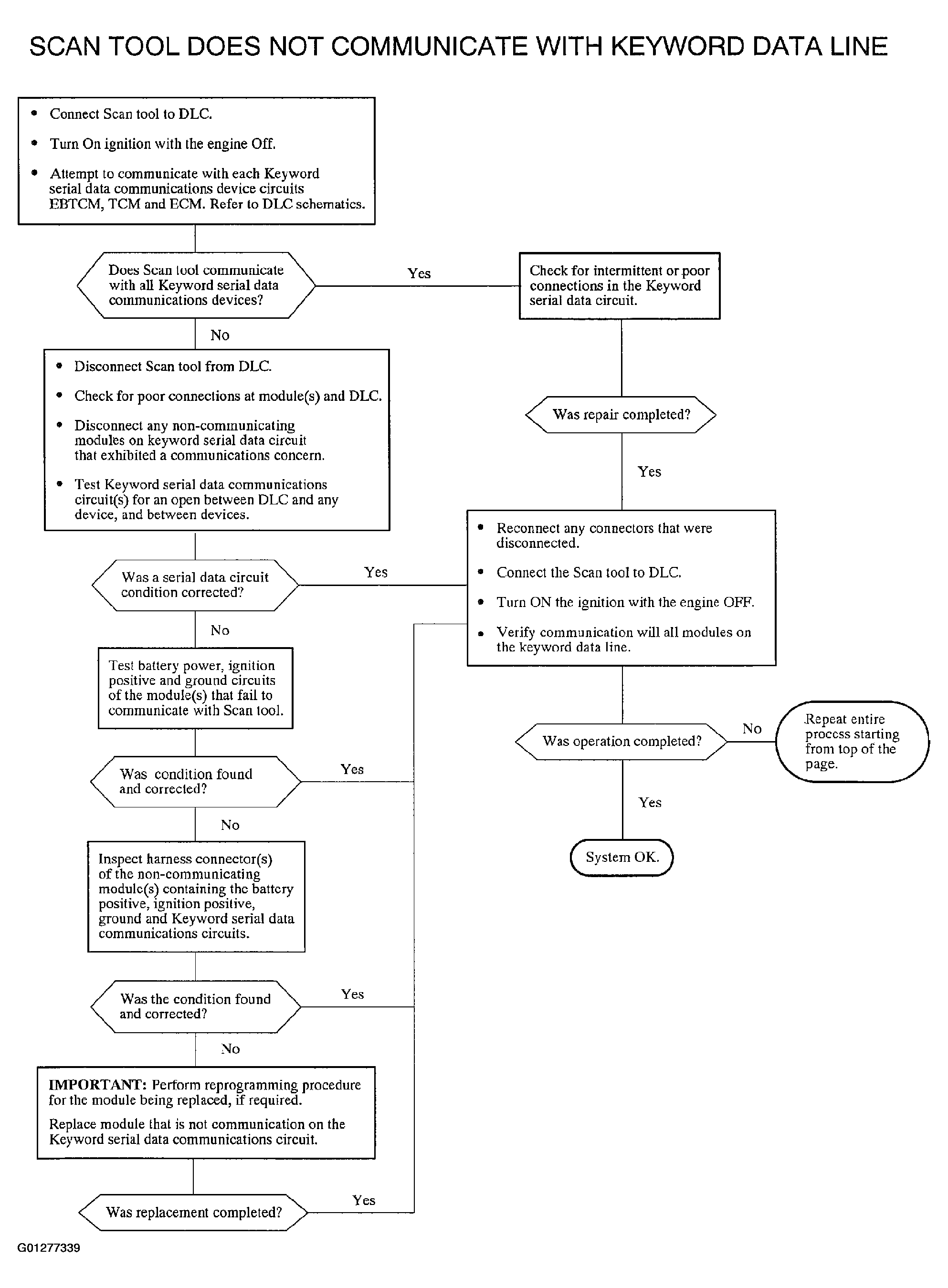

Fig 1: Scan Tool Does Not Communicate With Keyword Data Line, Testing Flow Chart

Courtesy of GENERAL MOTORS CORP.
