Fuel Tank: Installation

Install fuel tank heat shield and fuel tank assembly into vehicle.

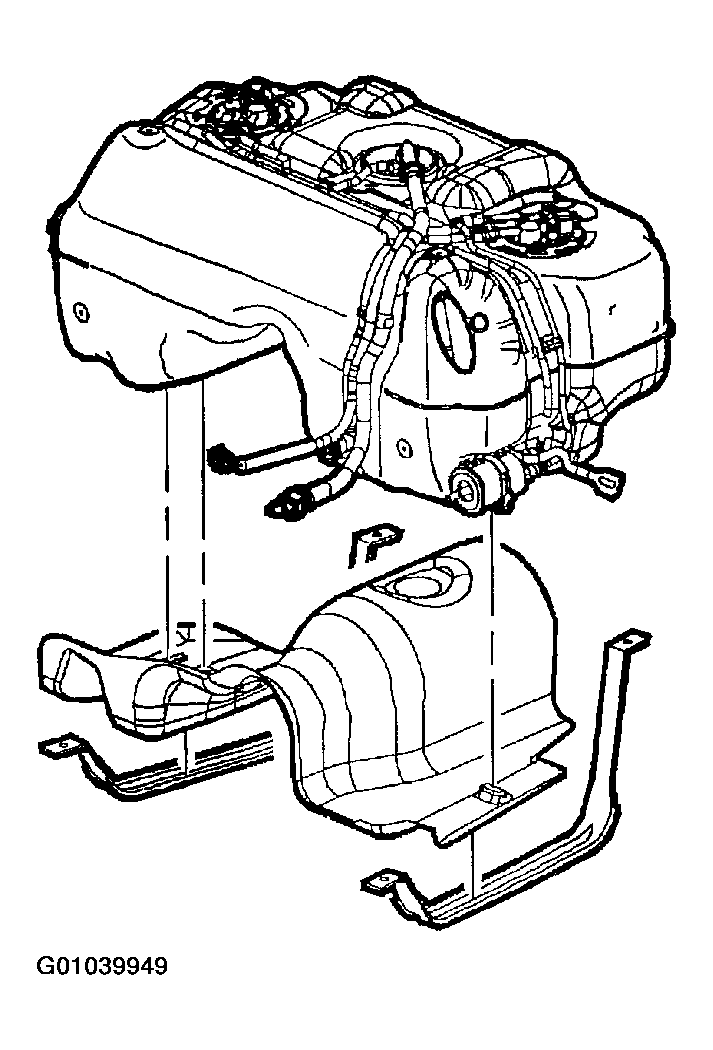

Fig 1: Install fuel tank heat shield and fuel tank assembly
Courtesy of GENERAL MOTORS CORP.
Install fuel tank straps and tighten bolts
Torque:

Fuel Tank Strap-to-Body Bolts: 25 N.m (18 ft-lbs)

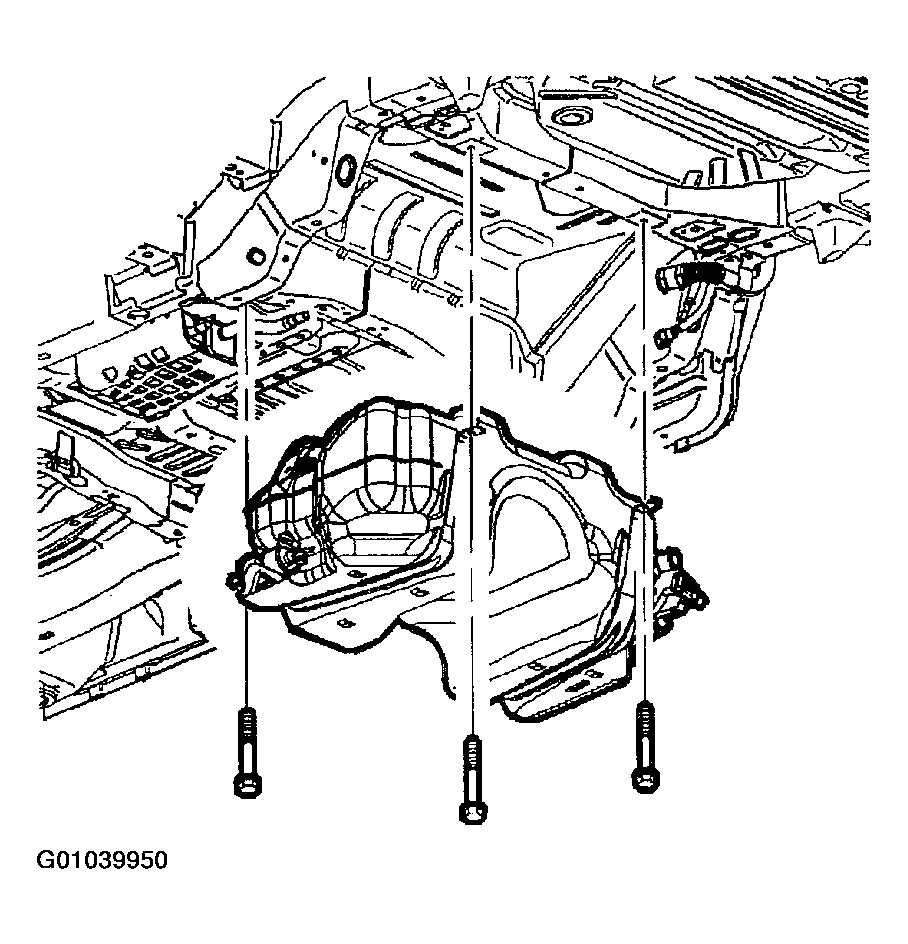

Fig 2: Installing fuel tank straps and tighten bolts
Courtesy of GENERAL MOTORS CORP.
Install fuel filler pipe, EVAP vent, and fresh air hoses to fuel tank.
Install fuel tank ground strap fastener (by fuel filter).
Torque:

Ground Strap-to-Body Bolt: 8 N.m (71 in-lbs)

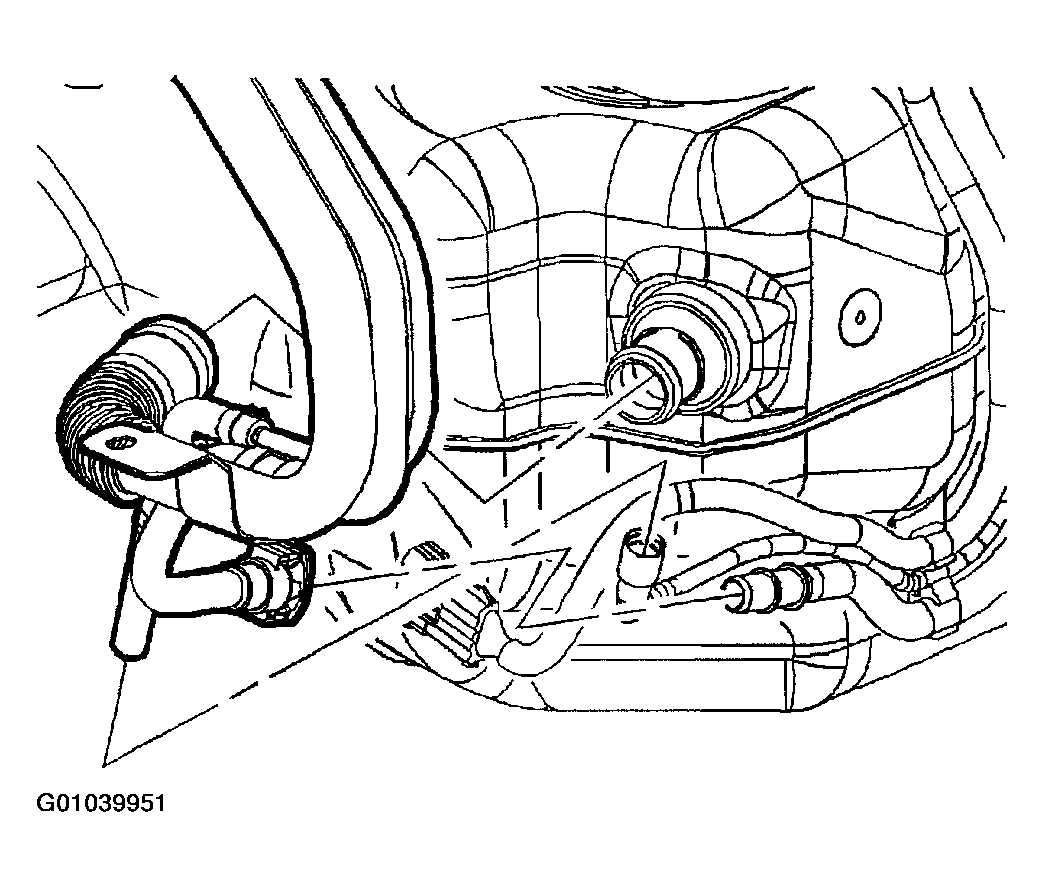

Fig 3: Installing fuel filler pipe, EVAP vent, and fresh air hoses to fuel tank
Courtesy of GENERAL MOTORS CORP.
Connect EVAP canister vent and fresh air hoses to fuel tank hoses.
IF EQUIPPED, install propeller shaft.
IF EQUIPPED, install propeller shaft guard.

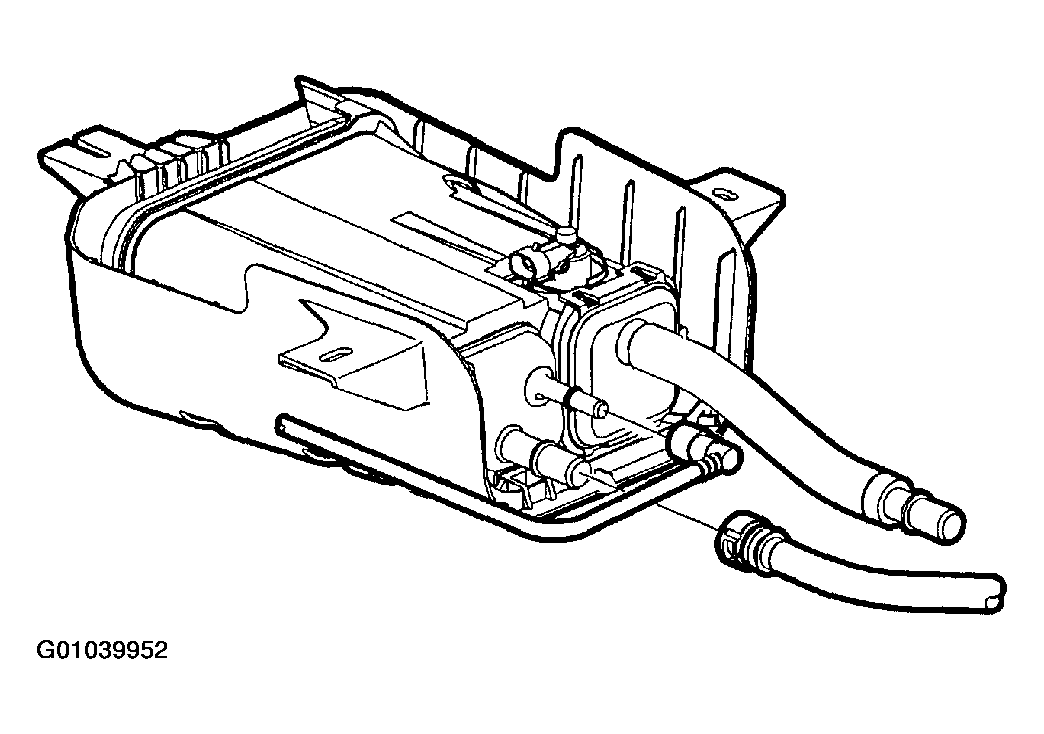

Fig 4: Connecting EVAP canister vent and fresh air hoses to fuel tank hoses
Courtesy of GENERAL MOTORS CORP.
Install rubber exhaust hangers.

Fig 5: Installing rubber exhaust hangers
Courtesy of GENERAL MOTORS CORP.
Lower vehicle from hoist.
Fill fuel tank with gasoline.
Connect the negative battery cable.
Torque:

Battery Terminal Bolt: 17 N.m (13 ft-lbs)
Prime fuel system.
1. 12.1 Cycle ignition On for 5 seconds and then Off for 10 seconds.
2. 12.2 Repeat previous step twice.
3. 12.3 Crank engine until it starts (maximum starter motor cranking time is 20 seconds).
4. 12.4 If engine does not start, repeat steps 12.1-12.3.
