Fuel Tank: Disassembly

  1. Place fuel tank in a suitable work area.
  2. Remove primary fuel pump module from fuel tank. Refer to PRIMARY FUEL PUMP MODULE .

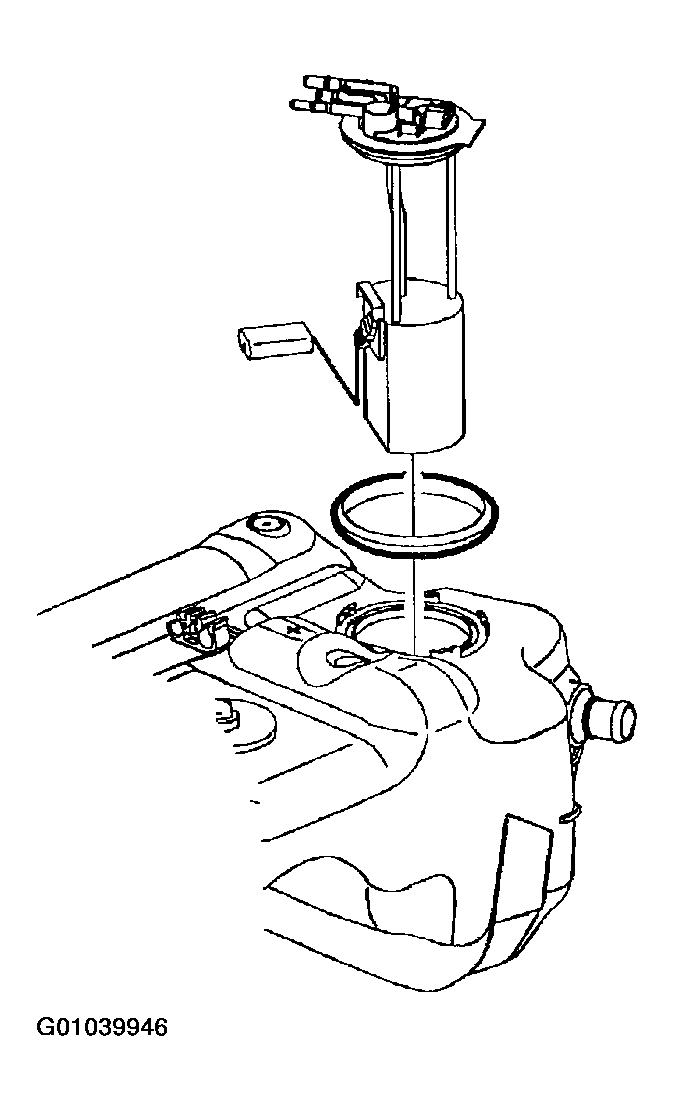

    Fig 1: Removing primary fuel pump module from fuel tank
    G01039946Courtesy of GENERAL MOTORS CORP.
  3. Remove secondary fuel pump module from fuel tank. Refer to SECONDARY FUEL PUMP MODULE .
  4. Remove fuel and EVAP lines from fuel tank.
  5. Remove electrical harness from fuel tank.
