In-Vehicle Procedures: Installation

  1. Coat lip of rear main oil seal with a small amount of clean engine oi1.
  2. Use Rear Main Seal Installer J42067 to install rear main oil seal.
  3. Install flexplate.

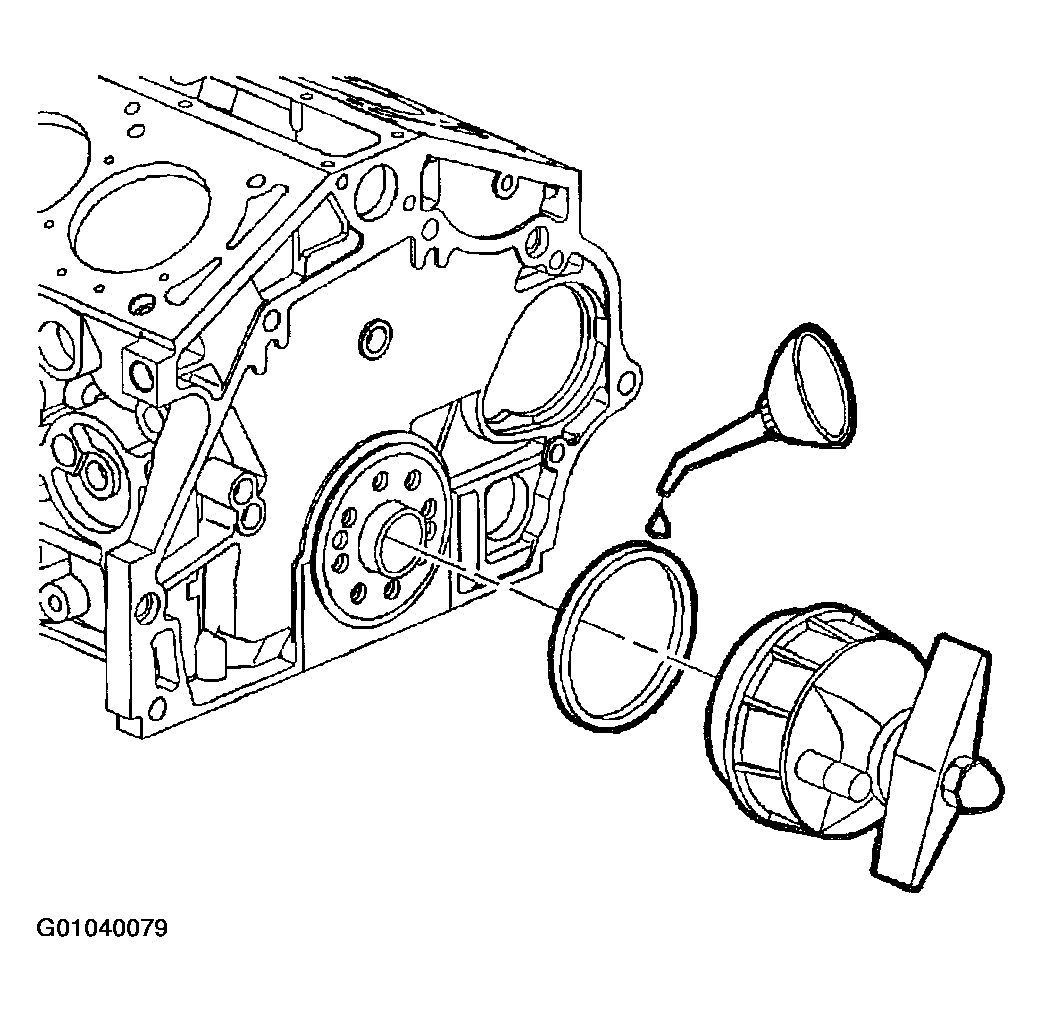

    Fig 1: Installing Rear Main Oil Seal
    G01040079Courtesy of GENERAL MOTORS CORP.
