Lubrication System Troubleshooting Chart

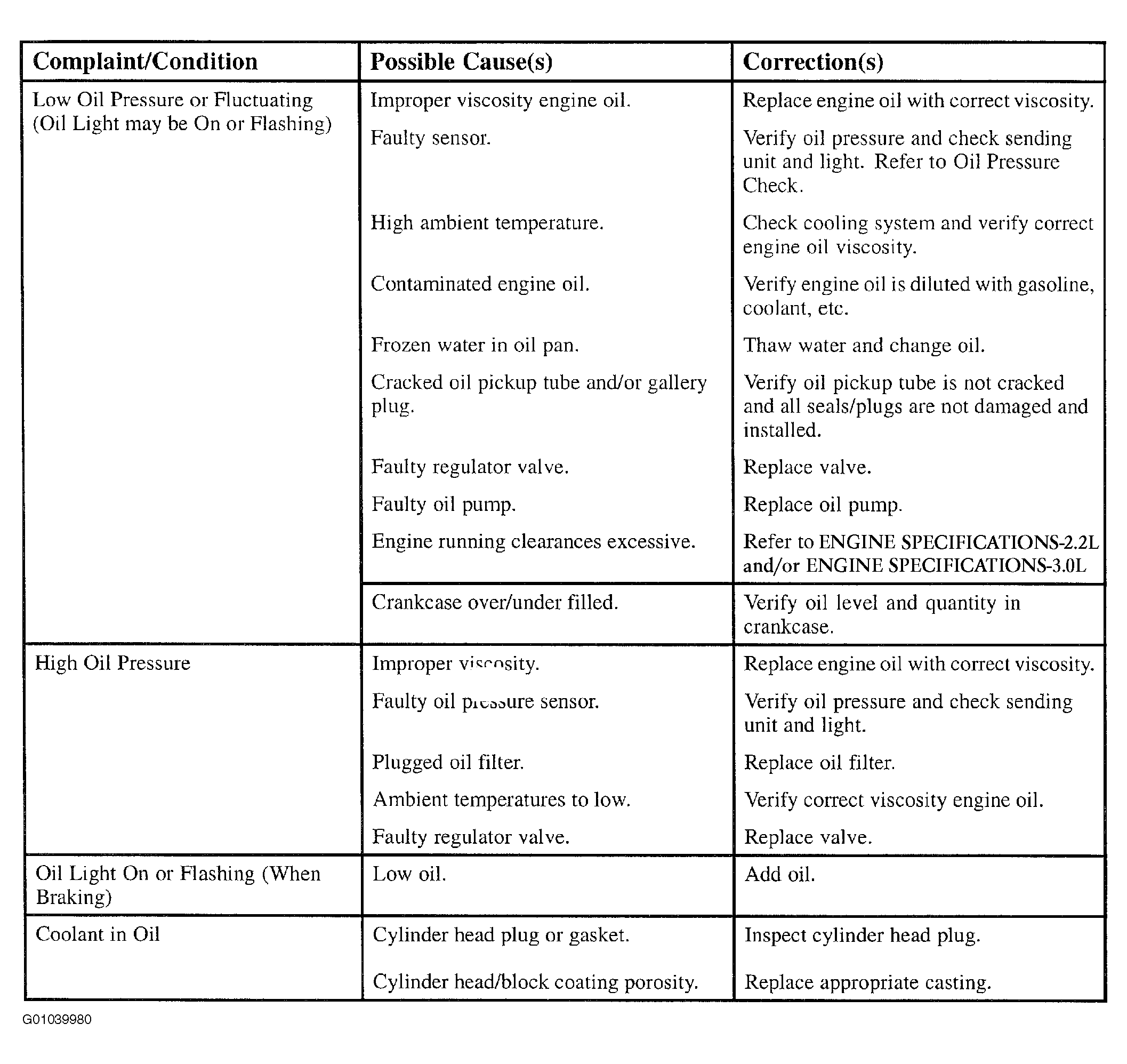

Fig 1: Lubrication System Troubleshooting Chart

G01039980

Courtesy of GENERAL MOTORS CORP.
