Front Wheel Speed Sensor: Installation

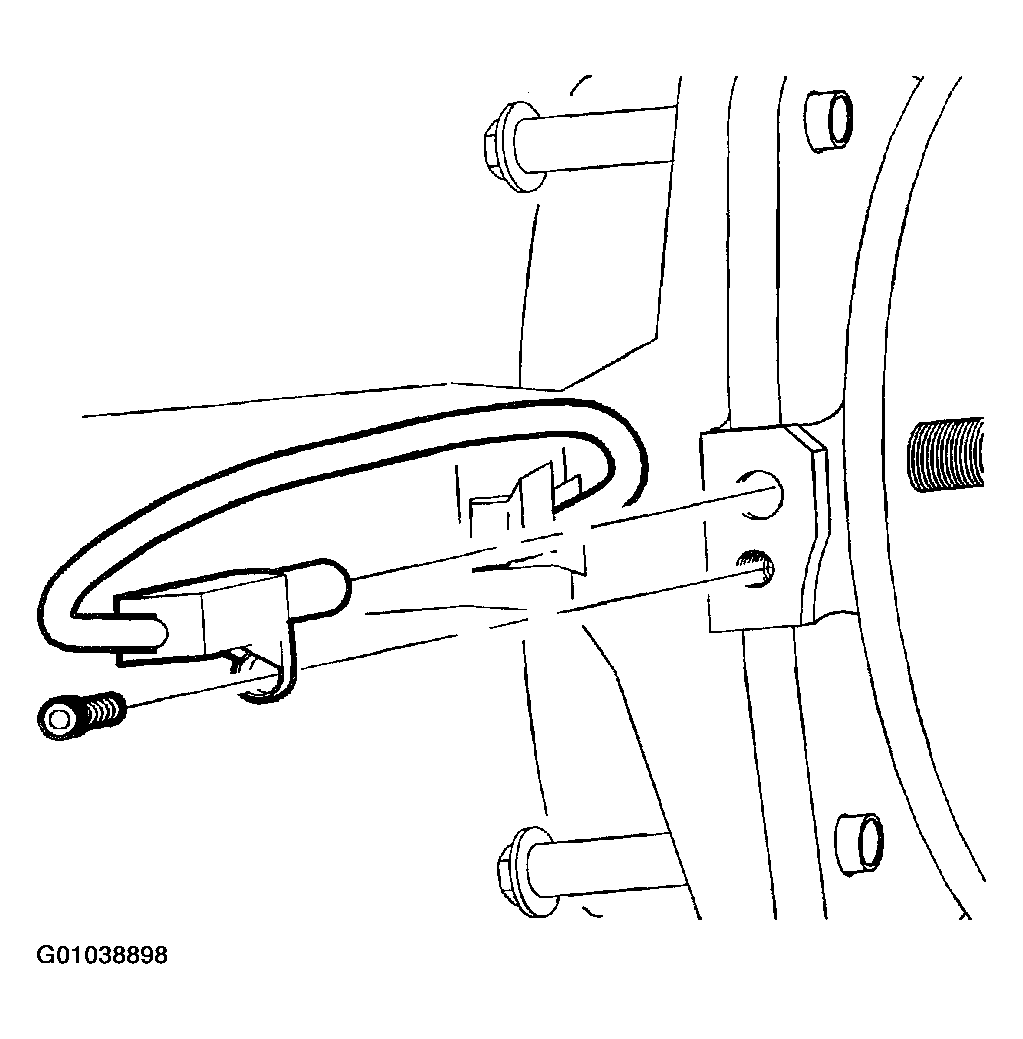

  1. Position wheel speed sensor into wheel bearing/hub assembly and install fastener. Tighten wheel speed sensor to 8 N.m (71 in-lbs). See Figure .

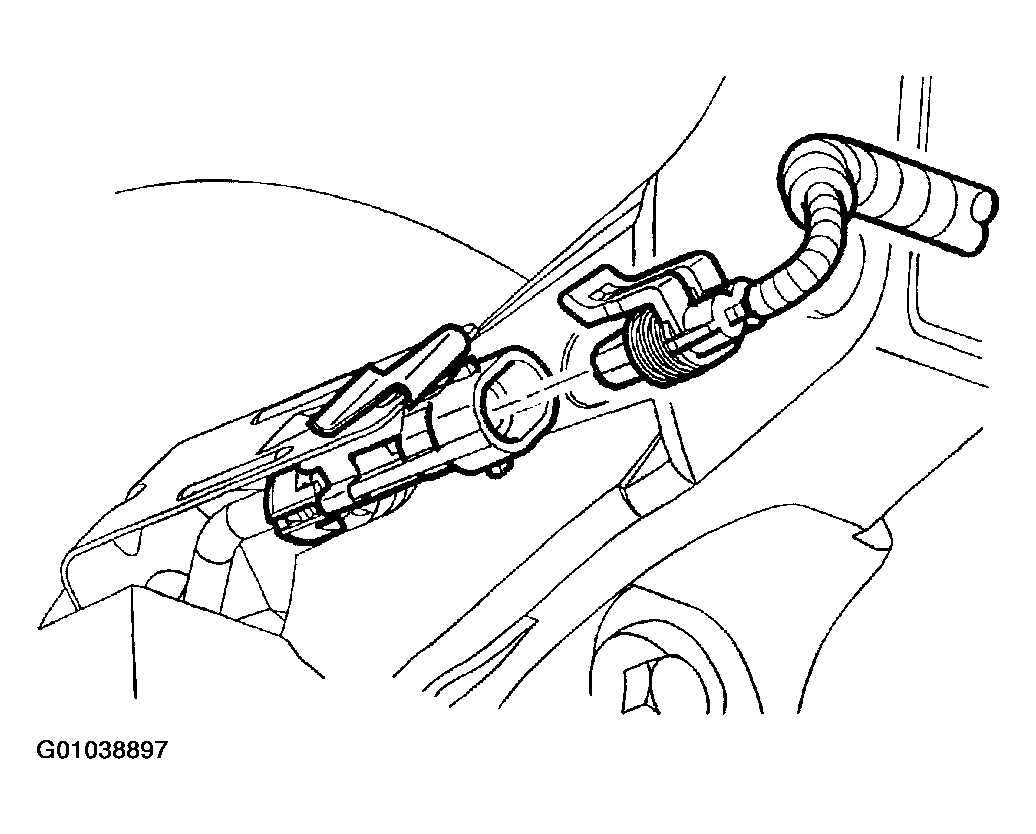

  2. Connect wheel speed sensor electrical connector. See Figure .
  3. Install front brake rotor. See FRONT BRAKE ROTOR .
  4. Lower vehicle from hoist.
