Electronic Brake And Traction Control Module (Control Module And Valve Assembly) (EBTCM): Disassembly

  1. Disconnect pump motor electrical connector.
  2. Remove control module to valve assembly screws.

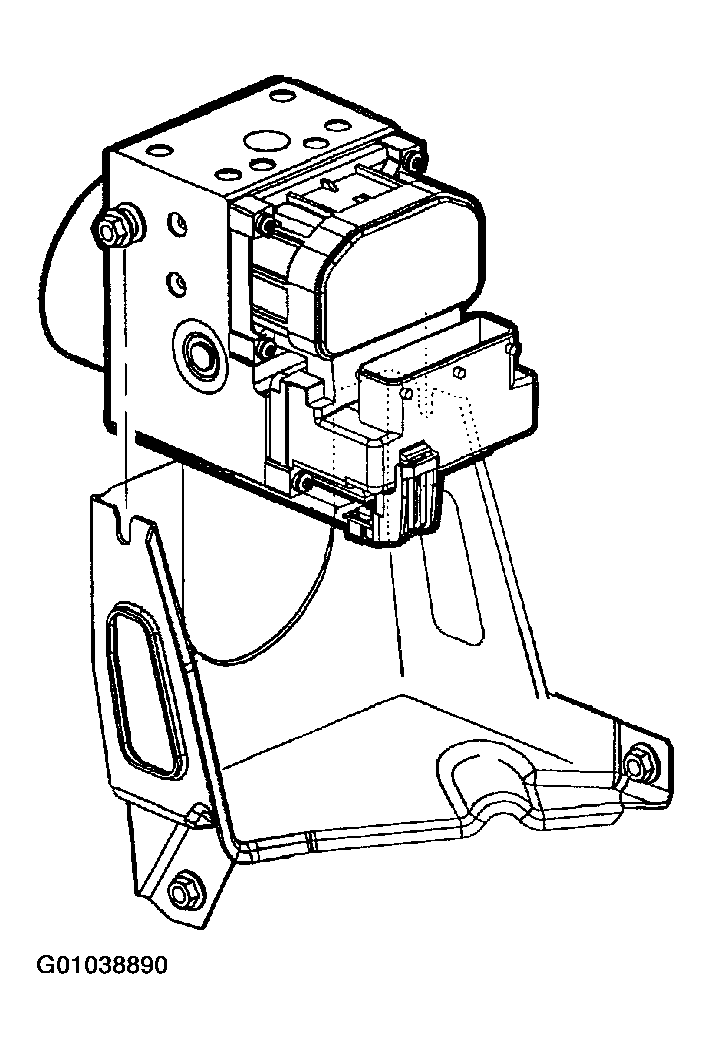

    Fig 1: Removing Control Module-To-Valve Assembly Screws
    G01038890Courtesy of GENERAL MOTORS CORP.
