RKE Customer Programmable Content Theft Programming

To enter programming mode:

Press PANIC button on transmitter 8-10 times in 5 seconds with ignition ON.

Then within 3 seconds select mode by pressing LOCK/UNLOCK.

Active-  Content theft system will only be armed by using the transmitter to lock the doors.

Passive-  Content theft system will arm 5 minutes after ignition is OFF, all doors and trunk are closed. Any door open will reset 5 minute timer.

Disabled-  No content theft system activated.

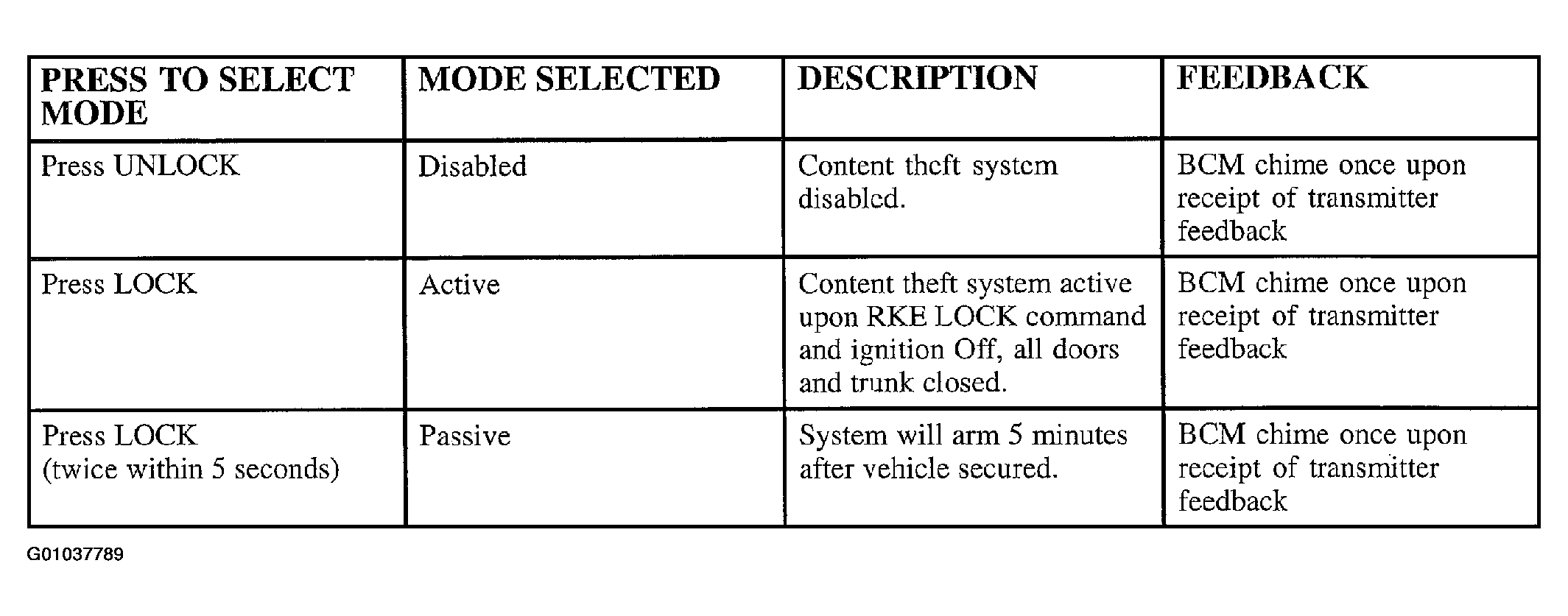

Fig 1: Transmitter Mode Selection Chart

Courtesy of GENERAL MOTORS CORP.

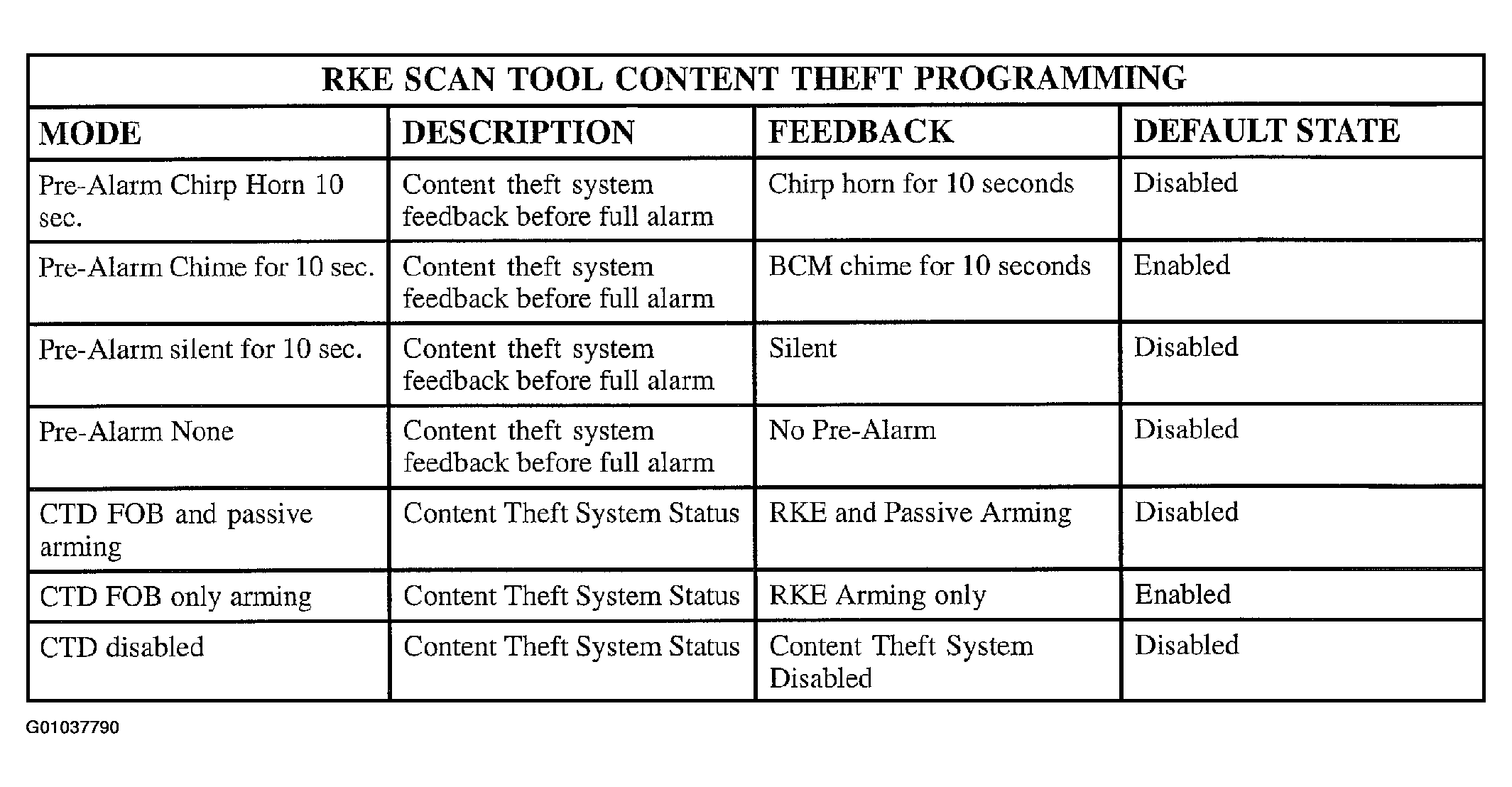

Fig 2: RKE Scan Tool Content Theft Programming Chart

Courtesy of GENERAL MOTORS CORP.
