Chart 1 - Key Cannot Be Removed From Ignition Module

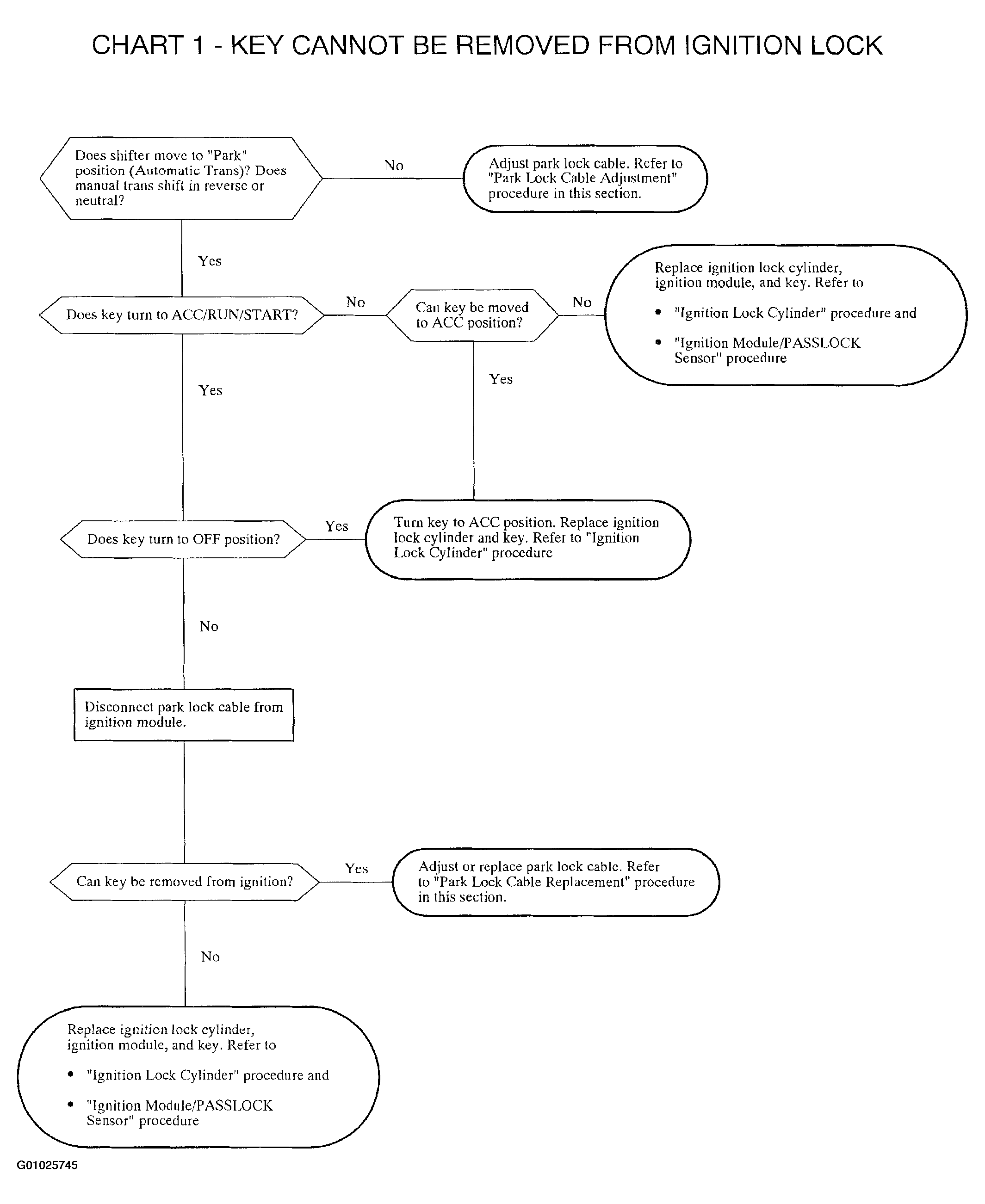

Fig 1: Chart 1 - Key Cannot Be Removed From Ignition Lock

G01025745

Courtesy of GENERAL MOTORS CORP.
