Park Lock Cable

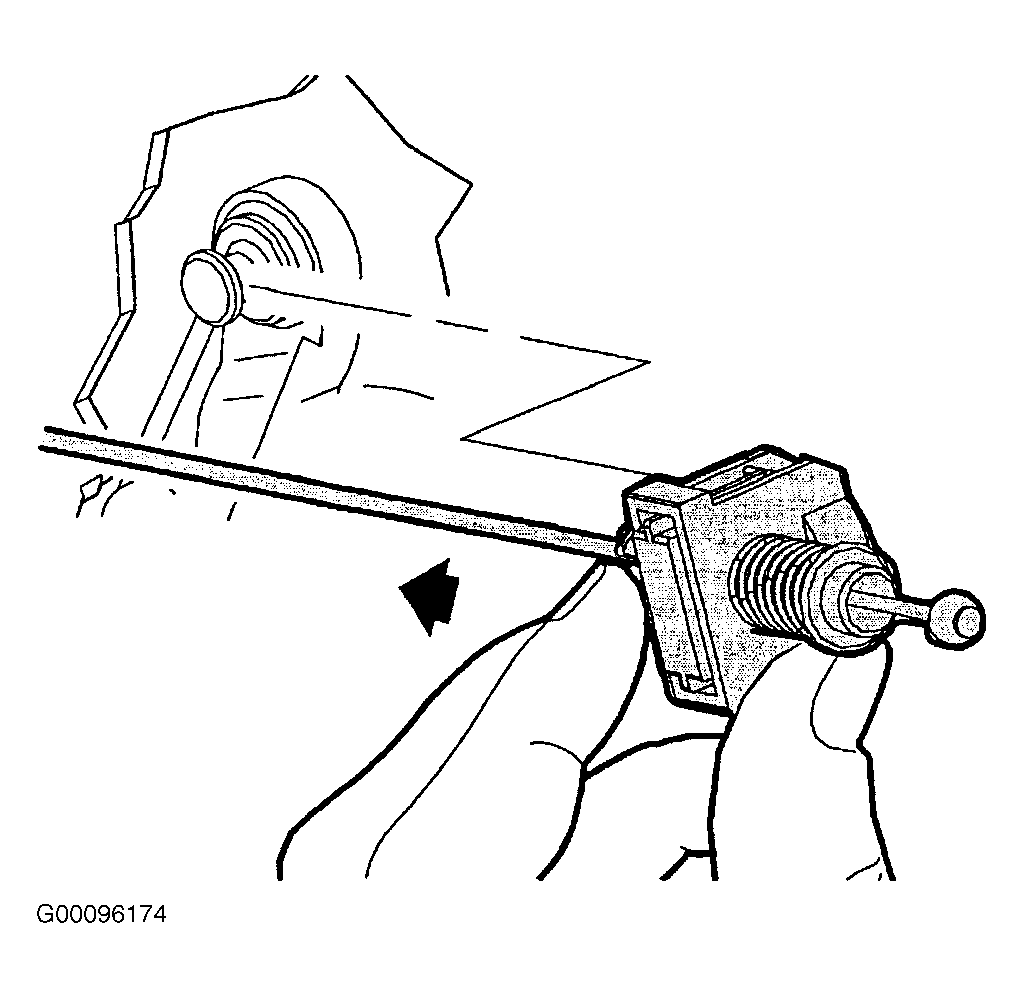

- Release adjuster piece by gently prying up on adjuster locks and unlocking tab (indicated by arrows). See Fig 1

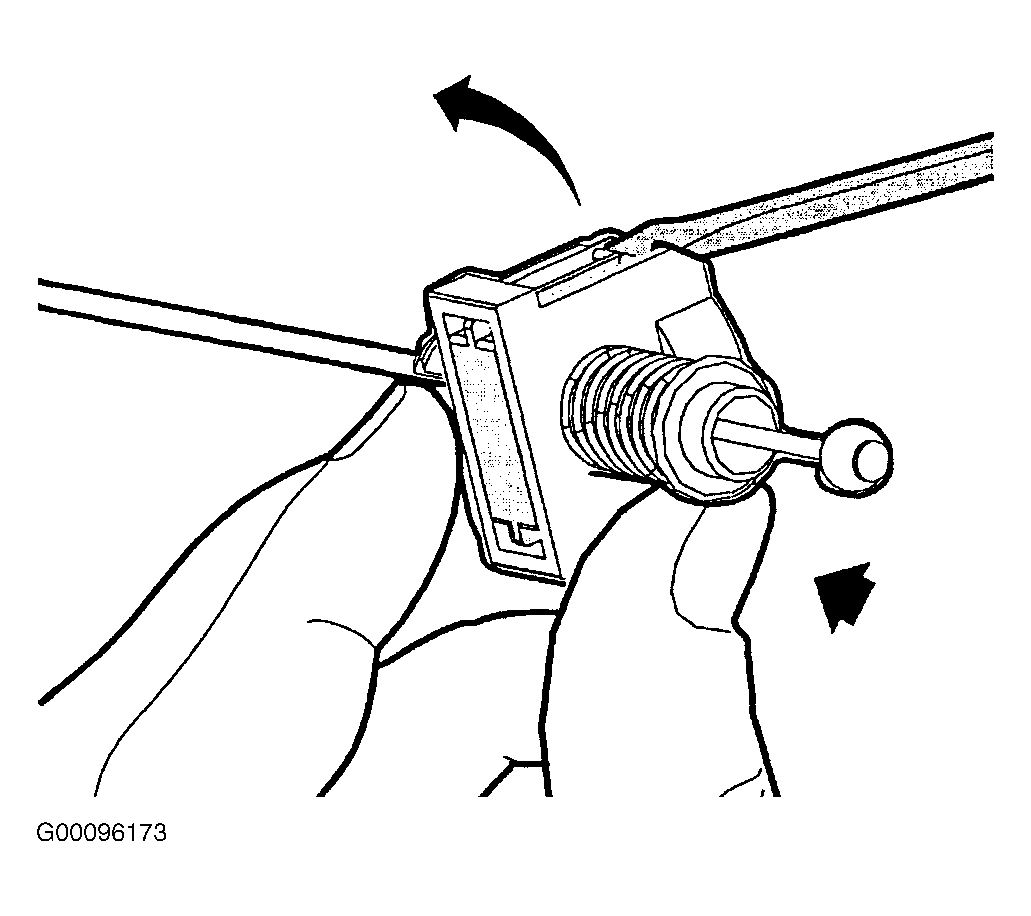

and Fig 2
.
- Install park lock cable end terminal on control assembly aligning cable fitting to pin and pushing forward. When installing, ensure not to install cable end fitting on an angle or push down on cable portion as this may cause cable to become misadjusted. See Fig 3
.
- Remove lock cylinder bezel from steering column shroud by carefully prying with thin-bladed screwdriver.
