Fuel Level Sender Unit And Float: Removal

IMPORTANT:  There are two fuel level sender unit and float assemblies in the fuel tank, there is one located on each fuel pump module. The fuel lever sender unit and float is the same for each of the fuel pump modules.

1. Remove fuel tank. Refer to FUEL TANK .
2. Remove fuel pump module with defective fuel level sender and float. Refer to PRIMARY FUEL PUMP MODULE  or SECONDARY FUEL PUMP MODULE .
3. Disconnect fuel level sender unit and float electrical connector.

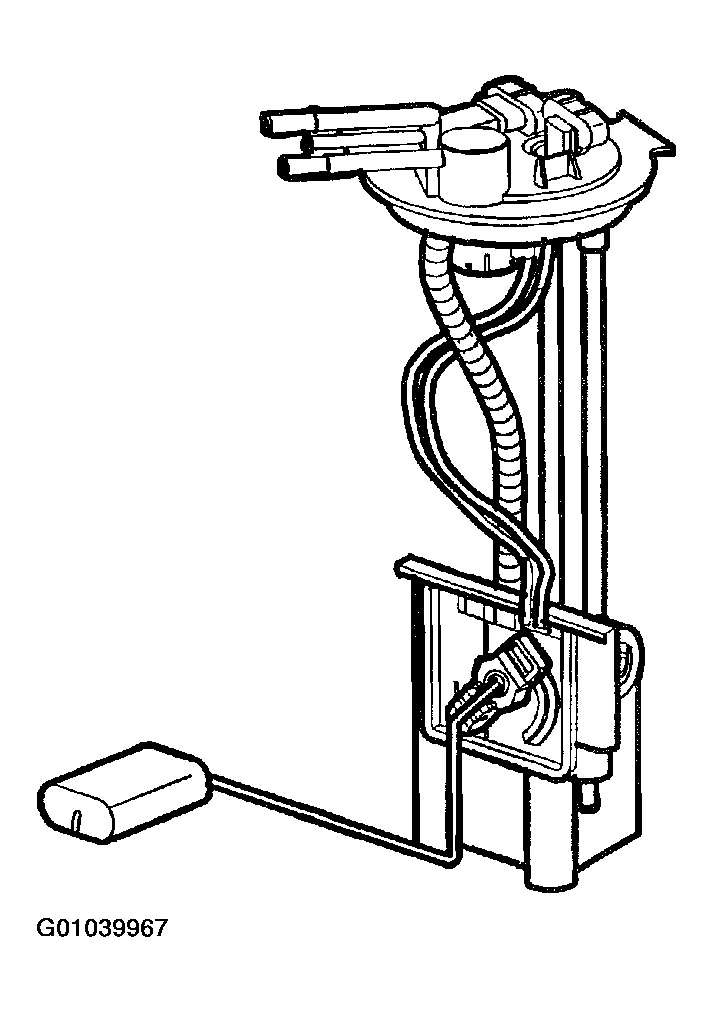

   Fig 1: Removing fuel pump module with defective fuel level sender and float

   Courtesy of GENERAL MOTORS CORP.
4. Remove fuel level sender card by sliding card down.
