EVAP Canister: Installation

Install EVAP canister onto EVAP canister bracket.
Install EVAP vent solenoid electrical connector.

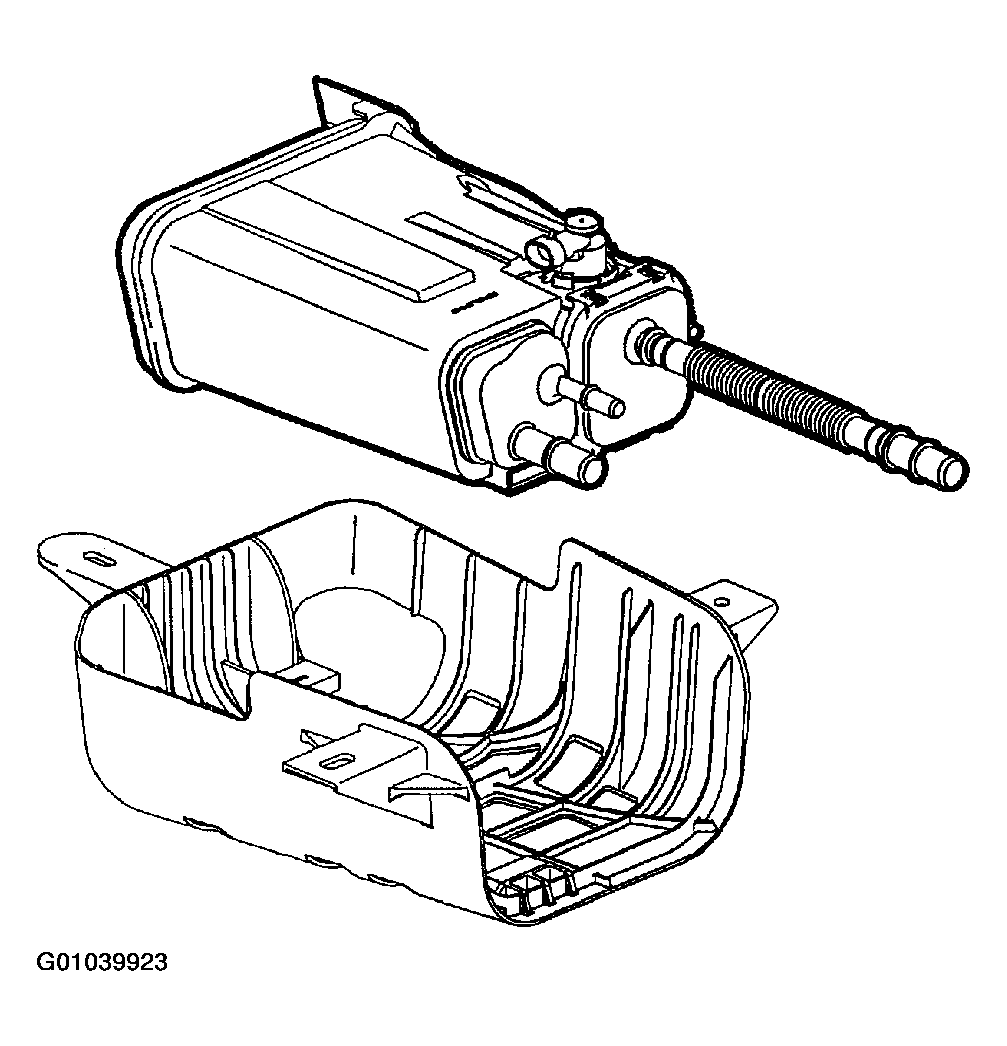

Fig 1: Installing EVAP canister onto EVAP canister bracket
Courtesy of GENERAL MOTORS CORP.
Install three EVAP canister-to-body underbody fasteners.
Torque:

EVAP Canister-to-Body Nuts: 8 N.m (71 in-lbs)

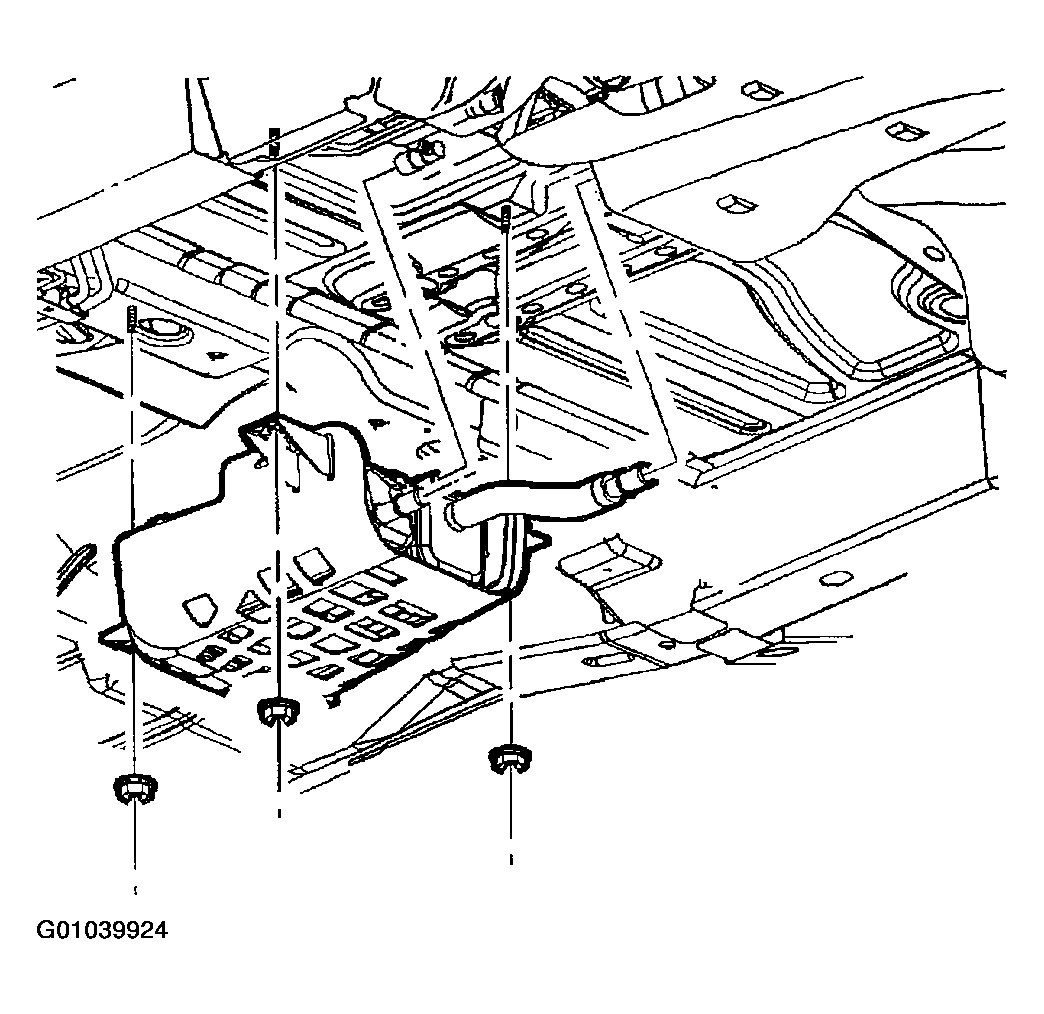

Fig 2: Installing three EVAP canister-to-body underbody fasteners
Courtesy of GENERAL MOTORS CORP.
Connect EVAP canister purge and vent lines to EVAP canister.

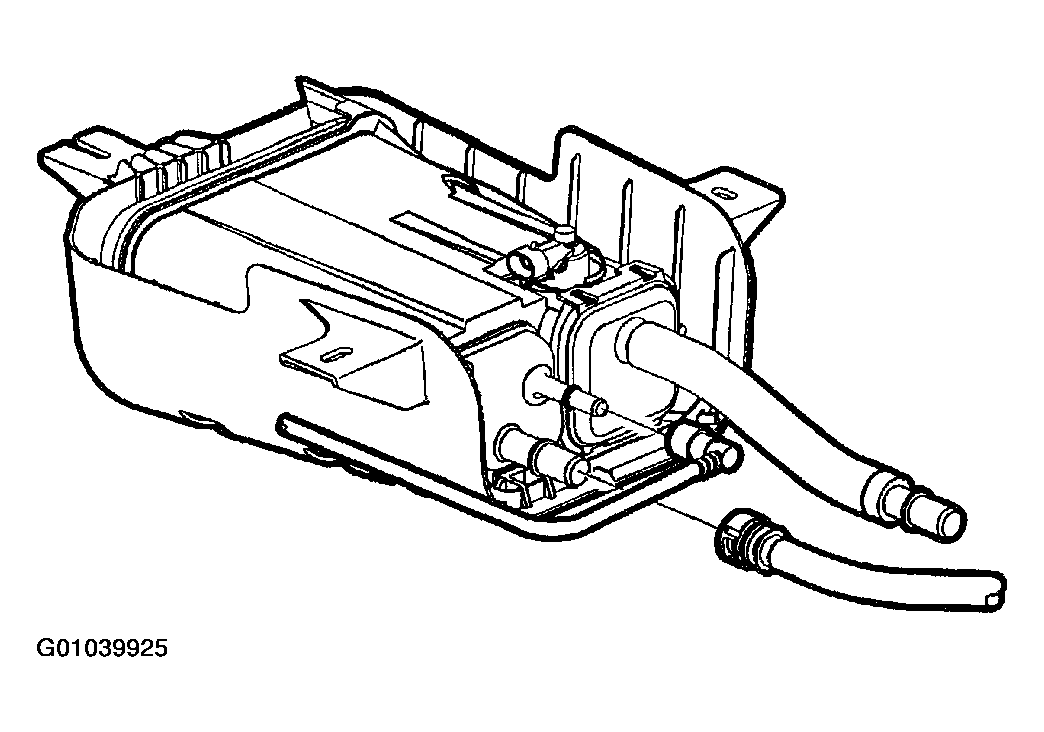

Fig 3: Connecting EVAP canister purge and vent lines to EVAP canister
Courtesy of GENERAL MOTORS CORP.
Connect EVAP canister fresh air line to fuel tank fresh air.
Lower vehicle from hoist.

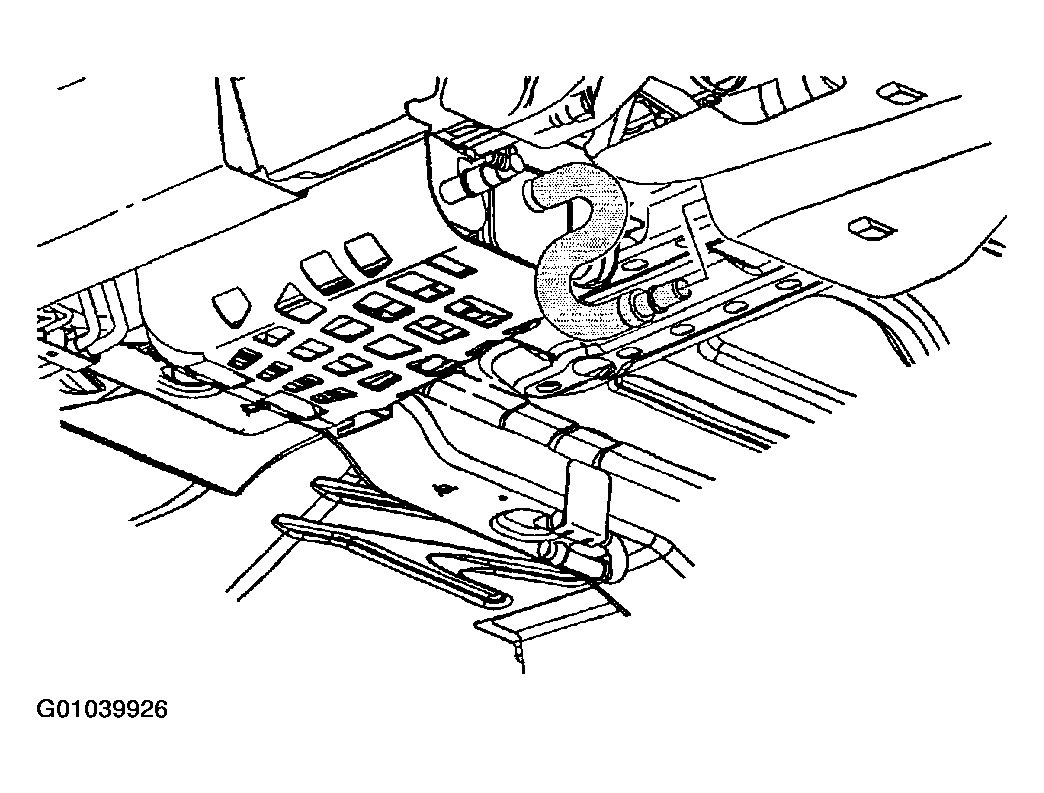

Fig 4: Connecting EVAP canister fresh air line to fuel tank fresh air
Courtesy of GENERAL MOTORS CORP.
