LEMON Manuals
: Even more car manuals for everyone
Home
>>
Saturn
>>
2002
>>
Vue 2.2 D, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Diagnostics
>>
HC/Co Diagnostic Chart
HC/Co Diagnostic Chart

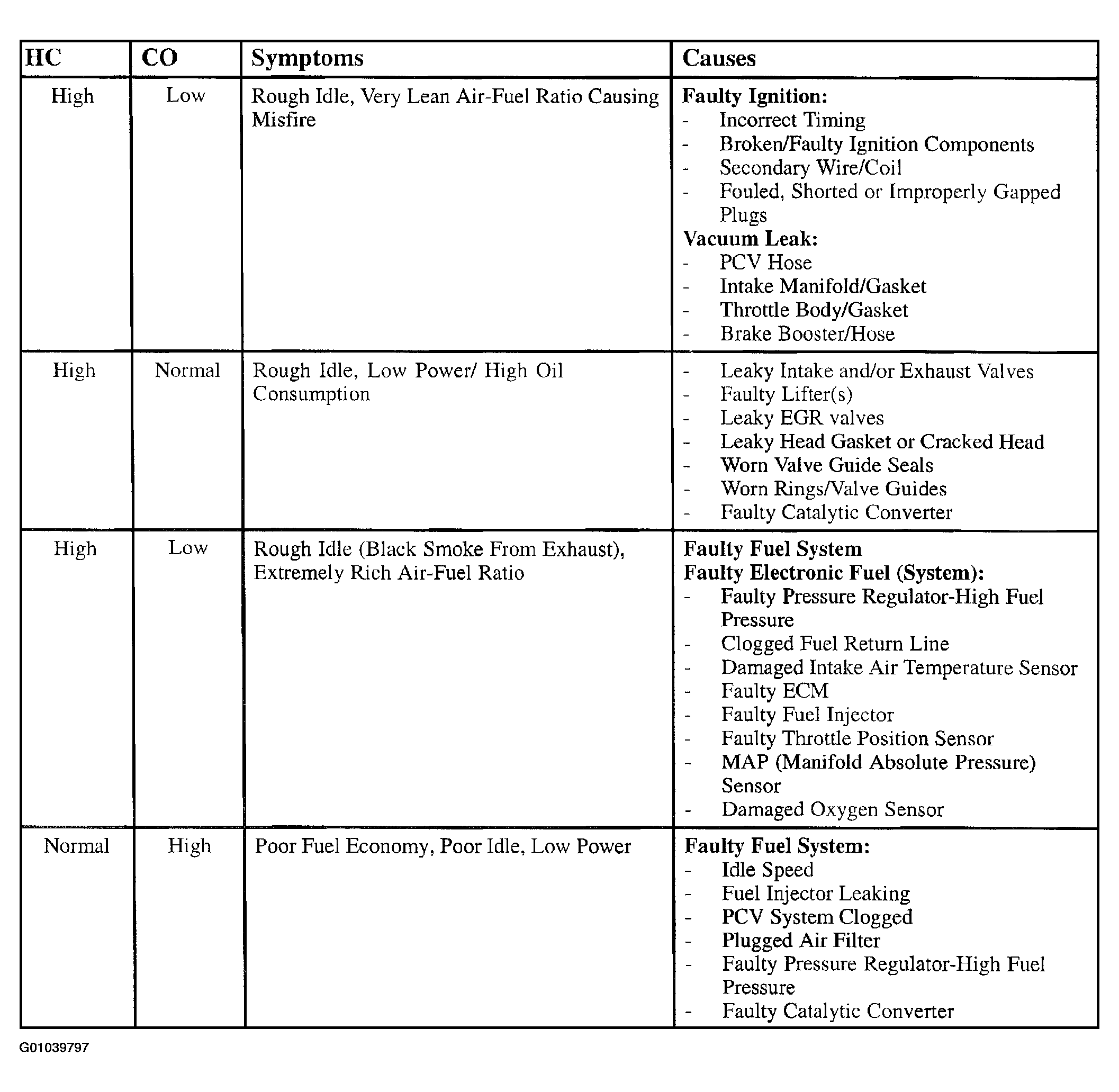

Fig 1: HC/CO Diagnostic Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
