Fuel System Diagnosis - Fuel Supply Chart

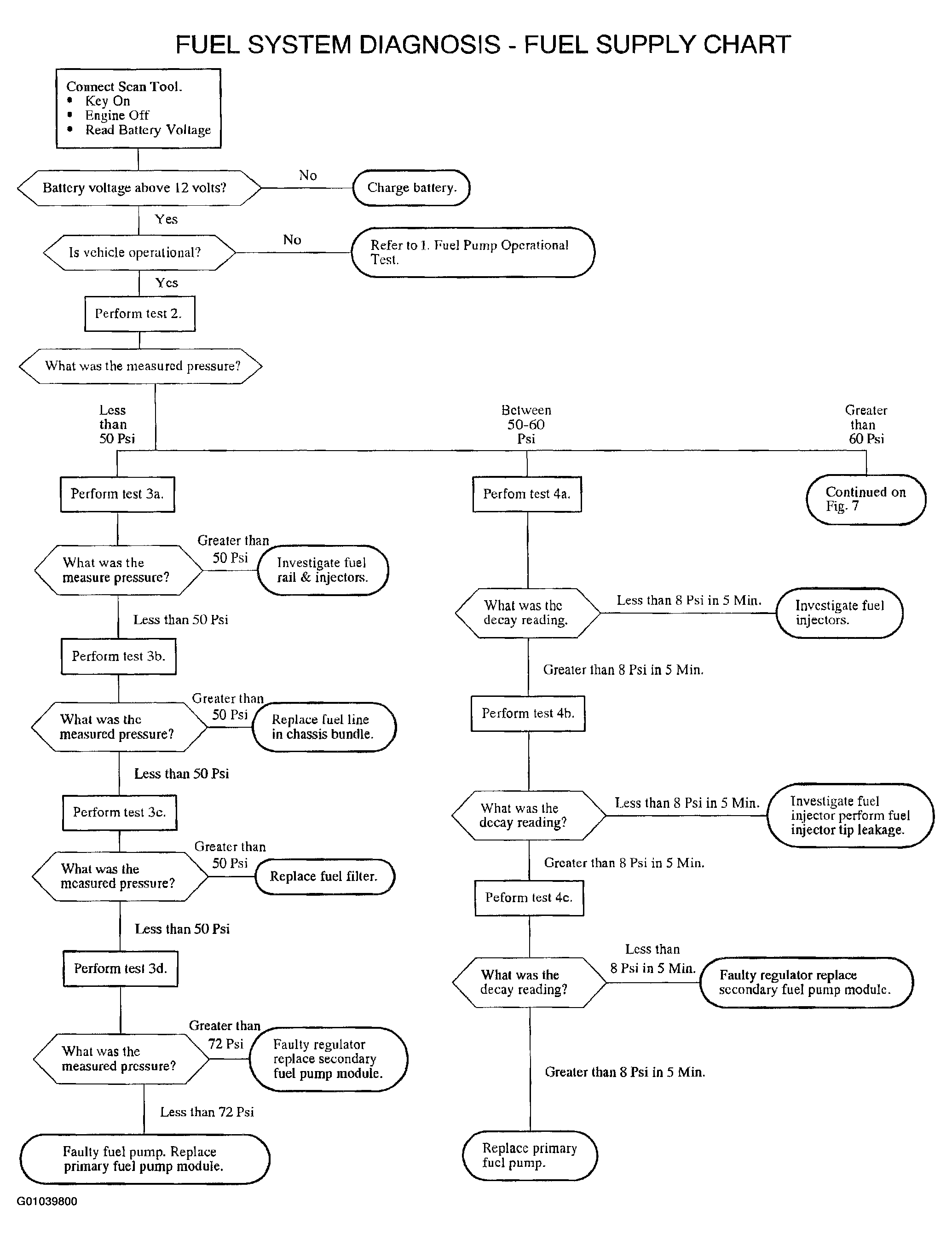

Fig 1: Fuel System Diagnosis - Fuel Supply Chart (1 Of 2)
G01039800Courtesy of GENERAL MOTORS CORP.

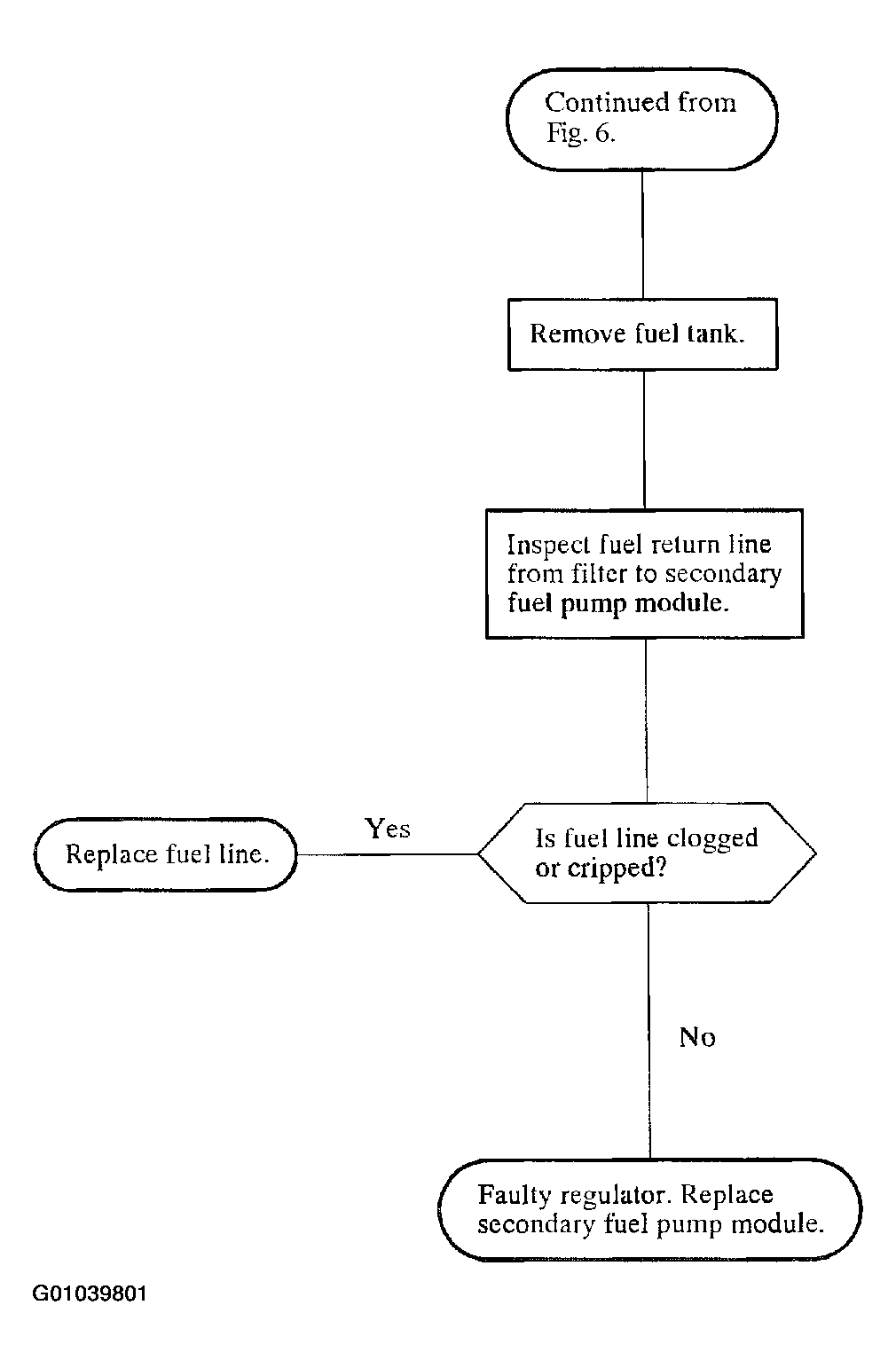

Fig 2: Fuel System Diagnosis - Fuel Supply Chart (2 Of 2)
G01039801Courtesy of GENERAL MOTORS CORP.
