Throttle Actuator Control Module Connector End View

Fig 1: Throttle Actuator Control Module

G00134174

Courtesy of GENERAL MOTORS CORP.

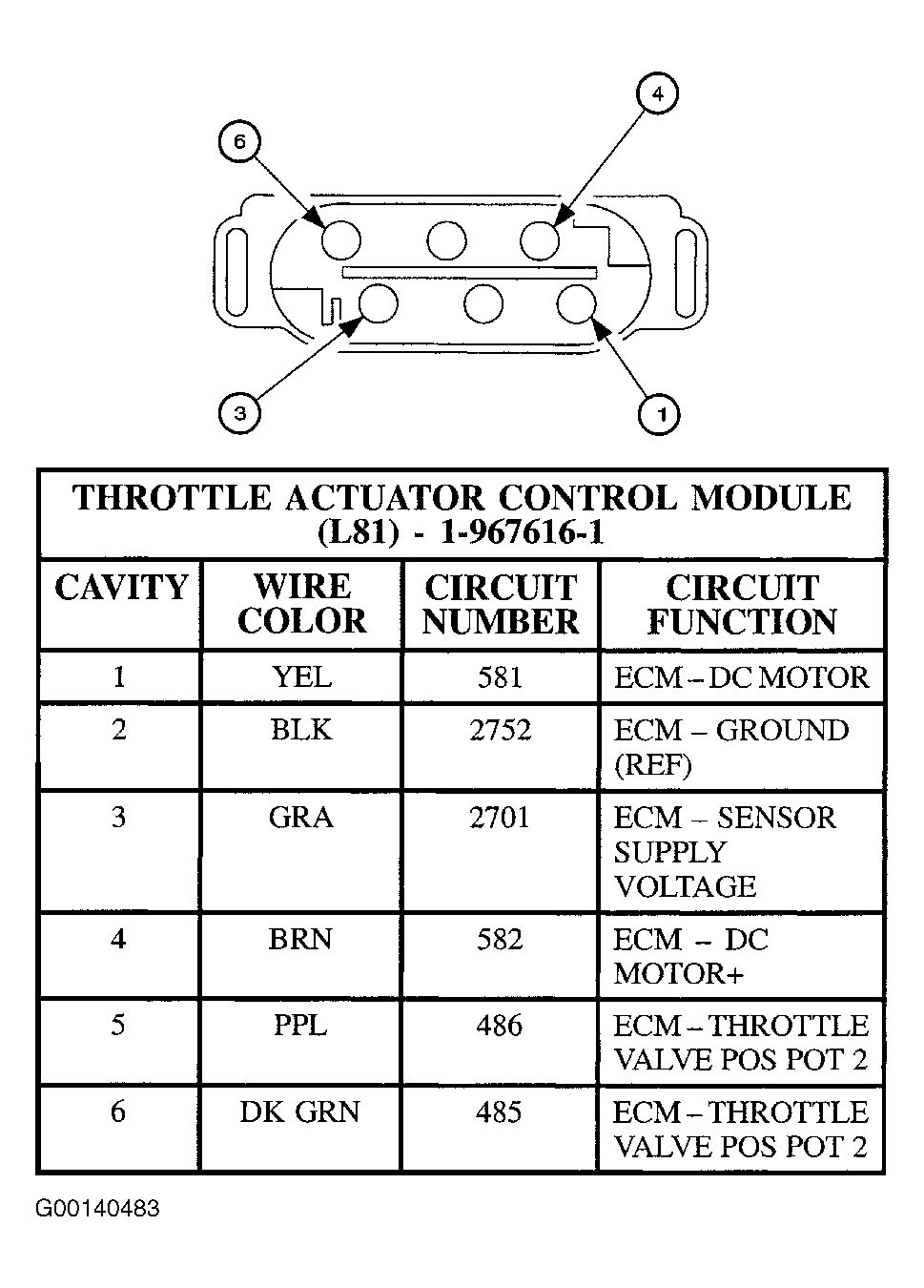

Fig 1: Throttle Actuator Control Module

G00140483

Courtesy of GENERAL MOTORS CORP.
