OEM Connector End Views
>>
Connector End Views
>>
ECT Sensor Connector End View
ECT Sensor Connector End View

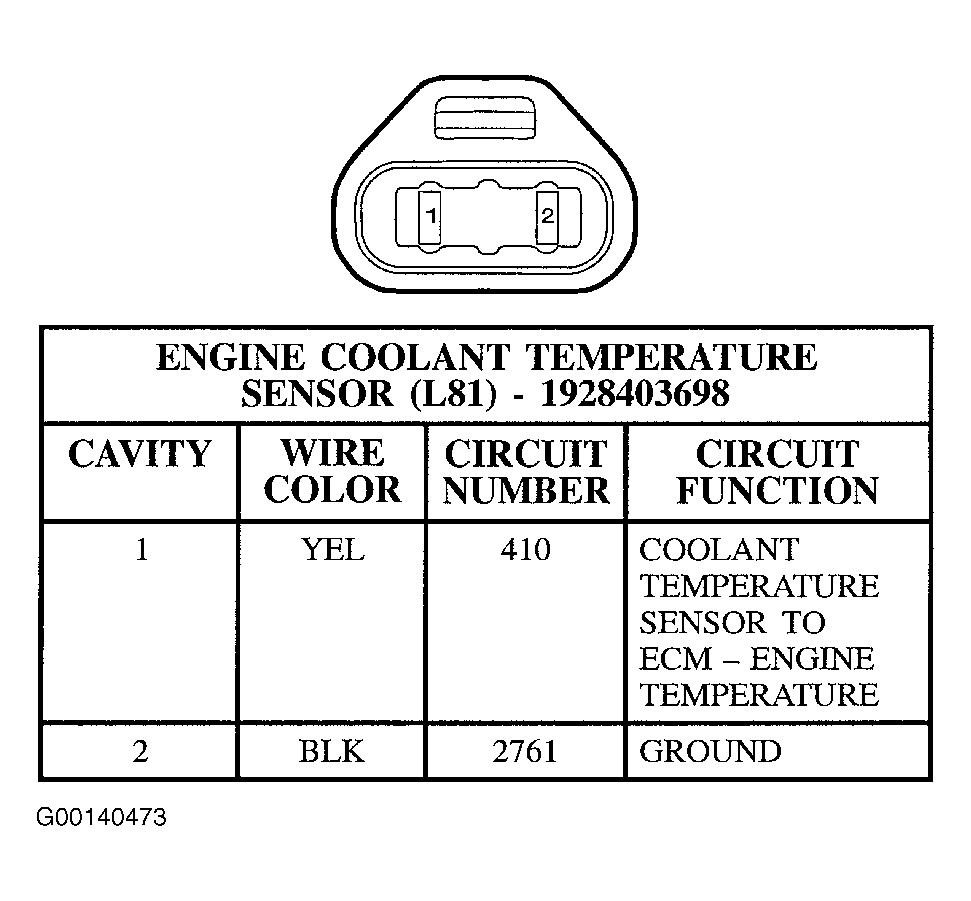

Fig 1: ECT Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 1: ECT Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
