C0036: Left Front Wheel Speed Sensor Circuit Range/Performance: Notes

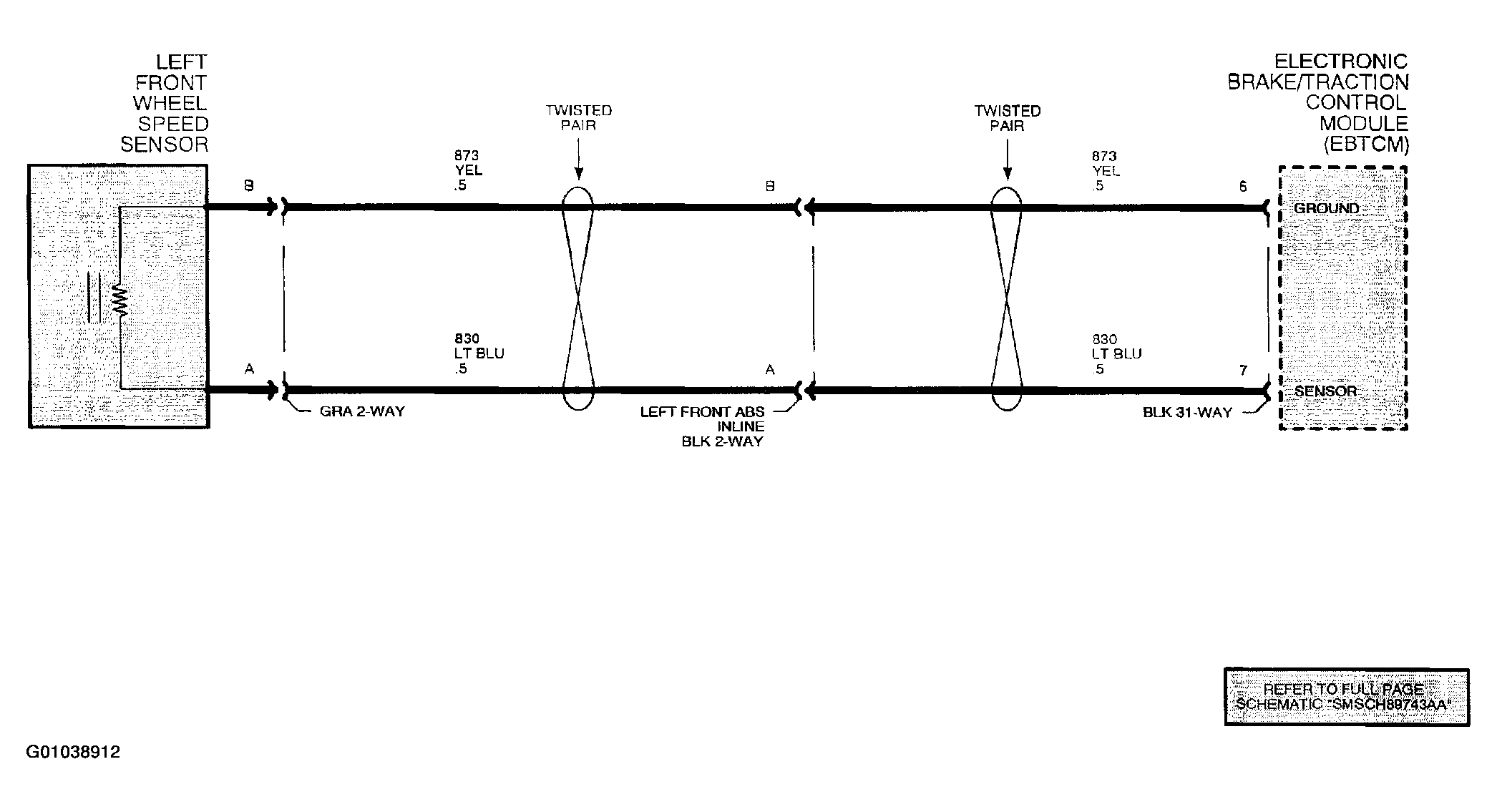

NOTE: Refer to schematic to identify wiring. See Figure .

The wheel speed sensor produces an AC voltage whose amplitude and frequency vary, depending on the velocity of the wheel. The Electronic Brake and Traction Control Module (EBTCM) uses this voltage signal to calculate wheel speed.
