Chart 6 - Either Rear Window Inoperable From Only Master Window Switch

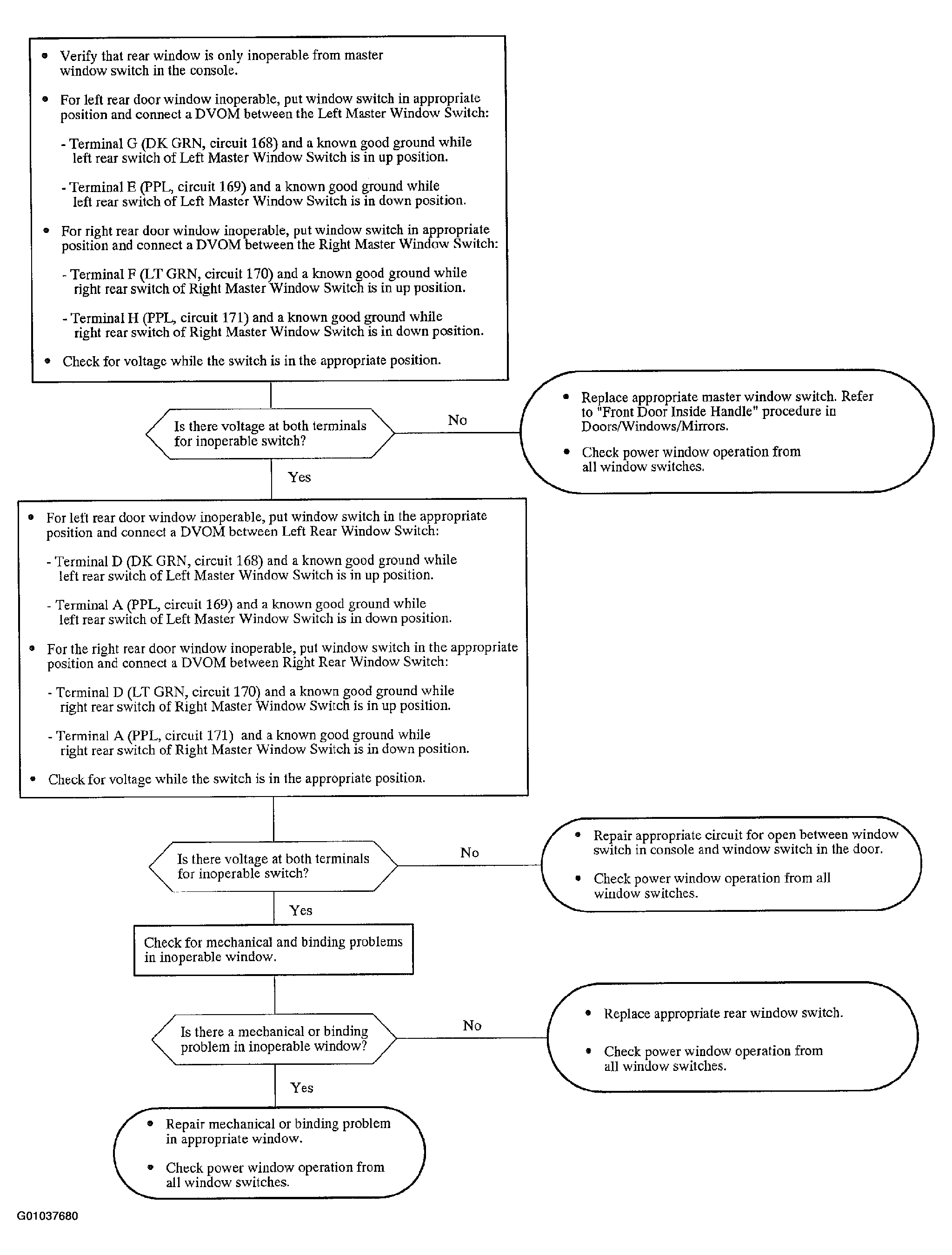

Fig 1: Diagnostic Chart 6
G01037680Courtesy of GENERAL MOTORS CORP.
