Chart 4 - Either Rear Window Inoperable From Any Window Switch

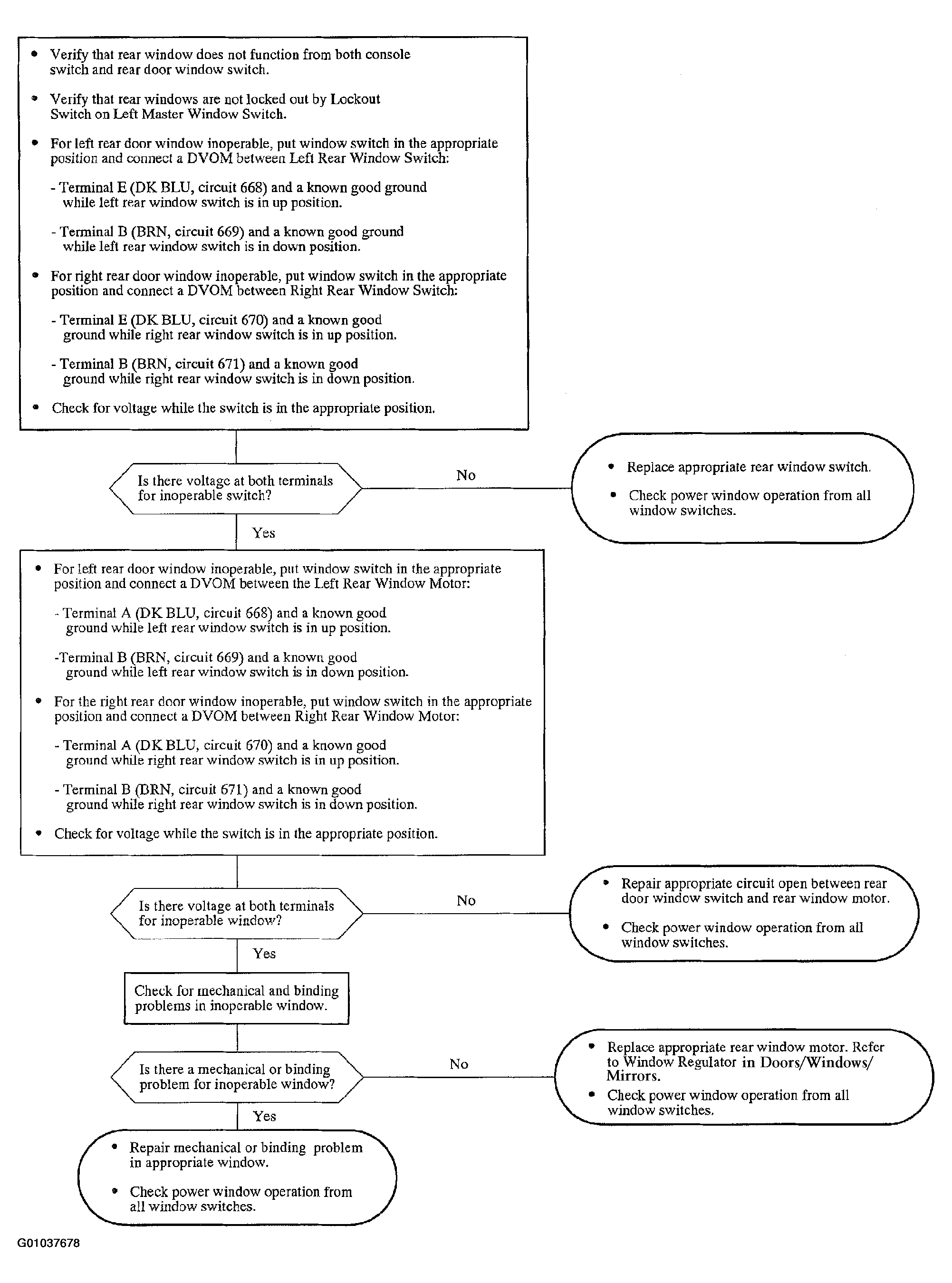

Fig 1: Diagnostic Chart 4
G01037678Courtesy of GENERAL MOTORS CORP.
