Chart 1 - Both Mirrors Do Not Operate
Chart 1 - Both Mirrors Do Not Operate

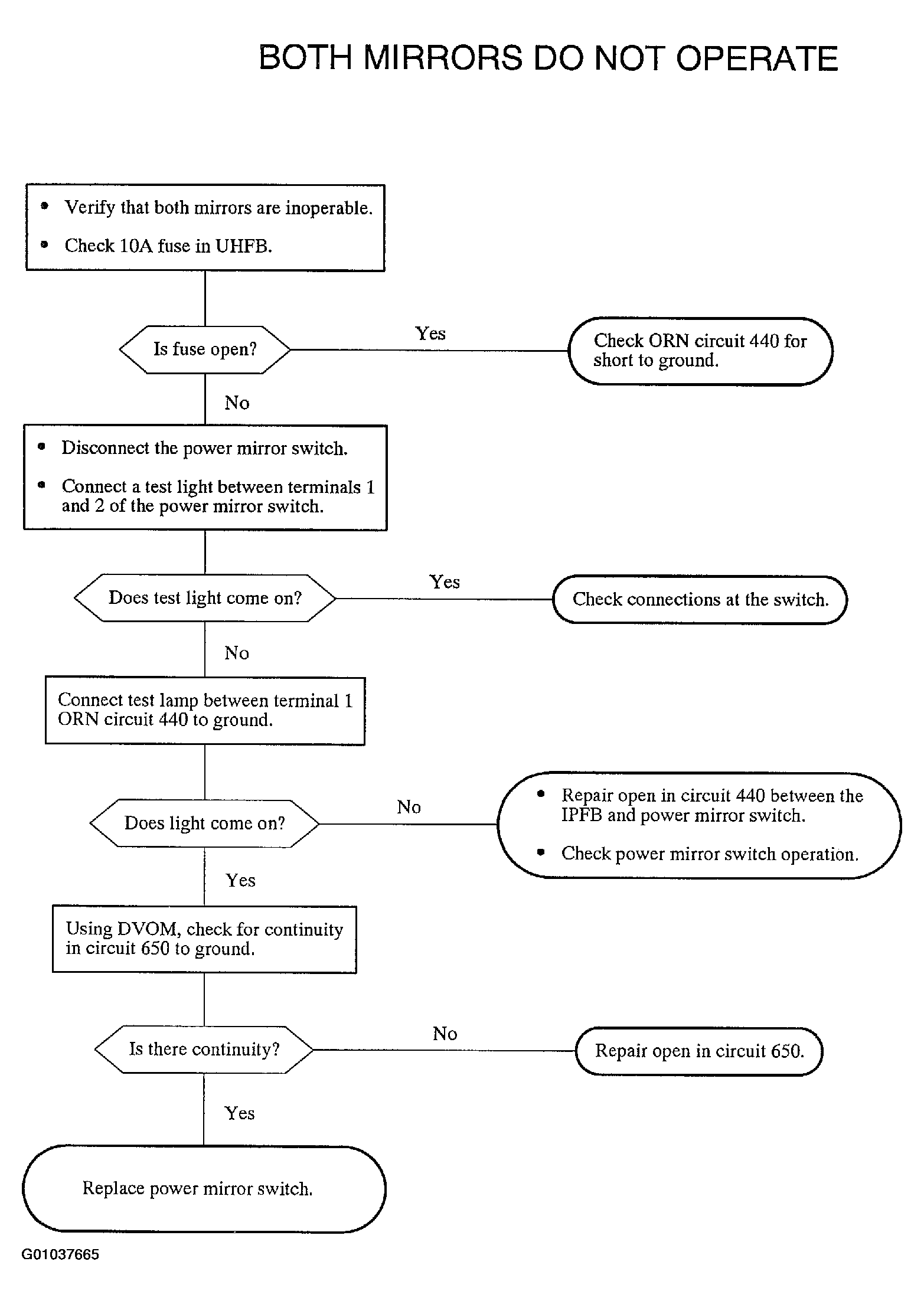

Fig 1: Both Mirrors Do Not Operate, Testing Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
