Home >> Saturn >> 2002 >> Vue 2.2 D, AWD >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Door System, Mirror System & Window System >> Diagnostics >> Power Windows >> Chart 3 - Only Left Front Or Only Right Front Window Inoperable

Chart 3 - Only Left Front Or Only Right Front Window Inoperable

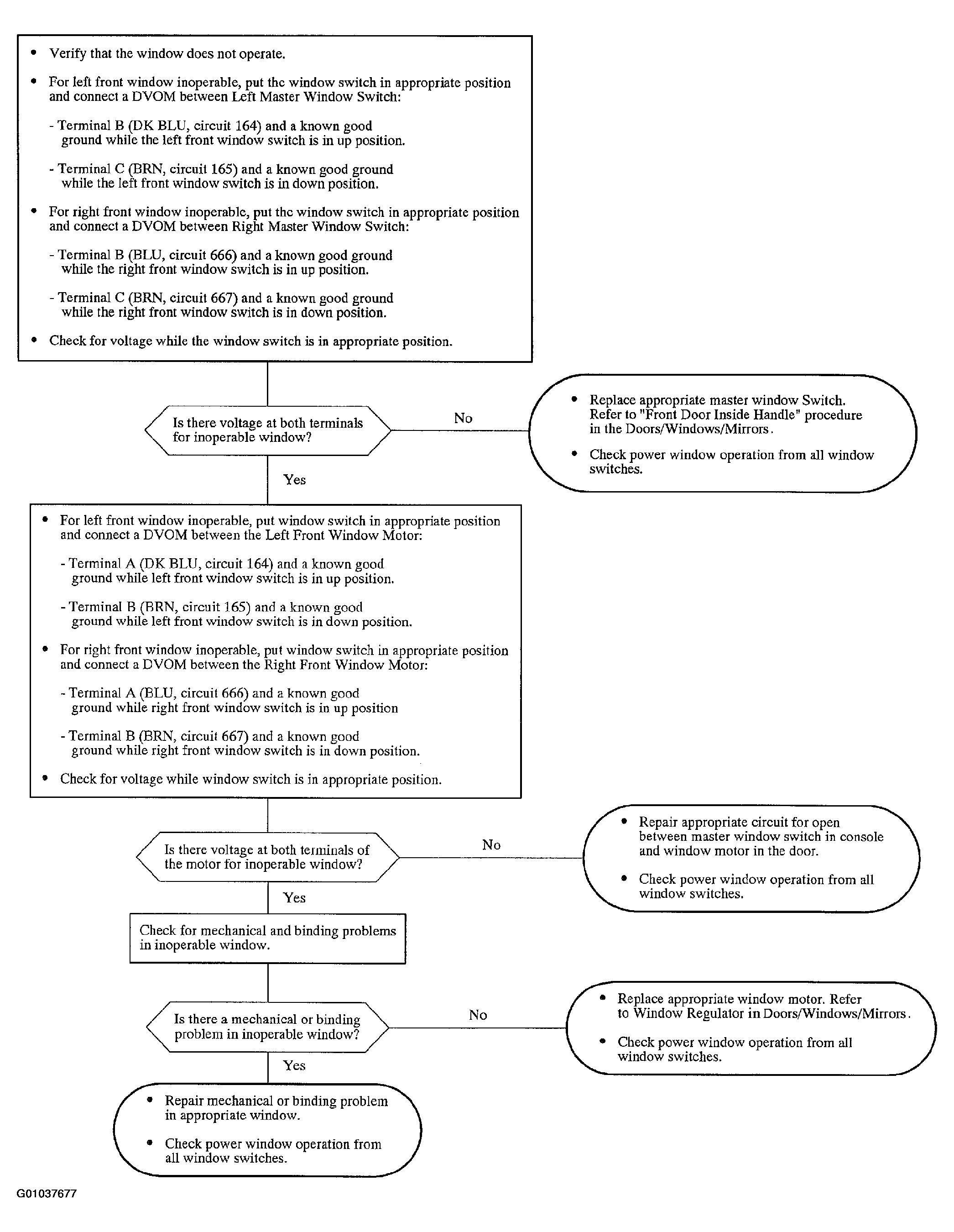

Fig 1: Only Left Front Or Only Right Front Window Inoperable Testing Flow Chart

G01037677

Courtesy of GENERAL MOTORS CORP.
