Diagnostic Codes

The following table lists the Body Control Module (BCM) diagnostic codes:

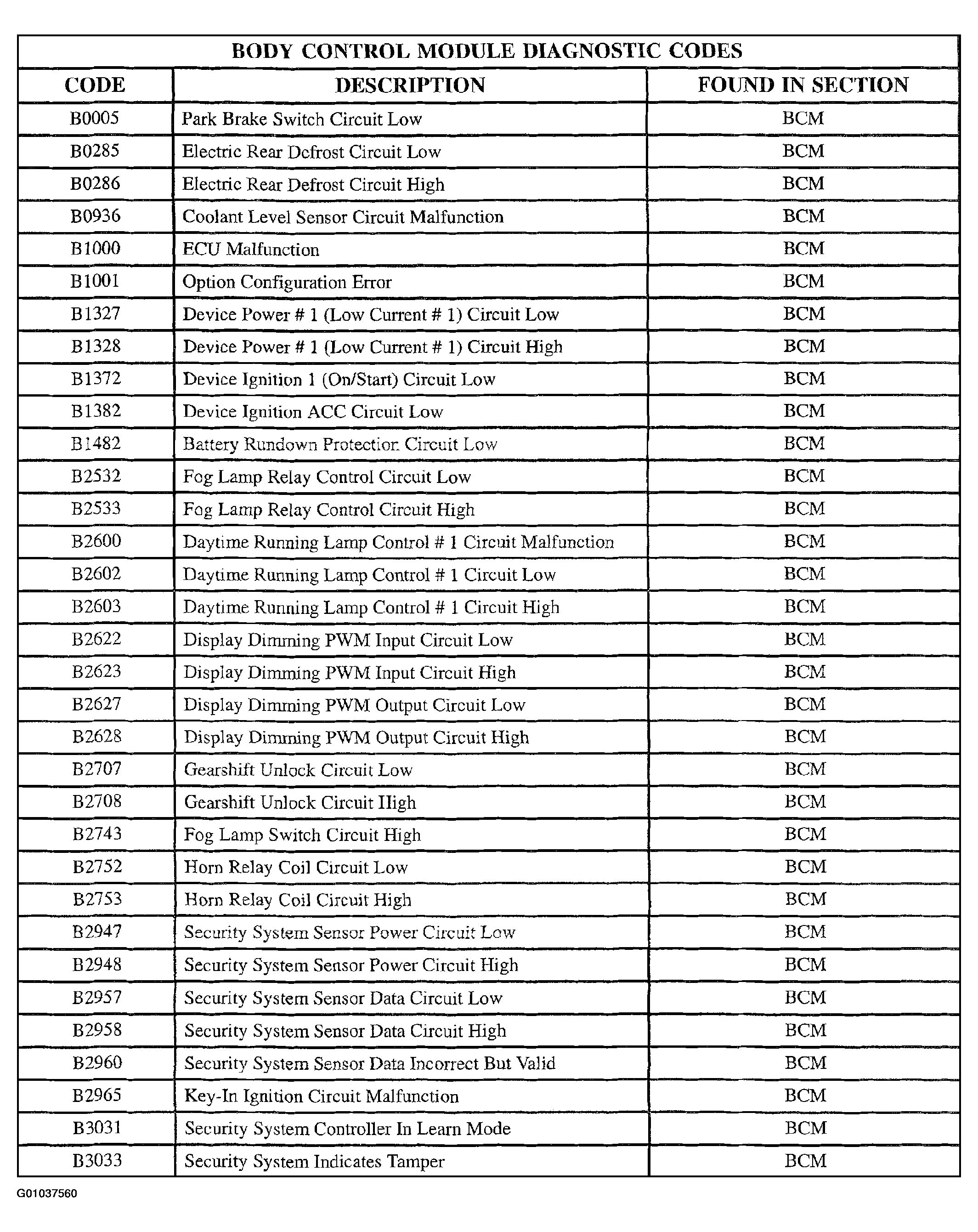

Fig 1: Diagnostic Trouble Code Identification Table (1 of 2)

Courtesy of GENERAL MOTORS CORP.

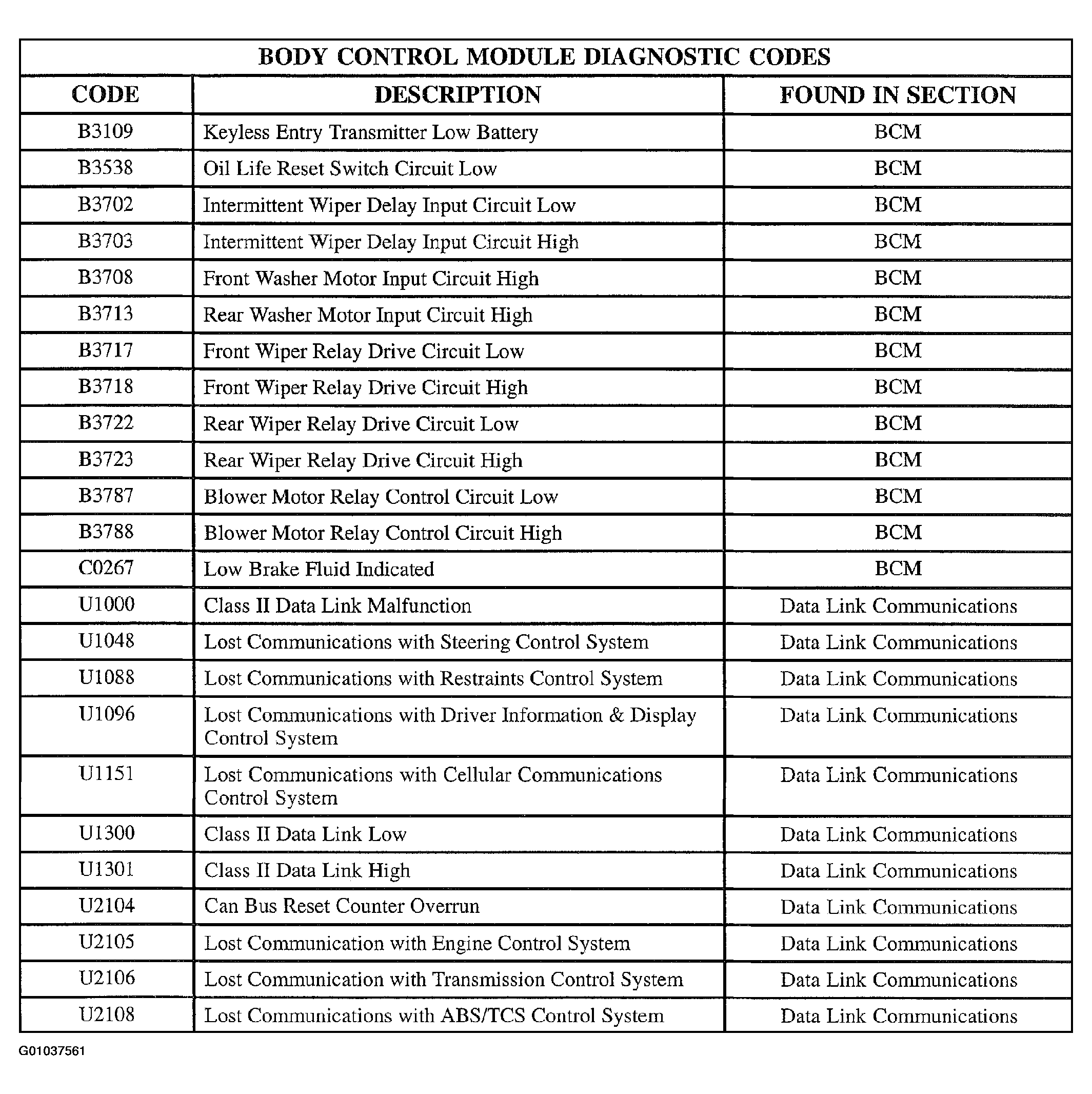

Fig 2: Diagnostic Trouble Code Identification Table (2 of 2)

Courtesy of GENERAL MOTORS CORP.
