BCM Connector Face Views

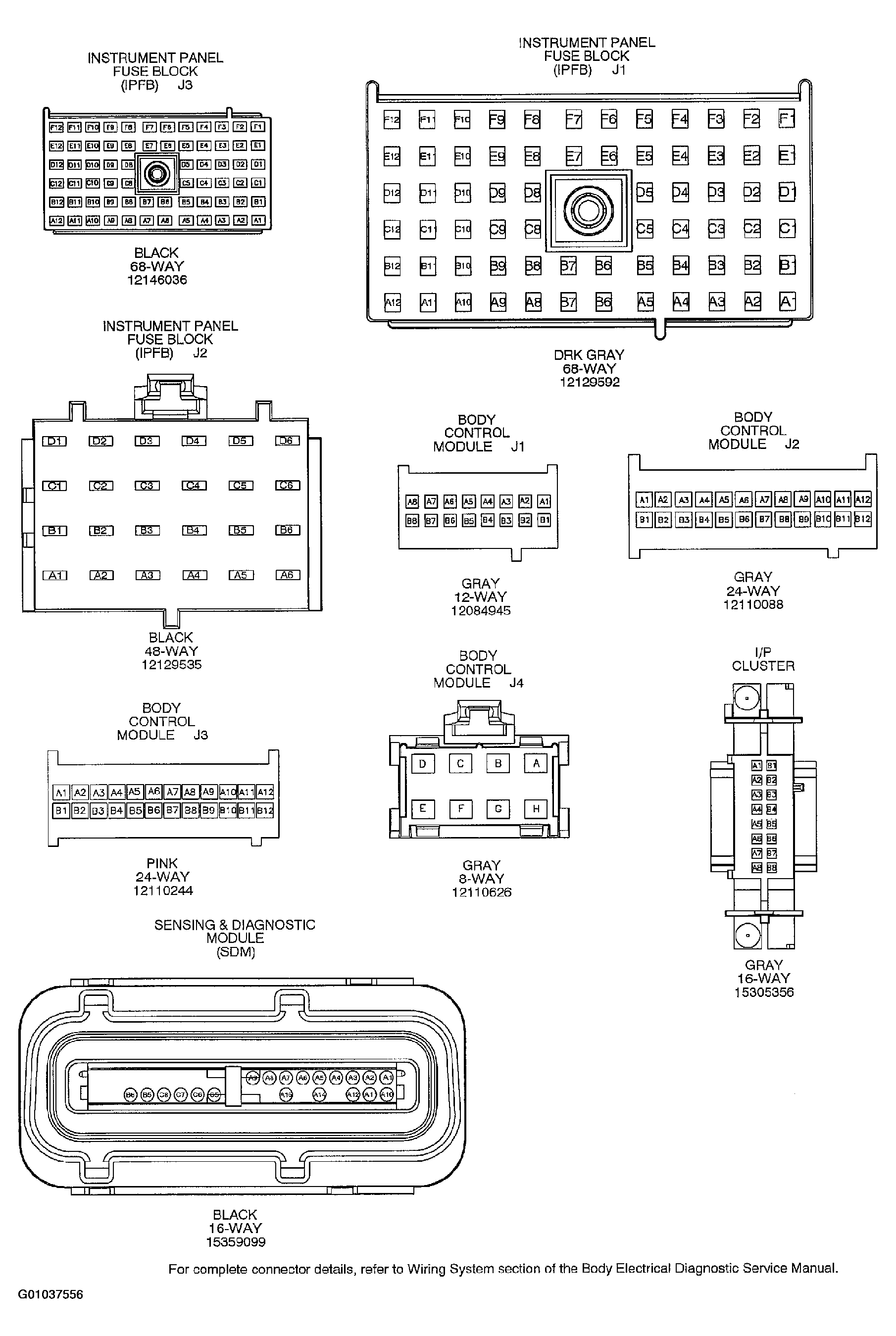

Fig 1: BCM Connector Face Views (1 of 4)
Courtesy of GENERAL MOTORS CORP.

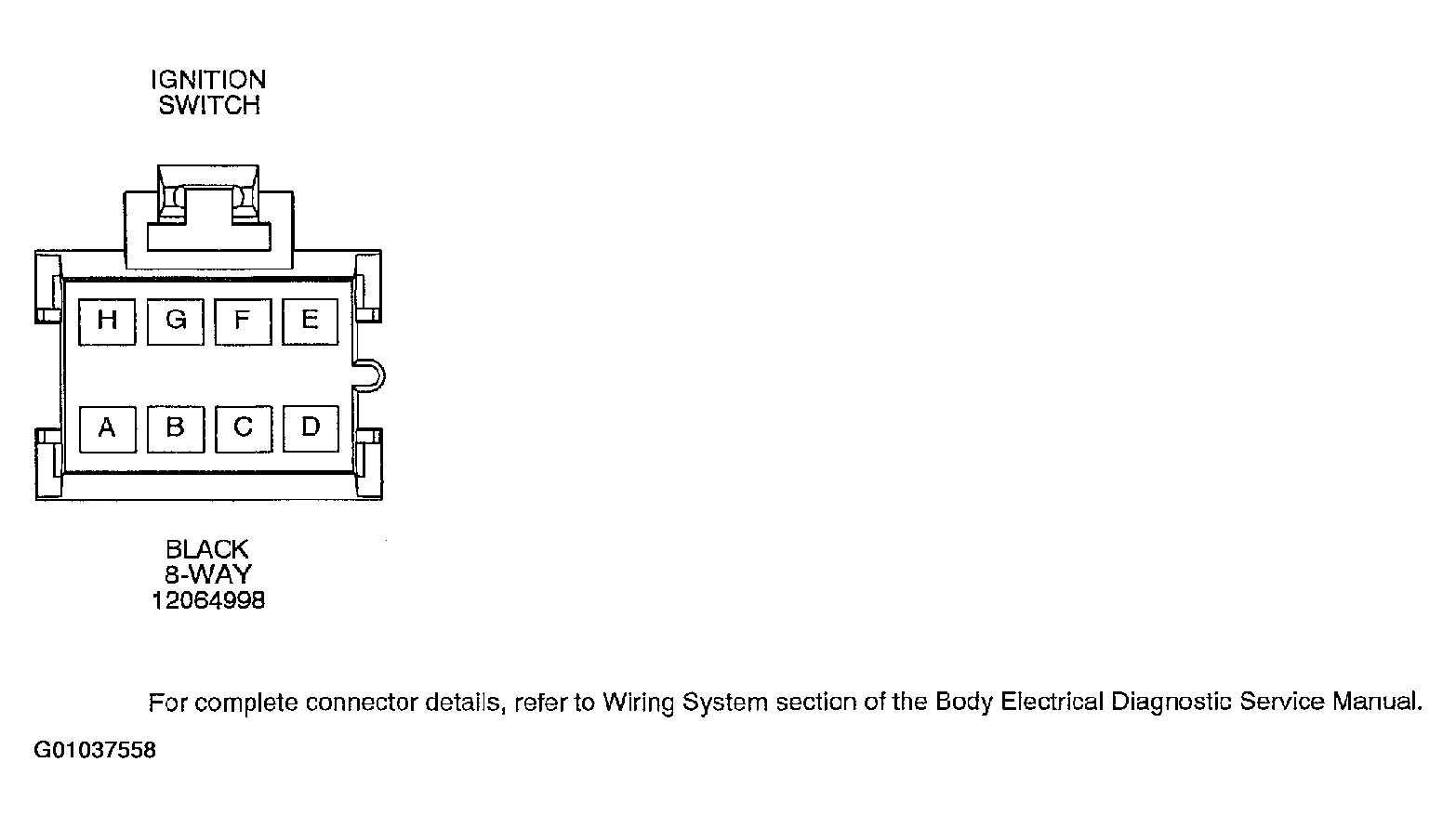

Fig 2: BCM Connector Face Views (2 of 4)
Courtesy of GENERAL MOTORS CORP.

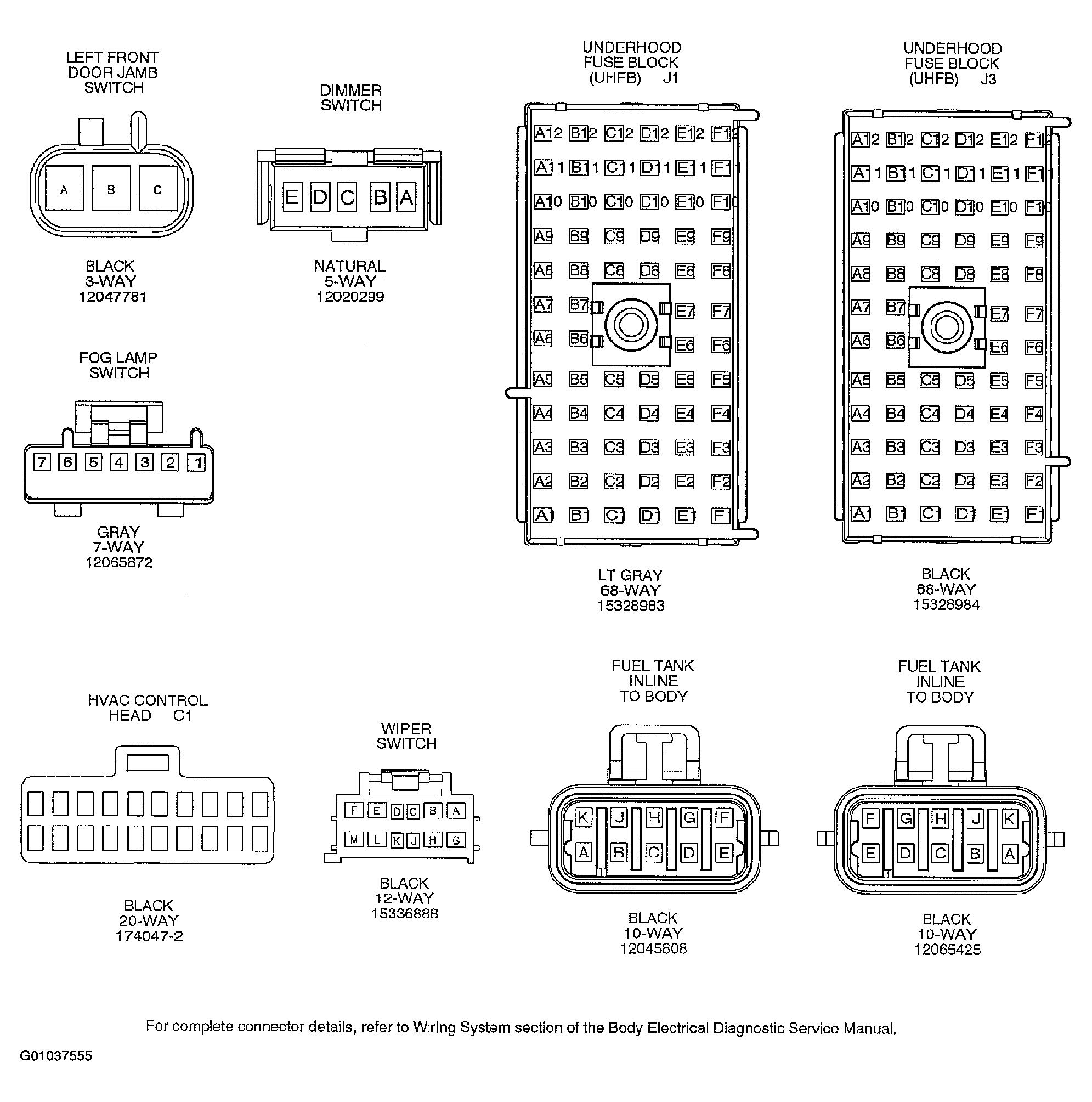

Fig 3: BCM Connector Face Views (3 of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 4: BCM Connector Face Views (4 of 4)
Courtesy of GENERAL MOTORS CORP.
