Disabling System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 Saturn SW2, 2001 Saturn SL2, 2001 Saturn SL1, 2001 Saturn SL, and 2001 Saturn SC2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Accidental air bag deployment is possible. Personal injury may result. Never begin work on or near SIR components until system is disabled. See DISABLING SYSTEM .
NOTE:
When AIR BAG fuse is removed and ignition switch is in RUN position, AIR BAG warning light will be on. This does not indicate a system malfunction.
- Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition switch to LOCK position.
- Remove AIR BAG fuse (10-amp) from instrument panel fuse block, located behind center of dash. Remove Connector Position Assurance (CPA) clip and disconnect driver-side Yellow 2-pin connector at base of steering column. See Fig 1. Locate passenger-side air bag Yellow 2-pin connector located under lower side of instrument panel near fan motor. Remove CPA clip and disconnect passenger-side Yellow 2-pin connector. See Fig 2.

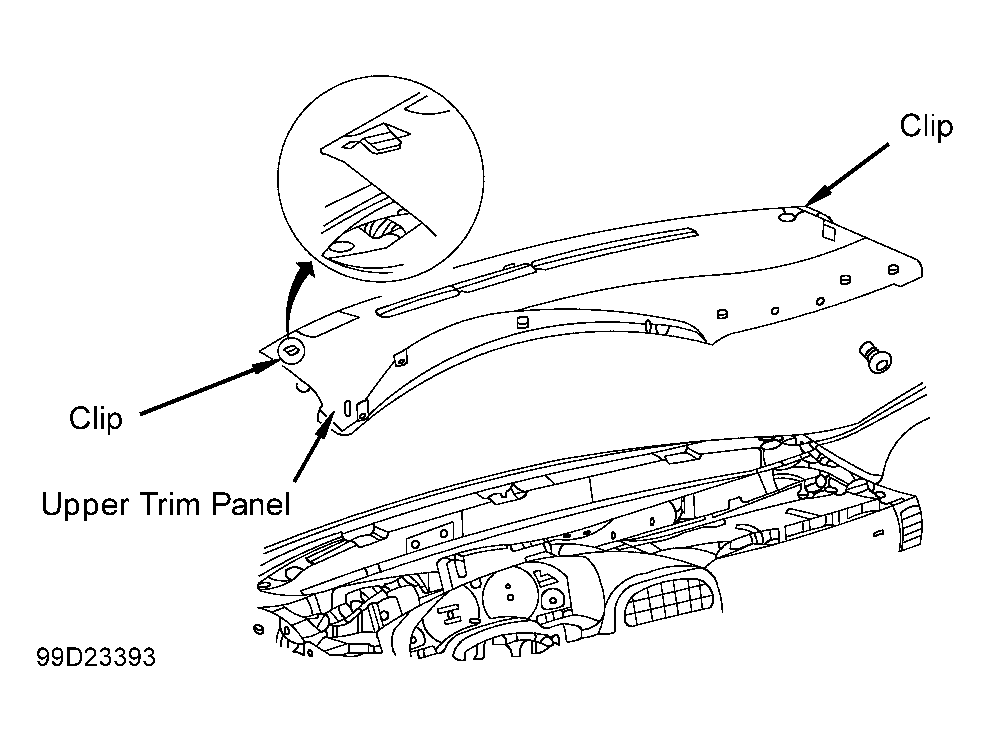

- On models equipped with head impact air bag modules, remove screws from passenger-side instrument panel upper trim panel. See Fig 3. Carefully pull upward on trim panel to disengage clips and Velcro® fasteners. Ensure that Vehicle Identification Number (VIN) plate is not damaged when removing trim panel. Remove CPA clips from driver and passenger head impact air bag module connectors and disconnect connectors.
