Vehicle Speed Sensor: Installation

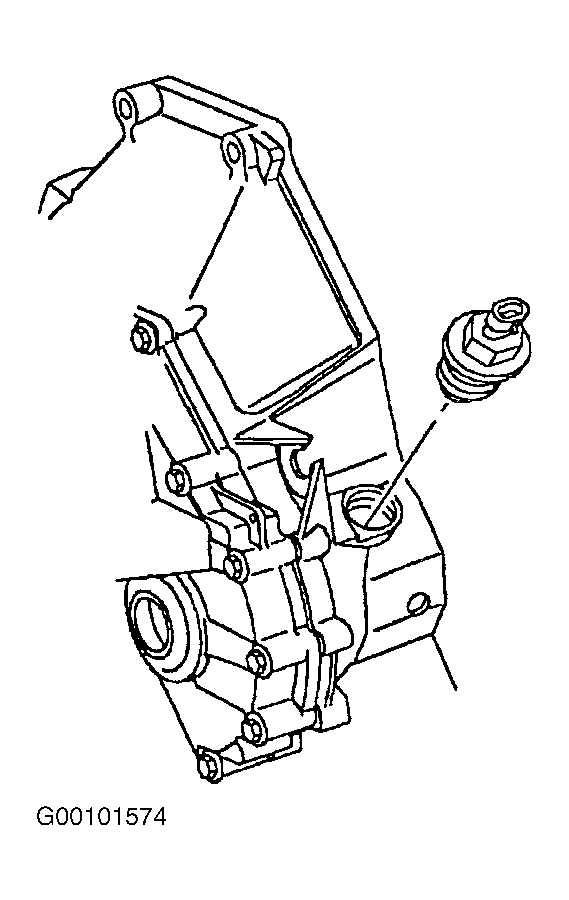

Inspect O-ring for damage and replace if necessary. Clean and lubricate fastener with Saturn Transaxle Fluid. Wipe off excess fluid and install. Install speed sensor. See Figure . Tighten vehicle speed sensor to specification. See TORQUE SPECIFICATIONS  . Connect electrical connector to speed sensor. Push in until a click is heard and pull back to confirm positive engagement. Fill transaxle with appropriate fluid to proper level. See LUBRICATION  .
