Starting And Charging Component Locations

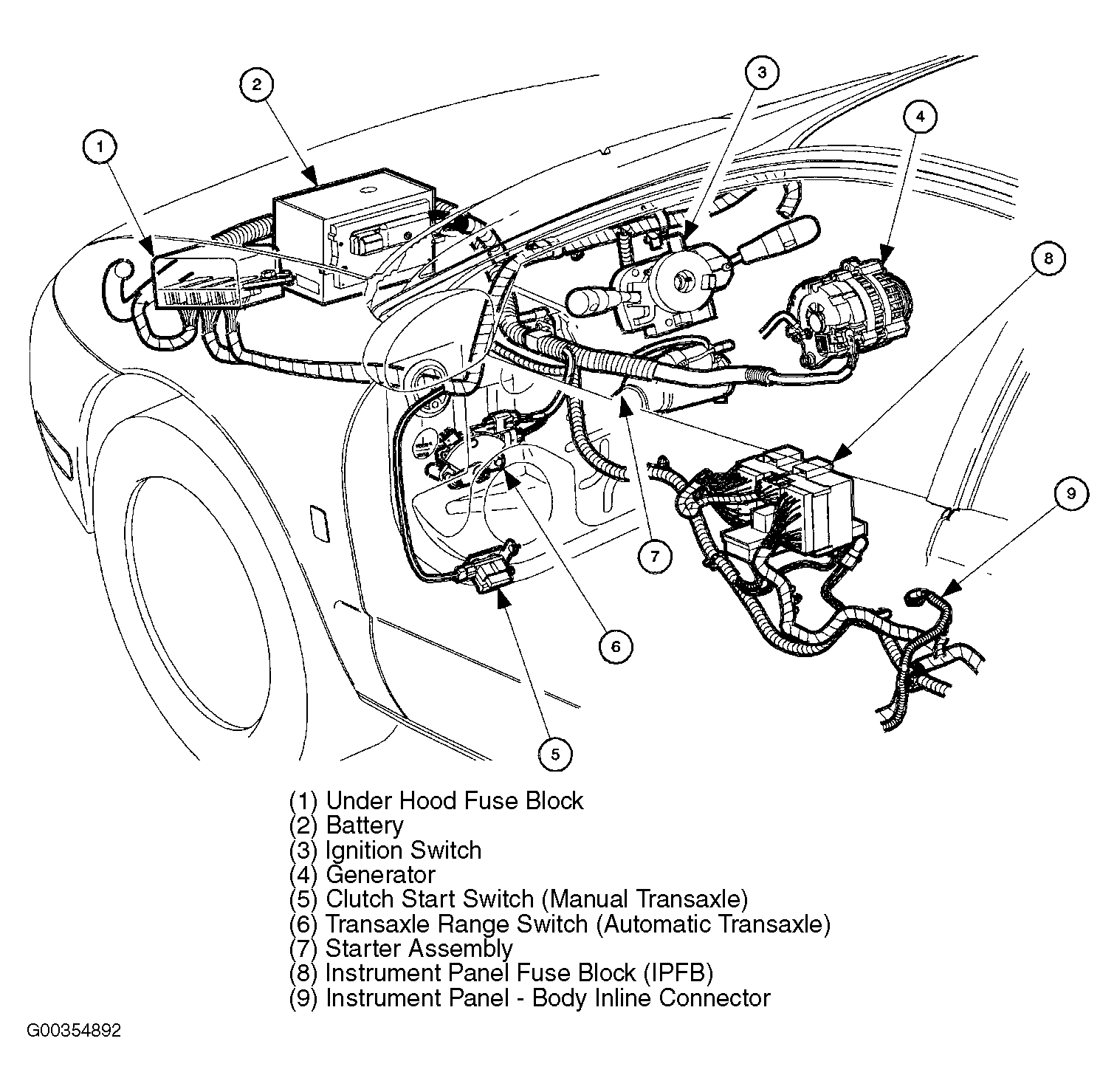

Fig 1: Locating Starting/Charging System Components

G00354892

Courtesy of GENERAL MOTORS CORP.
