Back-Up Light Switch: Installation

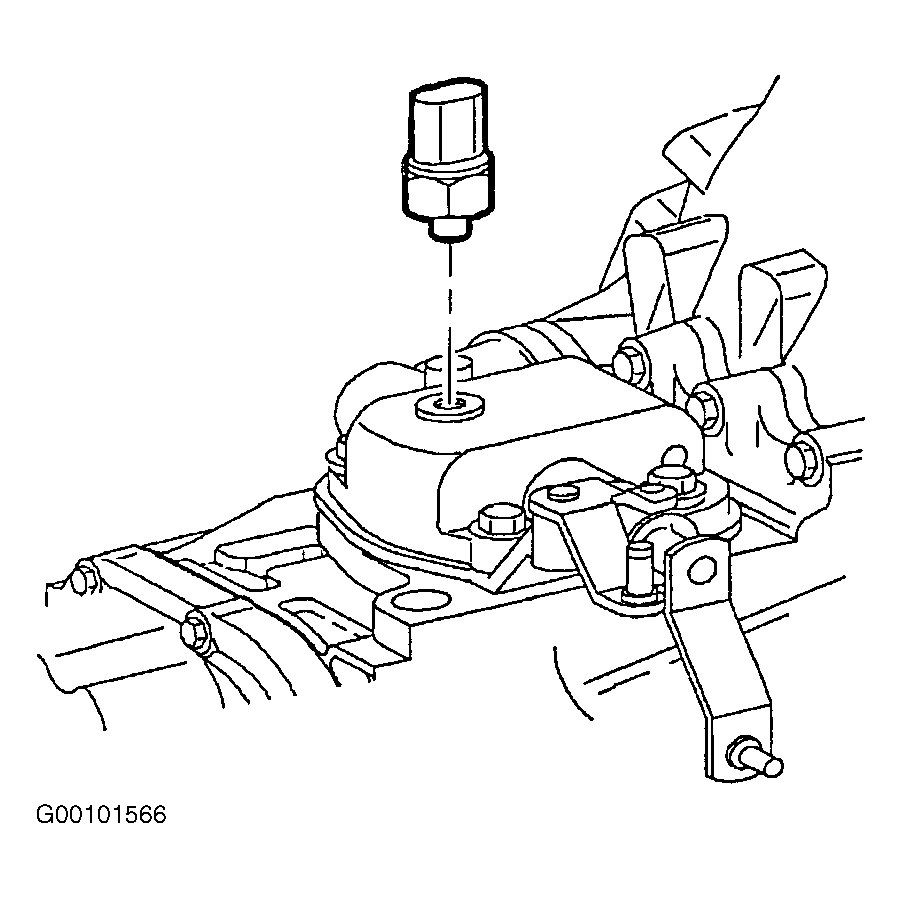

Apply sealant with Teflon (P/N 21485278) or equivalent on threads before installing. Install back-up light switch. See Figure . Tighten back-up light switch to specification. See TORQUE SPECIFICATIONS  . Connect back-up light switch harness connector to switch. Install air cleaner housing and duct assembly. See AIR CLEANER & DUCT ASSEMBLY  .
