Wiper/Washer Component Views

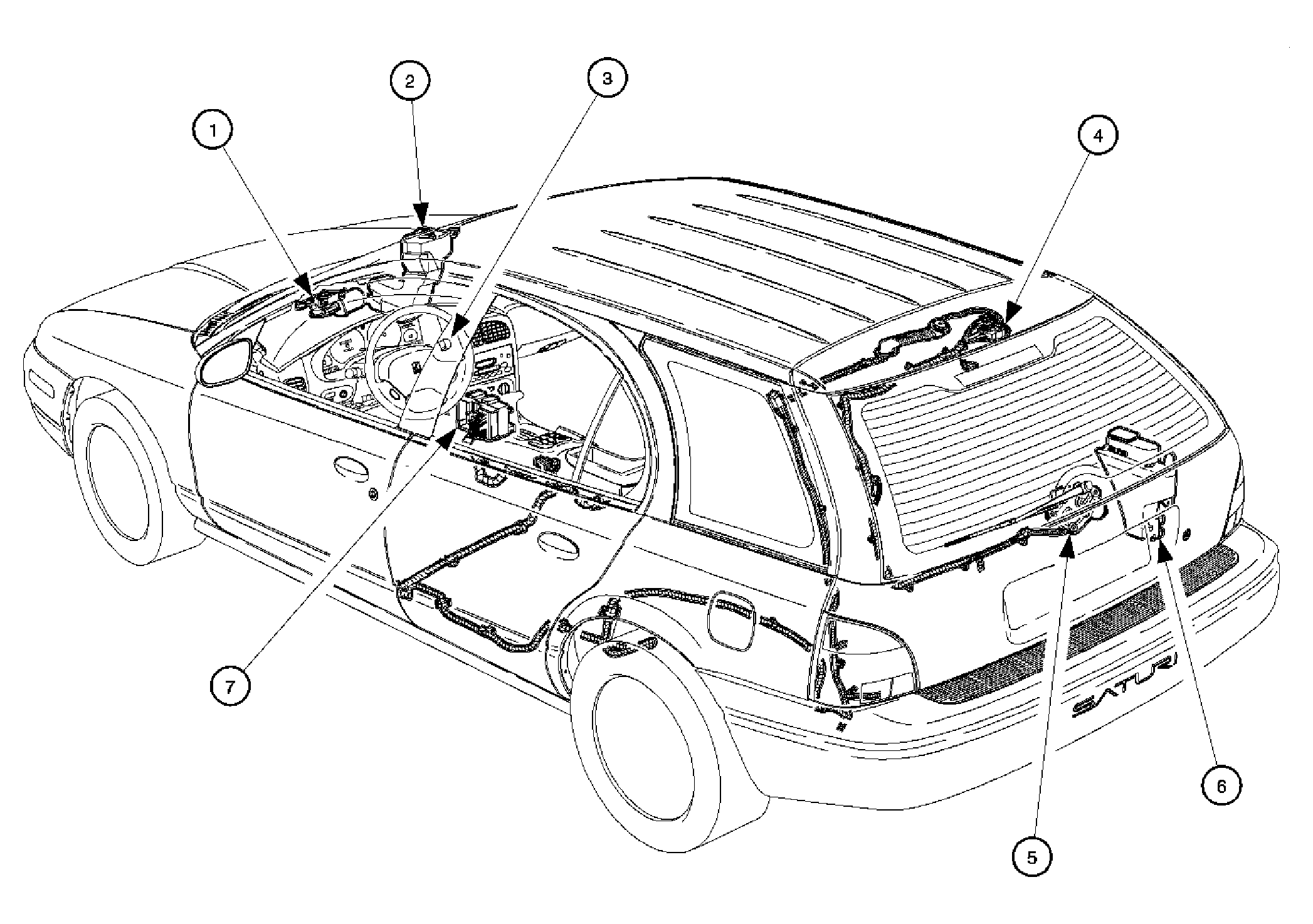

Fig 1: Wiper/Washer Component Views
GM879265Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Wiper Motor
2 Front Fluid Container/Front Washer Pump
3 Wiper Switch
4 Liftgate Inline
5 Rear Wiper Motor (Wagon Only)
6 Rear Fluid Container/Rear Washer Pump (Wagon Only)
7 Instrument Panel Fuse Block (IPFB)
