Rear Wheel Toe

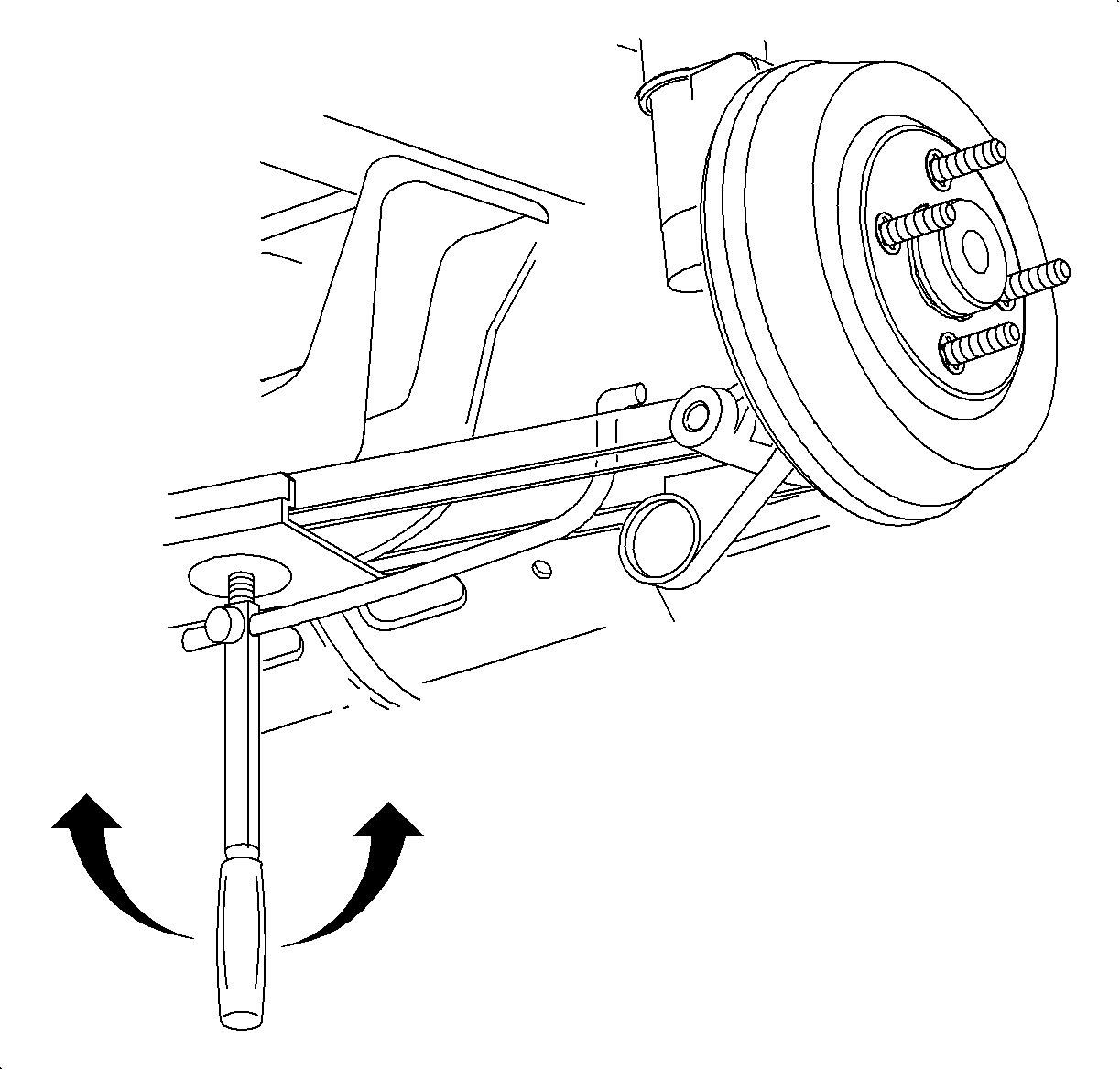

Fig 1: Rearmost Inboard Lateral Link
GM862511Courtesy of GENERAL MOTORS CORP.
  1. Loosen the rearmost inboard lateral link to crossmember fastener on one of the rear wheels.
  2. With the SA9158S  move the lateral link in the direction of necessary toe correction, right side shown, left side opposite).
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the lateral link-to-crossmember fastener.

    Tighten:  Tighten the lateral link-to-crossmember fastener to 120 N.m (89 lb ft).

  4. Inspect the toe and adjust if necessary.
  5. Repeat the procedure for the other rear wheel.
