Removal Procedure

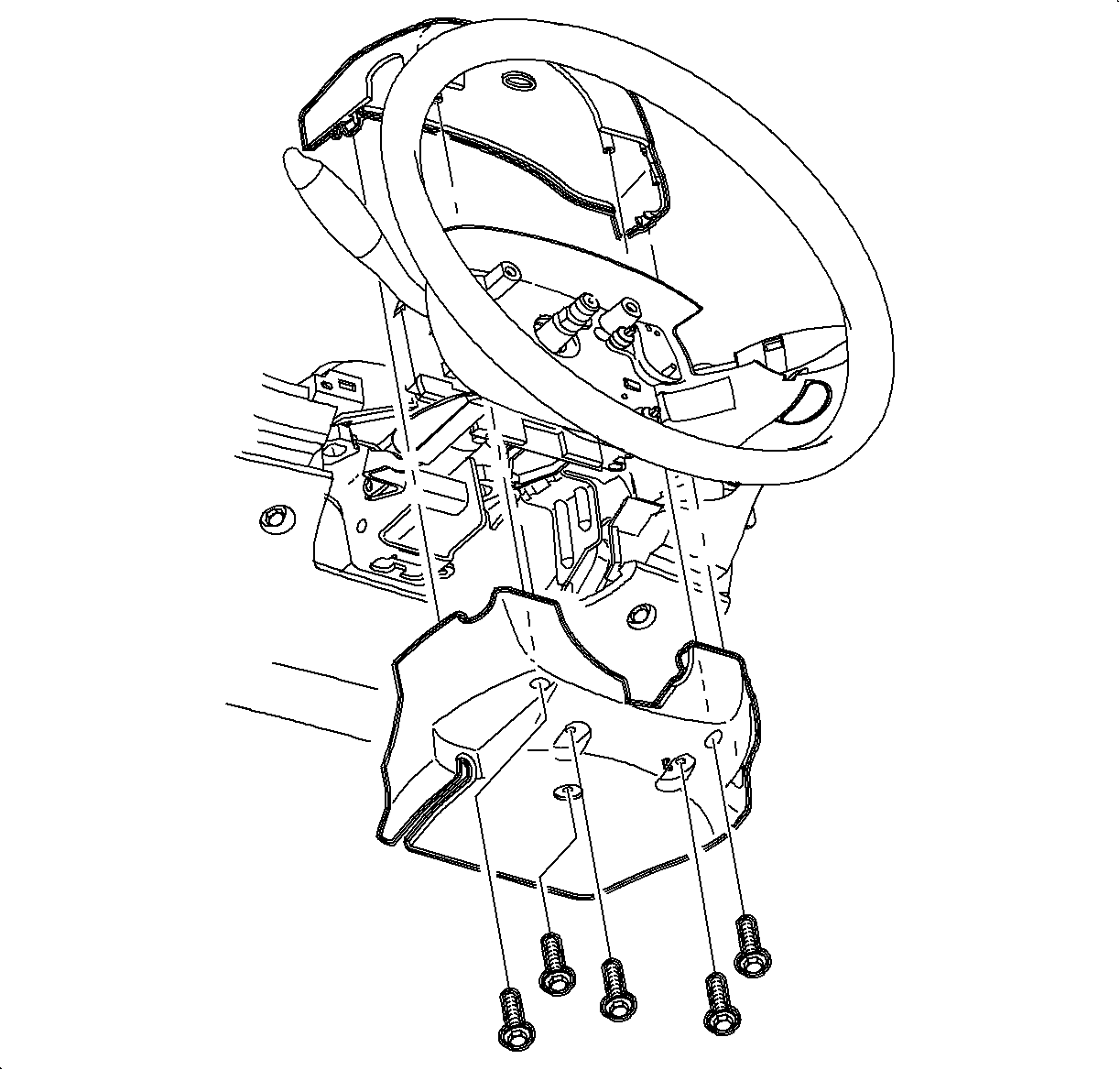

Fig 1: Steering Column Upper And Lower Shroud Panels
GM866908Courtesy of GENERAL MOTORS CORP.
IMPORTANT: LHD shown; RHD similar
    Fig 2: Ignition Lock Bezel
    GM866450Courtesy of GENERAL MOTORS CORP.
  1. Gently pry edges of ignition lock bezel with a blunt tool and separate from lower shroud.
  2. Remove steering column shroud fasteners and remove steering column upper shroud.
  3. Remove steering column lower shroud.
