Installation Procedure

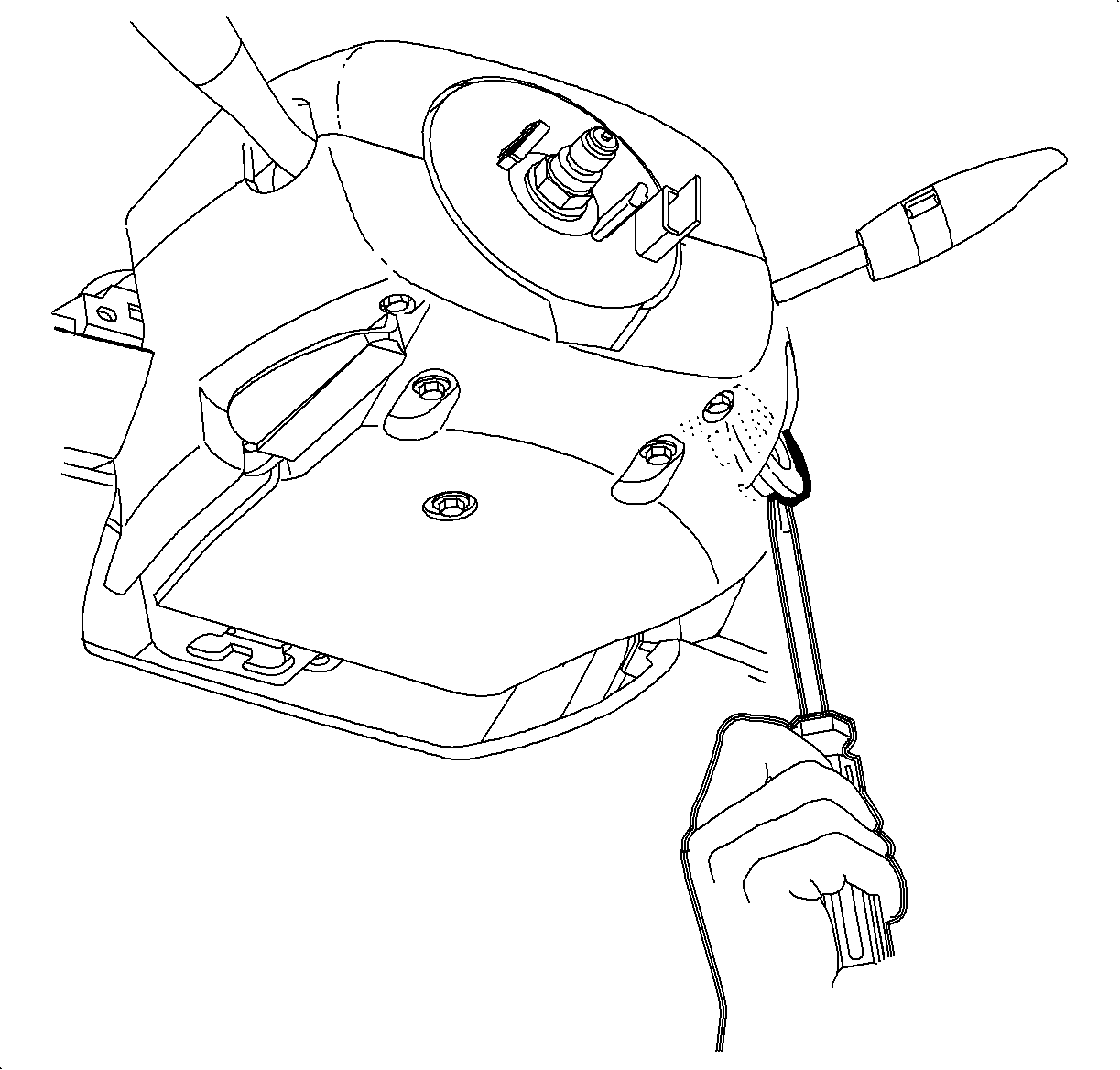

    Fig 1: Ignition Lock Bezel
    GM866450Courtesy of GENERAL MOTORS CORP.
  1. Position steering column lower shroud to steering column.
  2. Secure steering column upper and lower shrouds with shroud fasteners.

    Tighten:  Tighten Steering Column Shroud Fasteners 1.5 N.m (13 lbs in).

  3. Install ignition bezel.
    1. Align peg of bezel with the cut-out in lower shroud.
    2. Snap into place.
