Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

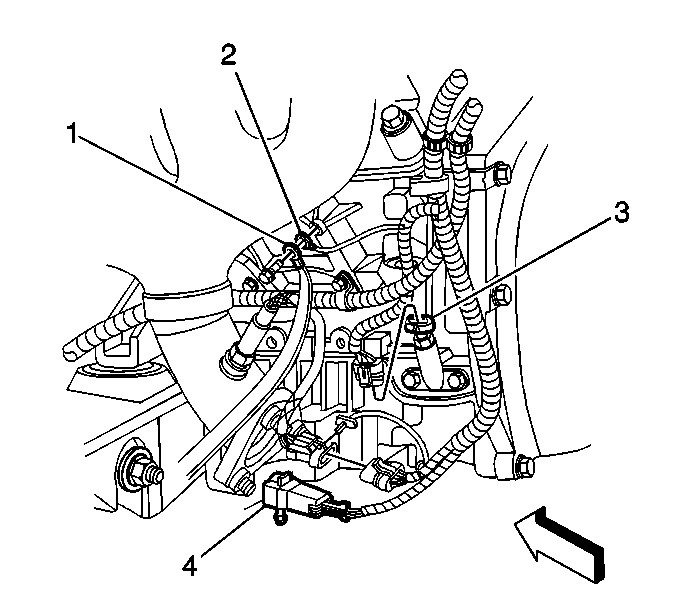

    Fig 1: Ground Strap Bolt & Engine Harness Ground
    GM651886Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Position the ground strap terminal (1) and engine harness ground to the block.
  2. Install the ground strap bolt.

    Tighten:  Tighten the ground strap bolt to 32 N.m (24 lb ft).

    3. Fig 2: Ground Strap Terminal At Frame Stud
    GM675395Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle.
  4. Install the ground strap terminal and nut to the stud.

    Tighten:  Tighten the ground strap nut to 8 N.m (71 lb in).
