Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radio fixed antenna mast to the radio fixed antenna.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Using the tool taped previously, tighten the antenna mast.

    Tighten

    Tighten the radio fixed antenna mast to 5 N.m (44 lb in).

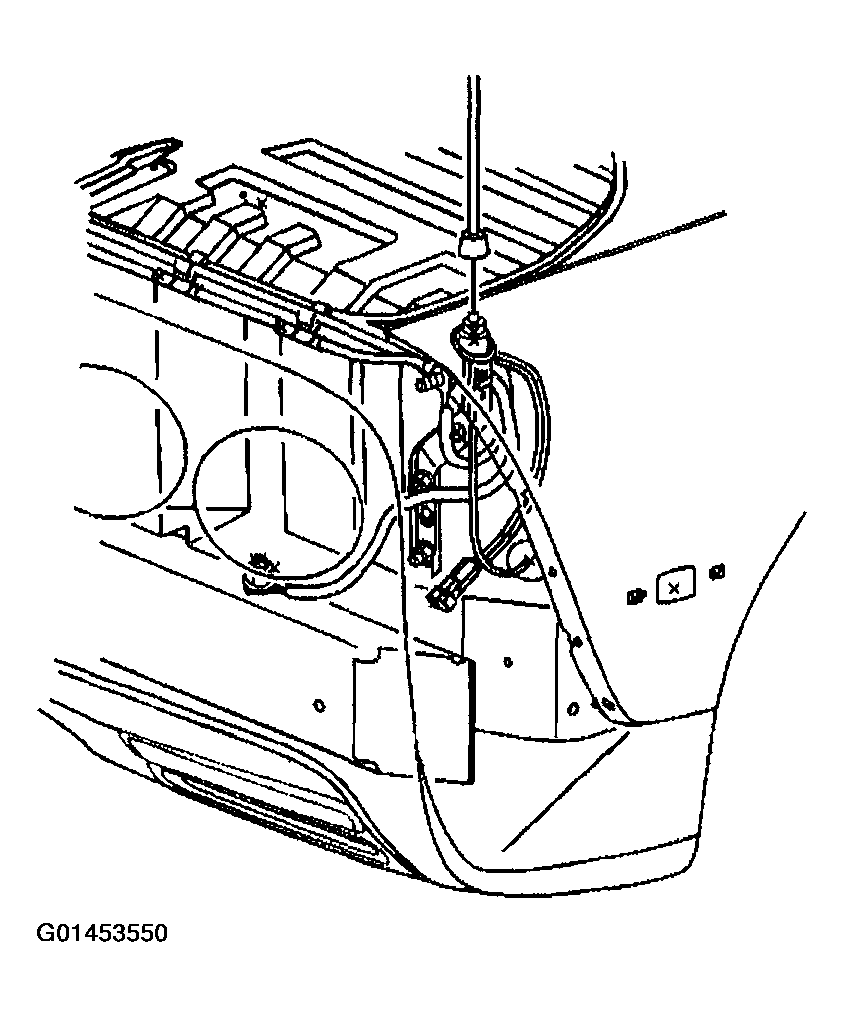

    Fig 1: Installing Radio Fixed Antenna Mast To Radio Fixed Antenna
    G01453550Courtesy of GENERAL MOTORS CORP.
