Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb into the socket.

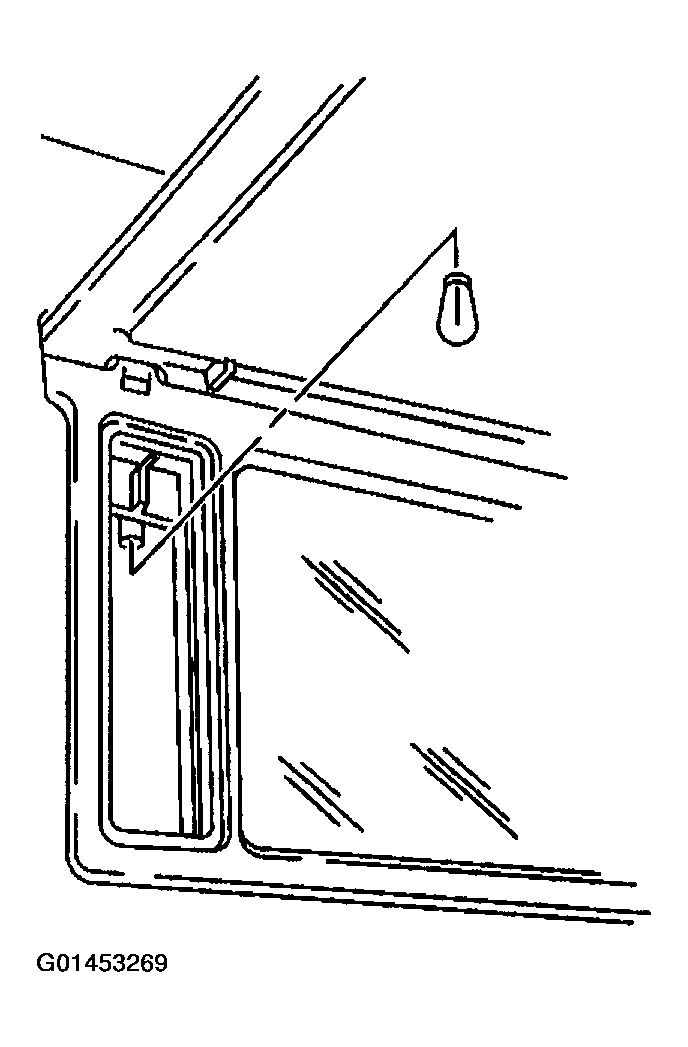

Fig 1: Installing Bulb Into Socket
Courtesy of GENERAL MOTORS CORP.
Position the vanity mirror lamp lens to the sunshade.
Align the lens tabs into the housing slots inserting the upper edge of the lens first.

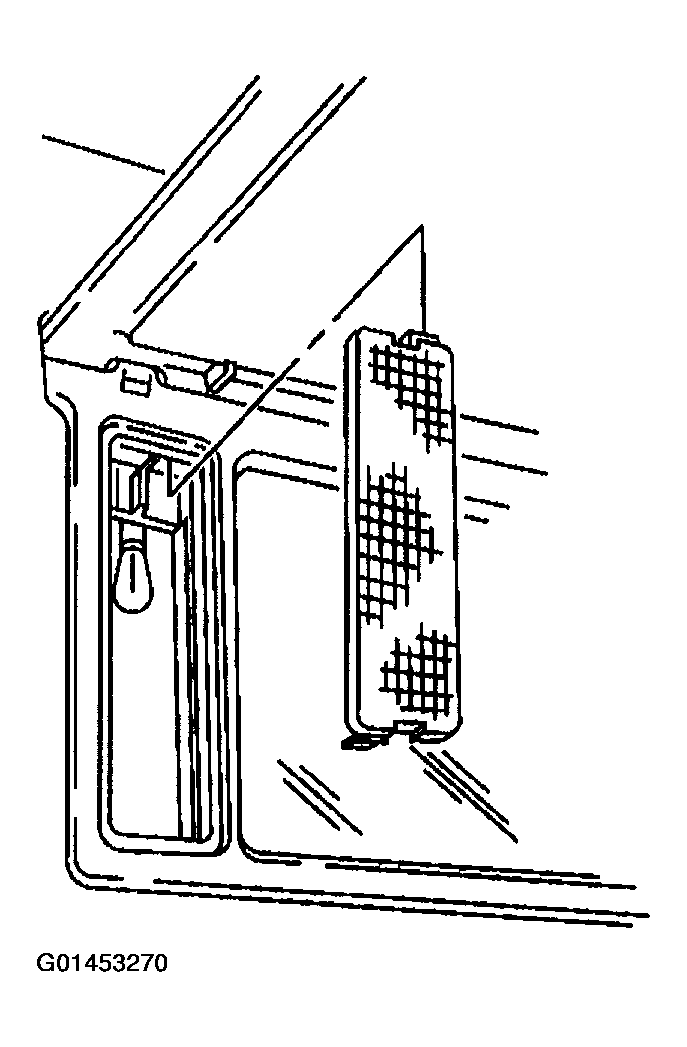

Fig 2: Positioning Vanity Mirror Lamp Lens To Sunshade
Courtesy of GENERAL MOTORS CORP.
Insert a small flat-bladed screwdriver at the lower edge of the vanity mirror lamp lens then gently pry up to fully install the lens.
Close the lamp cover door and raise the sunshade.

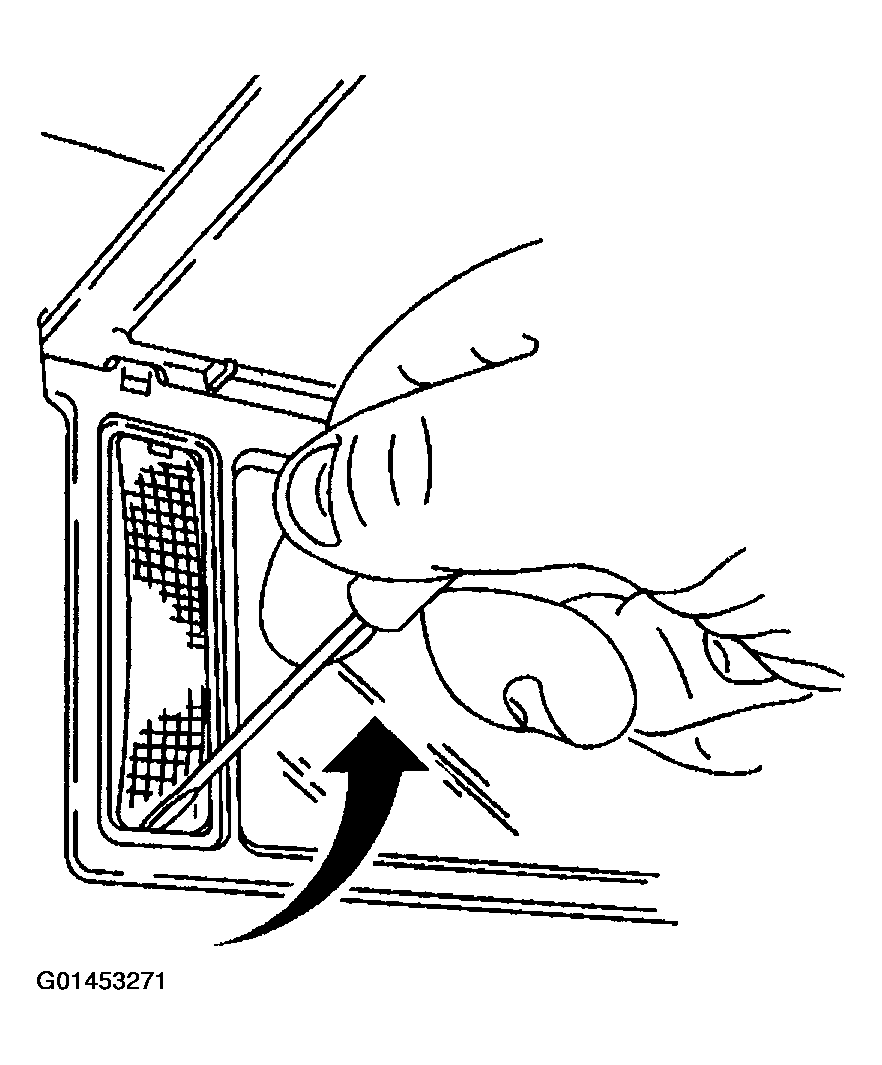

Fig 3: Inserting Small Flat-Bladed Screwdriver To Installing Lens
Courtesy of GENERAL MOTORS CORP.
