Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nearest inner tail lamp. Refer to TAIL LAMP REPLACEMENT  .

    Access the license lamp through the tail lamp opening.

  2. Remove the socket from the license lamp assembly.

    Rotate the socket counterclockwise to disengage the locking tabs.

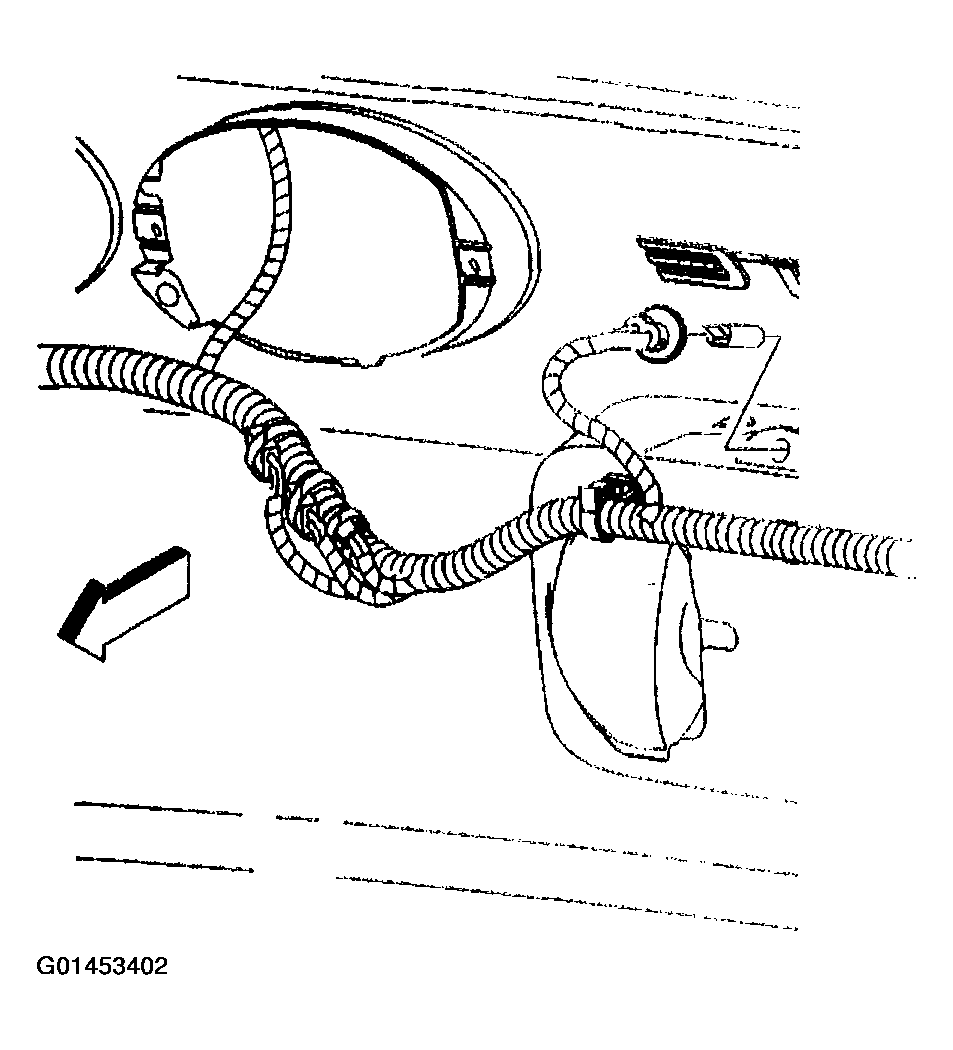

    Fig 1: Removing Socket From License Lamp Assembly
    G01453402Courtesy of GENERAL MOTORS CORP.
  3. Reach through the tail lamp opening and hold the license lamp assembly in place, while removing the screws from the lamp assembly.
  4. Remove the license lamp assembly through the tail lamp opening.

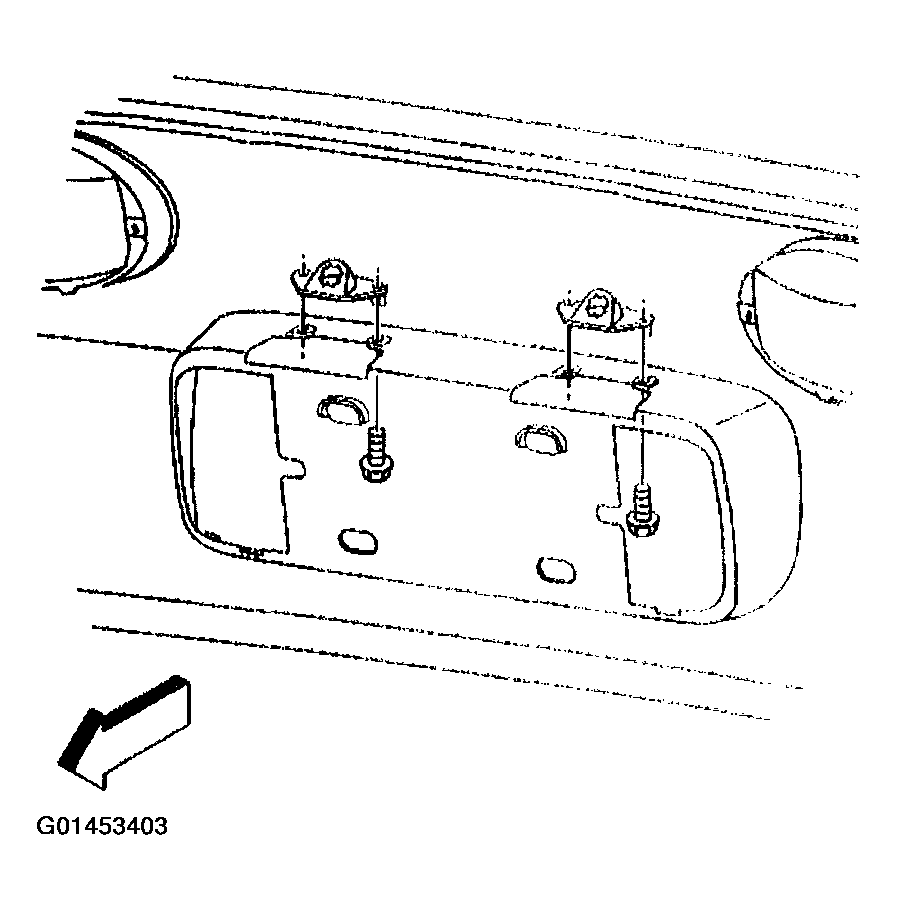

    Fig 2: Removing License Lamp Assembly Through Tail Lamp Opening
    G01453403Courtesy of GENERAL MOTORS CORP.
