Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp opening door. Refer to HEADLAMP OPENING DOOR REPLACEMENT .
  2. Mark the location of the headlamp intermediate bracket.
  3. Remove the headlamp intermediate bracket retaining screws.
  4. Remove the headlamp intermediate bracket from the headlamp.

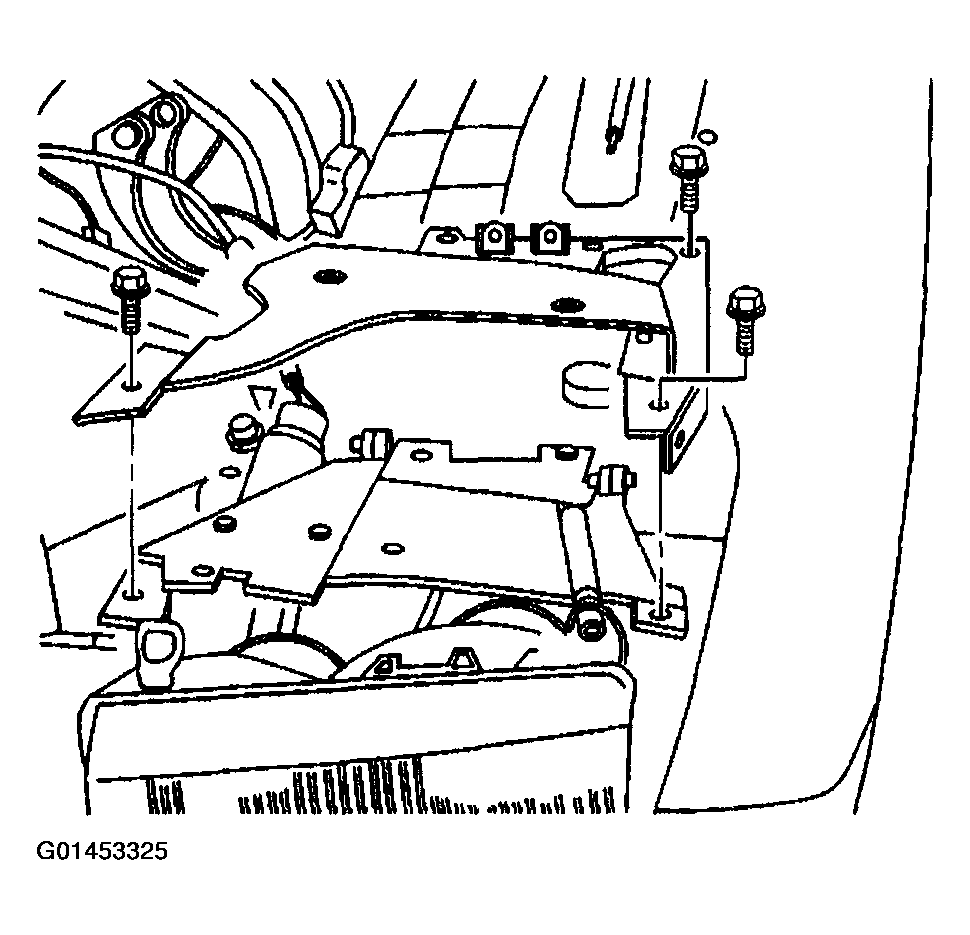

    Fig 1: Headlamp Intermediate Bracket Retaining Screws
    G01453325Courtesy of GENERAL MOTORS CORP.
