Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nearest inner tail lamp. Refer to TAIL LAMP REPLACEMENT  .

    Access the backup lamp through the tail lamp opening.

  2. Remove the backup lamp socket from the backup lamp assembly.

    Rotate the socket counterclockwise to disengage the locking tabs.

  3. Remove the bulb from the socket.

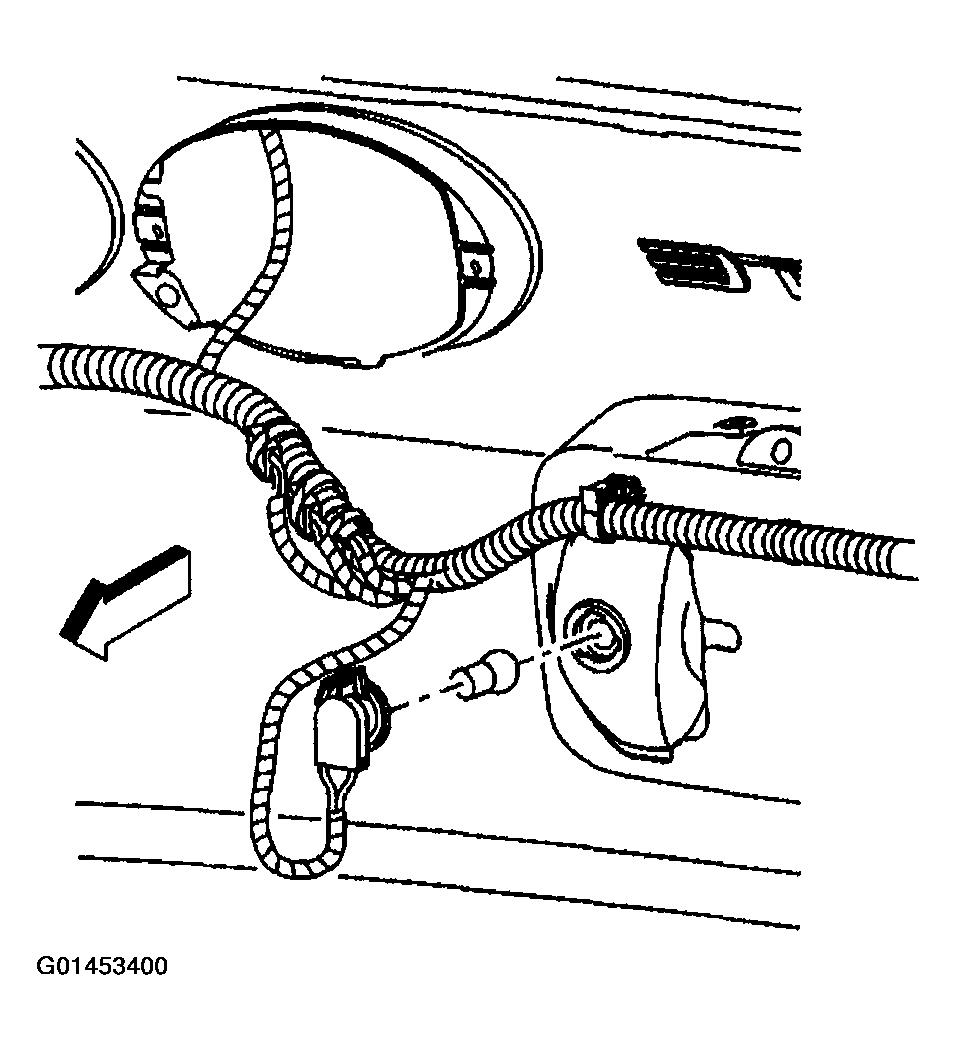

    Fig 1: Removing Bulb From Socket
    G01453400Courtesy of GENERAL MOTORS CORP.
