Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radio. Refer to Radio Replacement (w/o UM8)  or Radio Replacement (w UM8)  .
  2. Remove the right side windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR .
  3. Remove the upper instrument panel trim pad. Refer to TRIM PAD REPLACEMENT -- IP UPPER .
  4. Disconnect the antenna coaxial cable from the radio cavity by sliding the cable connection upwards out of the retainer.
  5. Remove the remaining cable clips (1) from the instrument panel support.
  6. Disconnect the coaxial cable connector (2).
  7. Remove the antenna extension cable from the vehicle.

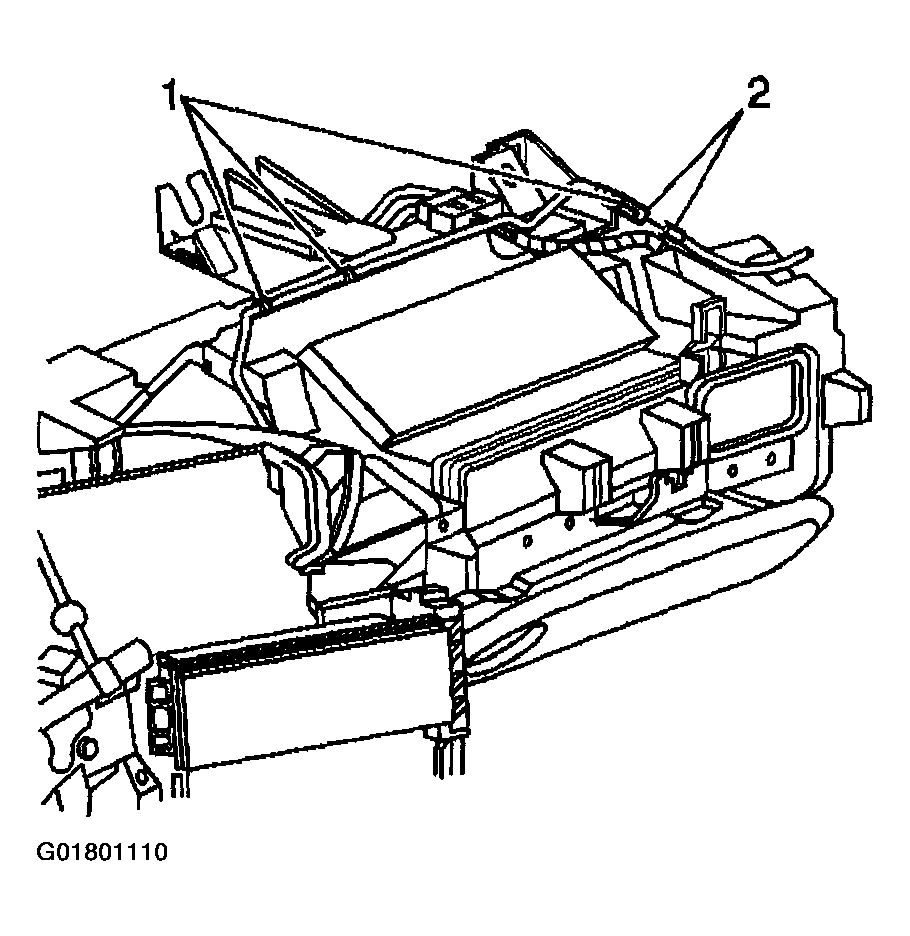

    Fig 1: Removing Antenna Extension Cable
    G01801110Courtesy of GENERAL MOTORS CORP.
