Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tail lamp bulb into the socket.
  2. Install the tail lamp socket into the tail lamp housing assembly (3).
  3. Turn the tail lamp socket clockwise 1/4 turn in order to secure the socket to the tail lamp housing assembly (3).
  4. Install the tail lamp assembly (3) to the vehicle. Refer to Tail Lamp Replacement . .
  5. Install the rear compartment side trim panel. Refer to COMPARTMENT TRIM PANEL REPLACEMENT--REAR .
  6. Close the rear compartment lid.

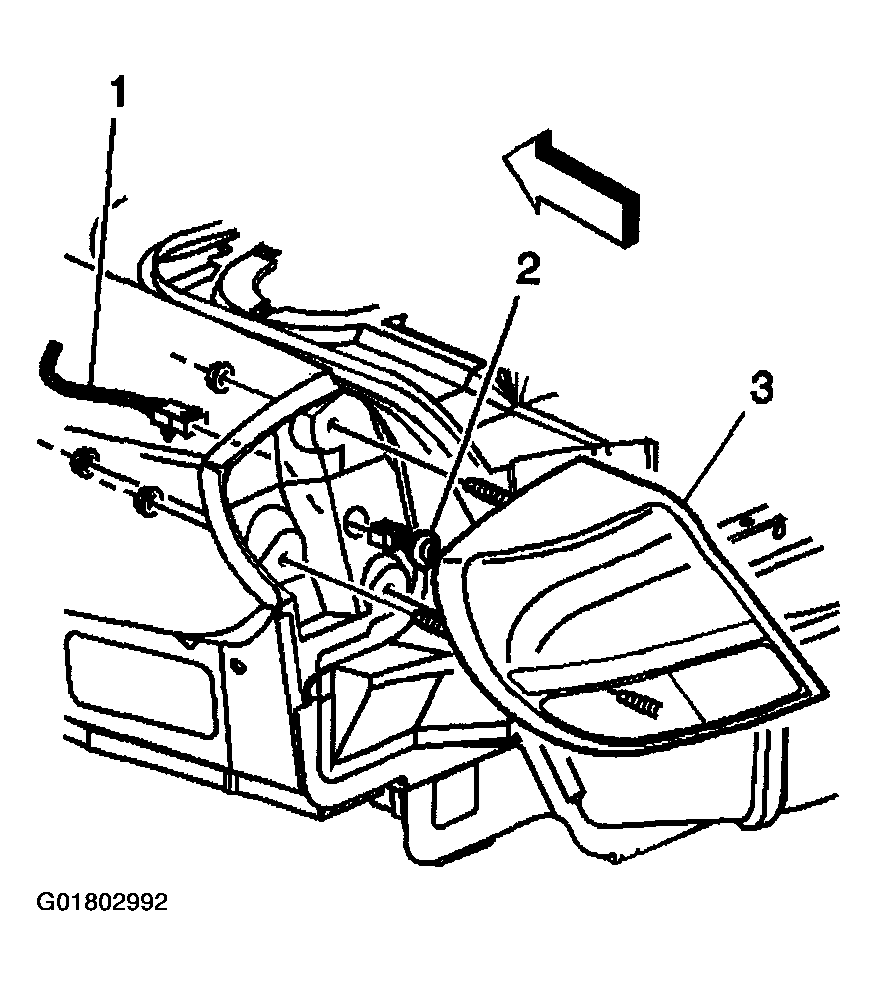

    Fig 1: Installing Tail Lamp Bulb
    G01802992Courtesy of GENERAL MOTORS CORP.
